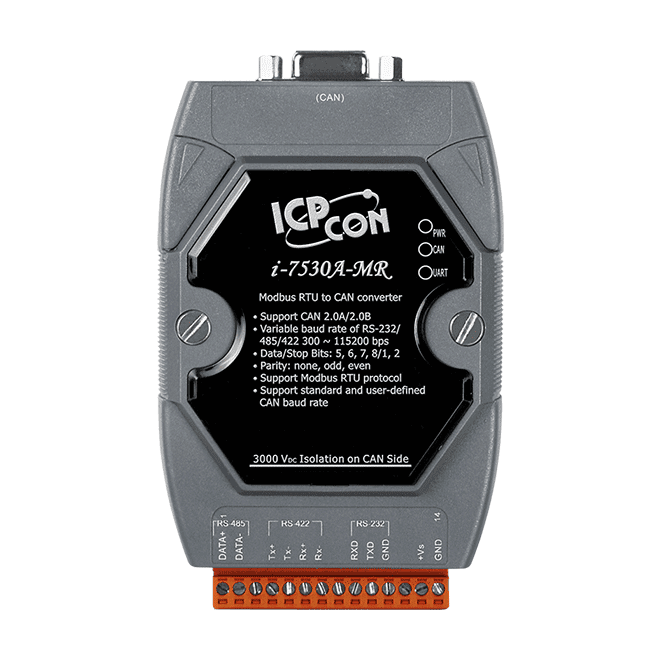

I-7530A-MR-G Modbus RTU to CAN Converter, RS-232/422/485 to CAN Bus
Converts Modbus RTU traffic on an RS-232, RS-422 or RS-485 port to CAN bus, so PLCs, HMIs and SCADA systems can read and write CAN devices without a native CAN interface.
- Modbus RTU slave access to CAN messages using function codes 0x03, 0x04, 0x06 and 0x10
- Single serial port selectable as RS-232, RS-422 or RS-485, with baud rates from 300 to 460800 bps
- CAN 2.0A and CAN 2.0B to ISO-11898-2, 10 k to 1 M bps, with acceptance filter configuration
- Jumper-selectable 120Ω CAN terminal resistor
- Modbus Master function supported in firmware v1.11 or later
- Hardware watchdog, 128-frame CAN buffer and 256-byte UART buffer
3 043,83 kr per stk.
| 1–9 stk. | 3 043,83 kr | |
|---|---|---|
| 10–30 stk. | 2 950,33 kr | −3 % |
| 31+ stk. | 2 888,00 kr | −5 % |
Produktinformasjon "I-7530A-MR-G Modbus RTU to CAN Converter, RS-232/422/485 to CAN Bus"
The I-7530A-MR-G is a Modbus RTU to CAN converter for control systems that have a serial Modbus RTU master but no CAN interface. It bridges the two networks so that standard Modbus function codes can access CAN devices, which is useful when sensors or actuators are only available with CAN connectivity.
In Modbus Slave mode, the converter answers function codes 0x03, 0x04, 0x06 and 0x10 to read or write CAN messages. Its firmware also reserves dedicated memory for up to 100 kinds of urgent CAN messages that must be handled immediately, alongside the normal receive buffer. Modbus Master mode, which lets the converter poll several Modbus RTU slaves and relay data to CAN devices, requires firmware v1.11 or later.
Besides Modbus, the unit can convert CAN messages to and from ASCII command strings, or work in pair-connection mode to pass data transparently between two RS-232, RS-422 or RS-485 devices over CAN bus. The serial ports cannot be used at the same time. A utility tool is provided for configuration and CAN communication testing, and firmware can be updated via RS-232.
Applications
- Connecting CAN-only sensors and actuators to PLCs, HMIs and SCADA systems that speak Modbus RTU
- Transparent serial-to-serial links between RS-232, RS-422 or RS-485 devices over a CAN network
- Monitoring and control in industrial automation where CAN devices must be reached from a Modbus RTU master
| Product type: | Converter |
|---|---|
| Interface: | CAN, RS-232/422/485 |
| Protocol: | Modbus RTU |
| Ports: | 1 CAN, 1 serial |
| Isolation: | 2500 Vrms (photo-coupler), 3000 VDC (DC-to-DC) |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x CAN status 1 x UART status |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 1 x RS-422 (these ports can’t be used simultaneously) |
| Baud Rate | 300,600,1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400,460800 bps |
| CAN | |
| Ports | 1 |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Selectable 120Ω terminal resistor by jumper |
| Filter | Yes |
| Pin Assignment | C.I.A. DS-102 (CAN_H=7, CAN_L=2) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.5 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 x 118 x 35 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
