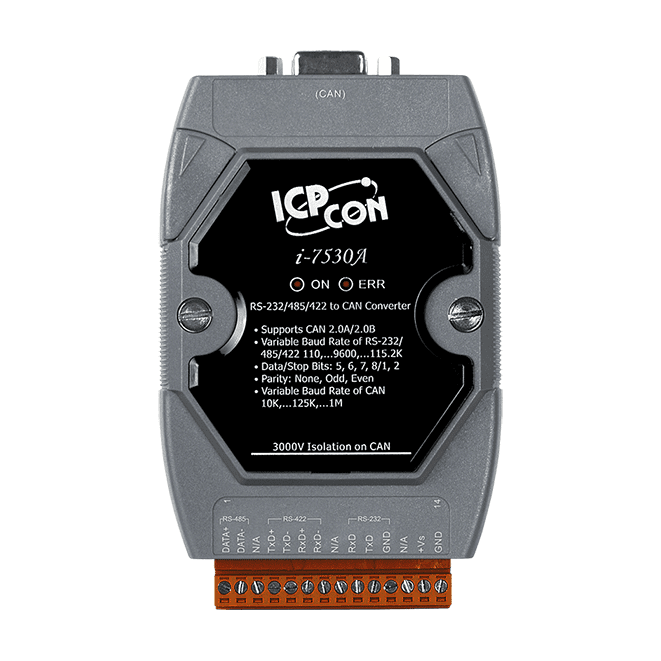

I-7530A-G Intelligent RS-232/485/422 to CAN Converter
Intelligent converter that links one RS-232, RS-485 or RS-422 serial port to a CAN 2.0A/2.0B bus at up to 1 Mbps, with 3 kV isolation and transparent serial-to-CAN forwarding.
- Compatible with CAN 2.0A/2.0B and fully compliant with ISO 11898-2, up to 1 Mbps
- One RS-232, RS-485 or RS-422 port, software configurable, with transparent forwarding across the CAN bus
- Groups RS-232/485/422 devices into individual CAN network groups (full-duplex RS-232/422 not supported)
- 3 kV galvanic isolation plus 2500 Vrms photocoupler isolation on the CAN side
- Jumper-selectable 120 Ω CAN terminal resistor
- Hardware watchdog for continuous operation
2 181,59 kr per stk.
| 1–9 stk. | 2 181,59 kr | |
|---|---|---|
| 10–30 stk. | 2 108,87 kr | −3 % |
| 31+ stk. | 2 067,31 kr | −5 % |
Produktinformasjon "I-7530A-G Intelligent RS-232/485/422 to CAN Converter"
I-7530A-G bridges serial devices and CAN bus networks. Its single COM port can be set to RS-232, RS-485 or RS-422, and CAN messages are passed on to the serial side, so legacy equipment can take part in CAN-based control and monitoring without changes to the devices themselves.
The converter is compliant with CAN 2.0A/2.0B and ISO 11898-2 and supports CAN baud rates from 10 k to 1 M bps. CAN and serial communication parameters are software configurable. Galvanic isolation (3 kV DC-to-DC and 2500 Vrms photocoupler on the CAN side) protects the serial equipment from faults arriving over the CAN network.
A hardware watchdog helps the unit recover from disturbances in harsh or electrically noisy environments. Power, data and error LEDs show operating status, and the DIN-rail housing with a -25 ~ +75 °C operating range suits industrial control cabinets.
Applications
- Connecting RS-232, RS-485 or RS-422 devices to CAN bus networks
- Control and monitoring systems that combine diverse serial and CAN communication devices
- Isolated serial-to-CAN integration in industrial cabinets
| Product type: | Serial-to-CAN converter |
|---|---|
| Interface: | CAN, RS-232/485/422 |
| Protocol: | CAN 2.0A/2.0B |
| Ports: | 1 |
| Isolation: | 3000 VDC / 2500 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x CAN status |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 (self-tunner ASIC inside) 1 x RS-422 (self-tunner ASIC inside) (these ports can’t be used simultaneously) |
| Baud Rate | 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| Parity | None, Even, Odd |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1,2 |
| Receive Buffer | 900 data frames |
| CAN | |
| Ports | 1 |
| Specification | CAN 2.0A/2.0B |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Selectable 120Ω terminal resistor by jumper |
| Filter | Yes |
| Receive Buffer | 1000 data frames |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 x 118 x 33 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
