I-7520U4-G RS-232 to 4-ch RS-485 Active Star Wiring Hub, Isolated
Isolated RS-232 to four-channel RS-485 active star wiring hub with independent drivers, selectable baud rate modes and 3000 VDC intra-module isolation.
- One RS-232 master input forwarded simultaneously to four independent RS-485 outputs in a star topology
- Independent RS-485 driver on each channel with automatic direction control
- Self-Tuner baud rate mode (300 ~ 115200 bps) or fixed baud rate mode (1200 ~ 115200 bps) selected with a rotary switch
- Short-circuit protection automatically isolates a breakdown RS-485 channel
- Jumper-selectable 120Ω termination resistor per channel, disabled by default
- Power and data flow LED indicators for troubleshooting
1 132,35 kr per stk.
| 1–9 stk. | 1 132,35 kr | |
|---|---|---|
| 10–30 stk. | 1 101,18 kr | −3 % |
| 31+ stk. | 1 080,40 kr | −5 % |
Produktinformasjon "I-7520U4-G RS-232 to 4-ch RS-485 Active Star Wiring Hub, Isolated"

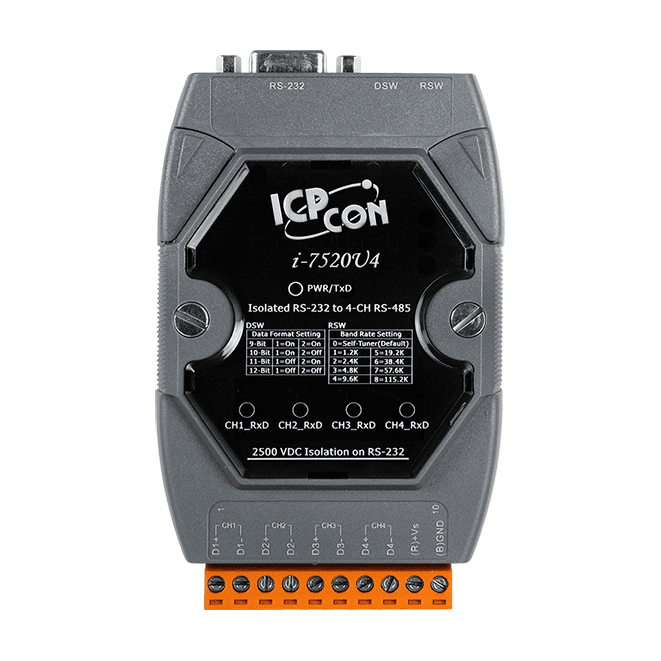

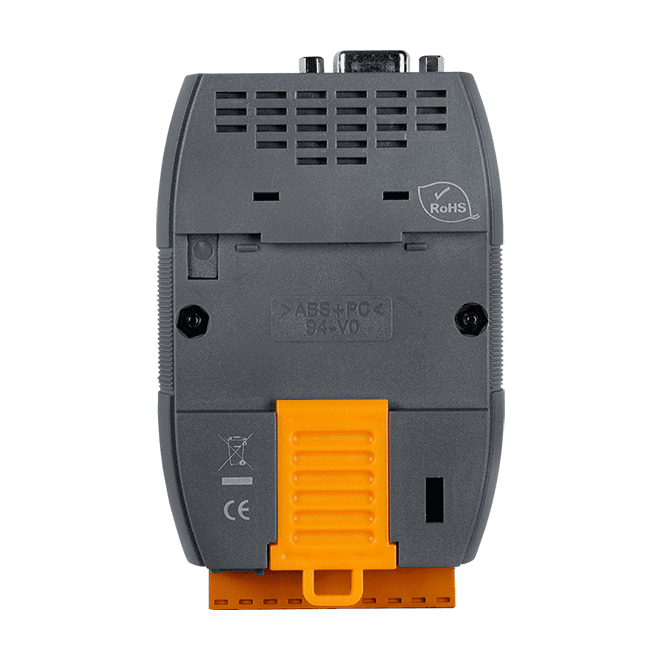

The I-7520U4-G CR takes one RS-232 master input and forwards its data simultaneously to four independent RS-485 outputs, allowing a single serial master to reach several RS-485 devices in a star topology. Each output channel has its own driver, and the hub switches direction automatically.

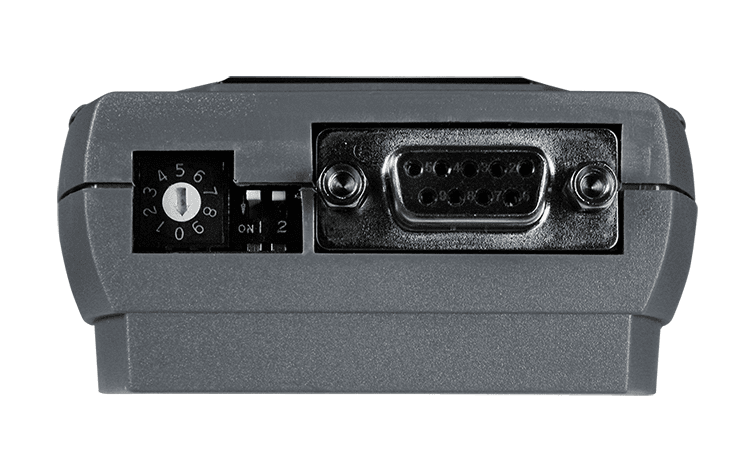

Baud rate is set by the rotary switch, with a choice between Self-Tuner mode, which supports multiple baud rates and data formats, and a fixed baud rate mode, which is better suited to long or lossy lines and electrically noisy surroundings. A short-circuit protection feature switches off a faulty RS-485 channel so that the remaining devices keep communicating.
Each channel includes a 120Ω termination resistor that is jumper selectable and disabled by default, useful where signal reflections must be controlled. Power and communication LEDs assist with troubleshooting, and the plastic DIN-rail unit runs from +10 VDC to +30 VDC over an operating range of -25 ~ +75 °C.
Applications
- Distributing serial data from one RS-232 master to several RS-485 slave devices
- RS-485 networks running over long lines or in electrically noisy environments
- Industrial serial communication cabinets with DIN-rail installation
| Product type: | RS-485 Star Wiring Hub |
|---|---|
| Interface: | RS-232 input, RS-485 output |
| Ports: | 1 x RS-232 input, 4 x RS-485 output |
| Isolation: | 3000 VDC |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 x Power and Communication |
| COM Ports | |
| Ports | 1 x RS-232 Input (Master) 4 x RS-485 Output (Slave) |
| Baud Rate | 300 ~ 115200 bps via Self-Tuner mode; 1200 ~ 115200 bps via Fixed Baud Rate mode |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
| Consumption | 1.2 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 x 35 x 118 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
