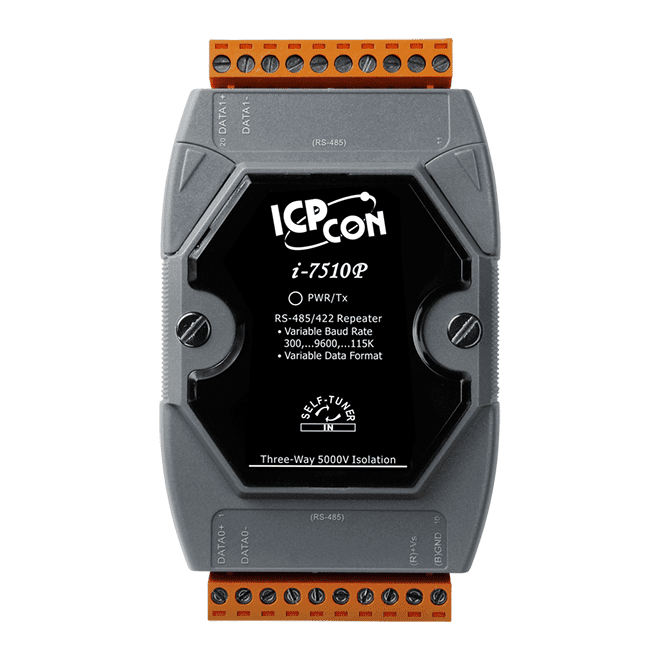

I-7510P-G Three-Way 5 kV Isolated RS-485 Repeater, Grey Cover
Three-way 5 kV isolated RS-485 repeater with automatic direction control and speeds up to 115200 bps, for extending or expanding RS-485 networks.
- Three-way 5000 VDC isolation (IEC 60664-1 section 6.1.2.2.1)
- Automatic RS-485 direction control
- Transmission speed up to 115200 bps (300 to 115200 bps range)
- ESD protection on the RS-485 data line
- Single RS-485 port with power and communication status LED
- Input range +12 VDC to +48 VDC, 2.2 W consumption
1 153,12 kr per stk.
| 1–9 stk. | 1 153,12 kr | |
|---|---|---|
| 10–30 stk. | 1 111,57 kr | −4 % |
| 31+ stk. | 1 090,79 kr | −5 % |
Produktinformasjon "I-7510P-G Three-Way 5 kV Isolated RS-485 Repeater, Grey Cover"
The I-7510P-G CR is an RS-485 repeater that isolates one RS-485 device from the rest of the network. Isolation is applied on both the input and output interface circuits, giving three-way 5000 VDC protection between the ports and the power side.
Use it to extend the reach of an existing RS-485 bus, or to grow a network beyond the 256-node limit set by the standard. It can also convert 2-wire RS-485 signals, in either direction, within the same system.
- Suited to noisy or ground-sensitive installations where galvanic separation is required
- Automatic RS-485 direction control removes the need for manual timing setup
Applications
- Extending the transmission distance of an existing RS-485 network
- Expanding an RS-485 system beyond the 256-node limit
- Isolating one RS-485 device from the rest of the system
- Converting 2-wire RS-485 signals
| Product type: | RS-485 Repeater |
|---|---|
| Interface: | RS-485 |
| Ports: | 1 |
| Isolation: | 5 kV (3-way) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| Isolation | |
|---|---|
| Intra-module Isolation | 3-way 5 kV Isolated |
| EMS Protection | |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 x Power and Communication |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 300 ~ 115200 bps |
| Power | |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 2.2 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 x 35 x 122 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
