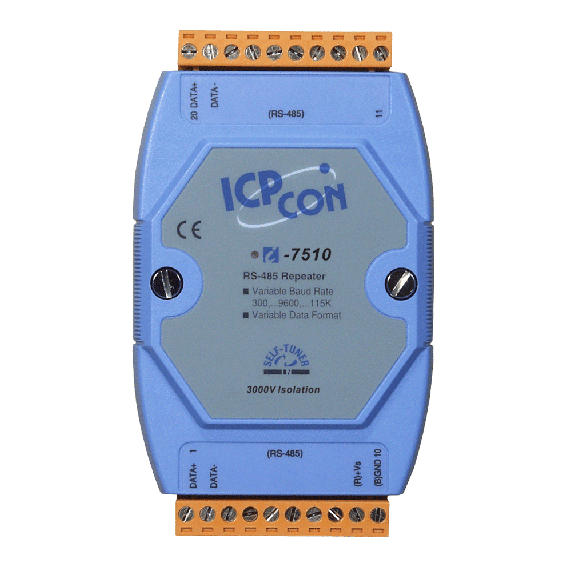

I-7510 Isolated RS-485 Repeater, 2-way 3000 VDC Isolation
Isolated RS-485 repeater with automatic direction control, up to 115200 bps and 2-way 3000 VDC isolation, for extending and expanding RS-485 networks.
- 2-way 3000 VDC (3 kV) isolation between the RS-485 port and the rest of the system
- Automatic RS-485 direction control, with no separate direction signal required
- Transmission speed from 300 to 115200 bps
- ESD protection on the RS-485 data line (IEC 61000-4-2)
- Power and communication status LED
- Input range +10 VDC to +30 VDC, 2.2 W consumption
955,74 kr per stk.
| 1–9 stk. | 955,74 kr | |
|---|---|---|
| 10–30 stk. | 924,58 kr | −3 % |
| 31+ stk. | 903,80 kr | −5 % |
Produktinformasjon "I-7510 Isolated RS-485 Repeater, 2-way 3000 VDC Isolation"
The I-7510 CR is an isolated RS-485 repeater that provides 2-way optical isolation between one RS-485 device and the rest of the system. It suits engineers who need to protect a sensitive node from ground differences and disturbances while keeping the bus connected.
Beyond isolation, the module can extend the reach of an existing RS-485 network and expand a system beyond the 256-node limit imposed by the standard. It can also convert a 2-wire RS-485 signal, and vice versa.
Direction switching is handled automatically, and the module supports speeds from 300 to 115200 bps. The I-7510 CR is a DIN-rail mounted unit with a plastic housing, powered from +10 VDC to +30 VDC.
Applications
- Isolating a single RS-485 device from the rest of the network
- Extending the transmission distance of an existing RS-485 network
- Expanding an RS-485 system beyond the 256-node limit of the standard
- Converting a 2-wire RS-485 signal and vice versa
| Product type: | RS-485 Repeater |
|---|---|
| Interface: | RS-485 |
| Ports: | 1 |
| Isolation: | 3000 VDC (2-way) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| Isolation | |
|---|---|
| Intra-module Isolation | 2-way 3 kV Isolated |
| EMS Protection | |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 x Power and Communication |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 300 ~ 115200 bps |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2.2 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 x 35 x 122 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
