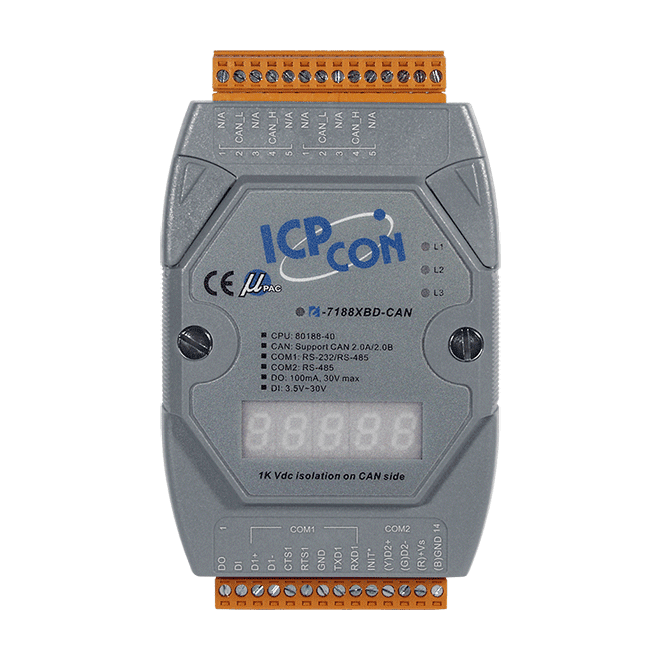

I-7188XBD-CAN-G CAN Controller PAC with Serial Ports and 1 DI/1 DO
Programmable automation controller with a CAN 2.0A/2.0B port, two serial COM ports, one digital input and one open collector output, running the built-in MiniOS7.
- CAN 2.0A and 2.0B compliant (ISO-11898-2), programmable up to 1 Mbps
- 2500 Vrms photo-isolation on the CAN channel and 1000 VDC DC-to-DC isolation
- 80188 CPU at 40 MHz with 512 KB SRAM and 512 KB Flash
- Built-in MiniOS7, programmable in C/C++
- One digital input and one open collector output channel
- Two COM ports: RS-485/RS-232 and RS-485 with built-in self-tuner
3 147,72 kr per stk.
| 1–9 stk. | 3 147,72 kr | |
|---|---|---|
| 10–30 stk. | 3 054,22 kr | −3 % |
| 31+ stk. | 2 991,89 kr | −5 % |
Produktinformasjon "I-7188XBD-CAN-G CAN Controller PAC with Serial Ports and 1 DI/1 DO"
I-7188XBD-CAN-G CR is a programmable automation controller that bridges a CAN bus with serial devices and simple discrete I/O. It is built around an 80188 processor at 40 MHz with 512 KB of SRAM and 512 KB of Flash, and it runs the built-in MiniOS7 operating system, so application code can be written in C or C++.
The CAN port follows ISO-11898-2 and CAN 2.0A/2.0B, with a programmable transfer rate up to 1 Mbps and a jumper-selectable 120 Ω terminal resistor. It is photo-isolated at 2500 Vrms. Two COM ports (one RS-485/RS-232 shared port and one RS-485 port with a built-in self-tuner) allow mixed serial equipment to be connected alongside the CAN network.
A single digital input and a single open collector output provide basic discrete I/O, while the 7-segment LED display, three programmable status LEDs, real-time clock, NVRAM and EEPROM support local status indication and data retention. The unit is DIN-rail mounted, powered from +10 VDC to +30 VDC, and rated for operation from -25 to +75 °C.
Applications
- CAN bus control and monitoring
- Integration of mixed CAN and serial communication devices
- Simple discrete command input and output
- Diversified CAN-based automation applications
| Product type: | PAC |
|---|---|
| Interface: | CAN, RS-232, RS-485 |
| Protocol: | CAN 2.0A/2.0B |
| Digital inputs: | 1 |
| Digital outputs: | 1 |
| Ports: | 3 |
| Isolation: | 2500 Vrms |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80188, 40 MHz or compatible |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| EEPROM | 2048 Bytes (8 block, each block contains 256byte); Data retention > 100 years; 1,000,000 erase/write cycles |
| Flash | 512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycles |
| NVRAM | 31 bytes (battery backup, data valid for up to 10 years) |
| SRAM | 512 KB |
| Real Time Clock | Yes |
| Watchdog Timer | CPU built-in |
| LED Indicators | |
| Status | 3 x Programmable |
| COM Ports | |
| Ports | 1 x RS-485/RS-232 (can’t be used simultaneously, screwed terminal block) 1 x RS-485 (Self-turner inside, screwed terminal block) |
| Baud Rate | 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| CAN | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 3 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 x 122 x 33 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
