I-7188XA Serial PAC with 80188-40 CPU and MiniOS7 Controller
Serial PAC with an 80188-40 CPU running MiniOS7, 512 KB SRAM, four serial ports and 2 dry contact inputs with 2 open-collector outputs for compact embedded control.
- Built-in MiniOS7 operating system with C language development toolkits
- 80188-40 CPU with 512 KB SRAM, 512 KB Flash and 2 KB EEPROM
- Four serial ports: 2 x RS-232, 1 x RS-485 and 1 x RS-232/RS-485, up to 115200 bps
- 2 dry contact digital inputs and 2 open-collector digital outputs (+30 VDC max., 100 mA)
- I/O expansion bus for X-board expansion boards
- Real-time clock, watchdog timer and 64-bit hardware serial number
2 742,56 kr per stk.
| 1–9 stk. | 2 742,56 kr | |
|---|---|---|
| 10–30 stk. | 2 659,46 kr | −3 % |
| 31+ stk. | 2 607,51 kr | −5 % |
Produktinformasjon "I-7188XA Serial PAC with 80188-40 CPU and MiniOS7 Controller"

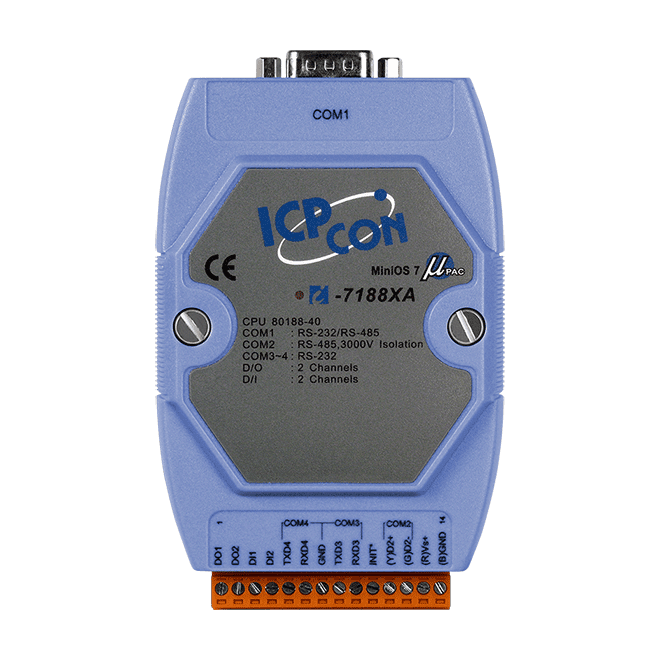

The I-7188XA CR is a palm-size programmable automation controller built around an 80188-40 CPU and the MiniOS7 operating system. It suits engineers who need a compact, reliable controller to take over duties from a PC or PLC in demanding environments, with C language development support.
On board you get 512 KB Flash, 2 KB EEPROM and 512 KB SRAM, plus four serial ports (2 x RS-232, 1 x RS-485 and 1 x RS-232/RS-485). Built-in digital I/O comprises 2 dry contact inputs and 2 open-collector outputs, and an I/O expansion bus accepts X-board expansion modules.

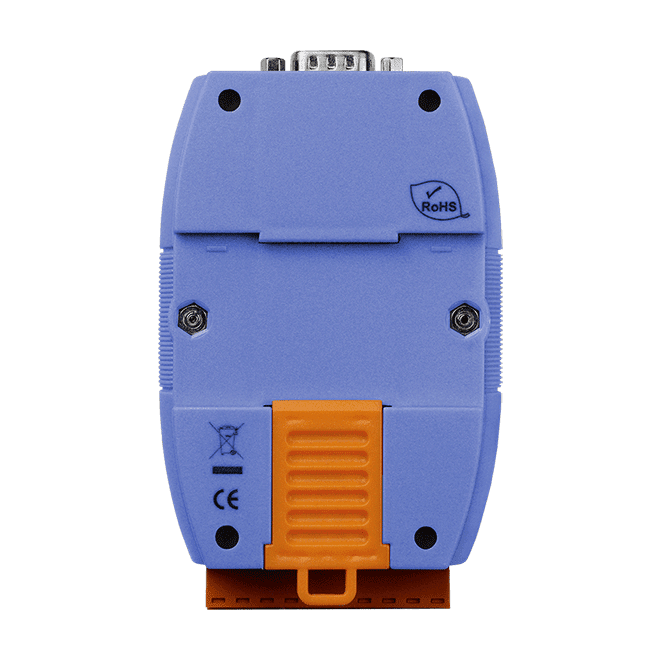

This blue-cover CR variant is intended for OEM designs where the controller is integrated as a processor core. Hardware features such as the 64-bit serial number, real-time clock and watchdog timer help support dependable operation in the field.
Applications
- Replacing PC or PLC devices in harsh environments
- Palm-size embedded control systems
- OEM products using the controller as a processor core component
| Product type: | Serial PAC |
|---|---|
| Interface: | RS-232, RS-485 |
| Digital inputs: | 2 |
| Digital outputs: | 2 |
| Ports: | 4 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80188, 40 MHz or compatible |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 2 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x System |
| Digital Input | |
| Channels | 2 |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Digital Output | |
| Channels | 2 |
| Type | Open Collector |
| Load Voltage | +30 VDC max. |
| Load Current | 100 mA |
| I/O Expansion | |
| I/O Type | X-board |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485, 1 x RS-232/RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 119 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
