I-7188EGD ISaGRAF Palm-sized Ethernet PAC with 5-digit 7-segment Display
Palm-sized ISaGRAF SoftLogic PAC with an 80188 40 MHz CPU, one 10Base-T Ethernet port, RS-232 and RS-485 ports, and a 5-digit 7-segment LED display for on-device status.
- 80188 CPU at 40 MHz running MiniOS7
- Embedded ISaGRAF Ver.3 SoftLogic programmable to IEC 61131-3
- 10Base-T Ethernet port with Modbus TCP/IP slave support
- RS-232 and RS-485 COM ports at up to 115200 bps
- Modbus RTU/ASCII master and Modbus RTU slave support
- 5-digit 7-segment LED display
3 947,63 kr per stk.
| 1–9 stk. | 3 947,63 kr | |
|---|---|---|
| 10–30 stk. | 3 833,36 kr | −3 % |
| 31+ stk. | 3 750,25 kr | −5 % |
Produktinformasjon "I-7188EGD ISaGRAF Palm-sized Ethernet PAC with 5-digit 7-segment Display"

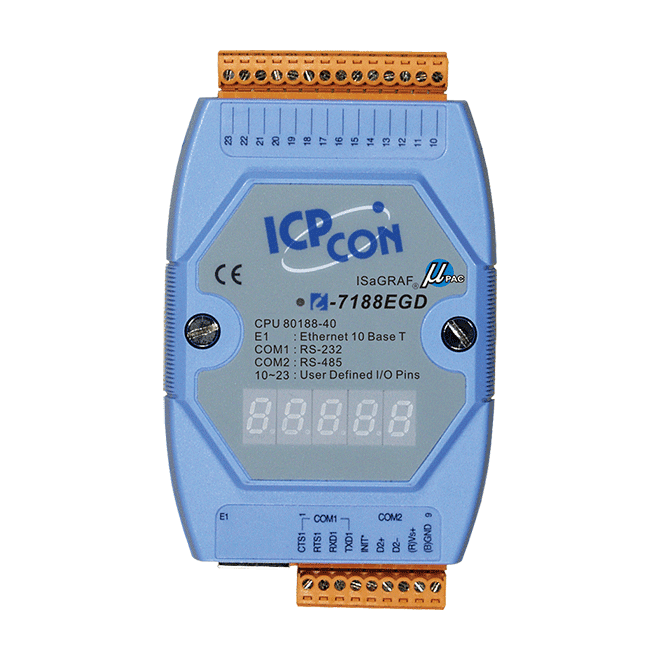

The I-7188EGD is a palm-sized programmable automation controller that runs embedded ISaGRAF Ver.3 SoftLogic, programmable to IEC 61131-3. It is built around an 80188 CPU running at 40 MHz under the MiniOS7 operating system, and it gives engineers Ethernet connectivity alongside serial communication in a compact DIN-rail housing.
Compared with the standard I-7188EG, this variant adds a 5-digit 7-segment LED display, which shows status information directly on the unit. Otherwise the two share the same core features, including the single 10Base-T Ethernet port, one RS-232 port and one RS-485 port.
- Expansion is possible with an X-Board I/O expansion board, which can add COM ports, I/O or memory.
- ISaGRAF cannot run on 64-bit Windows 7 or 8 PCs; Win-GRAF is the suggested alternative for those systems.
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 3 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| OS | MiniOS7 |
| Protocol | • NET ID • Modbus TCP/IP Slave • Modbus RTU/ASCII Master • Modbus RTU Slave • DCON Protocol • User-defined Protocol • I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O • Fbus • Ebus • SMS |
| Development | Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3) |
| CPU Module | |
| CPU | 80188, 40 MHz or compatible |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 2 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System |
| I/O Expansion | |
| I/O Type | X-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10Base-T |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
