I-7188EG ISaGRAF Palm-sized Ethernet PAC with 80188-40 CPU
Palm-sized Ethernet PAC running embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3) on an 80188-40 CPU with MiniOS7, one 10Base-T port and RS-232/RS-485 serial ports.
- 80188 CPU at 40 MHz running the MiniOS7 operating system
- Embedded ISaGRAF Ver.3 SoftLogic programmable to IEC 61131-3
- One 10Base-T RJ-45 Ethernet port
- One RS-232 and one RS-485 COM port, up to 115200 bps
- Modbus RTU/ASCII Master and Modbus RTU/TCP Slave support
- X-Board expansion for additional COM ports, I/O or memory
3 646,36 kr per stk.
| 1–9 stk. | 3 646,36 kr | |
|---|---|---|
| 10–30 stk. | 3 542,48 kr | −3 % |
| 31+ stk. | 3 459,37 kr | −5 % |
Produktinformasjon "I-7188EG ISaGRAF Palm-sized Ethernet PAC with 80188-40 CPU"

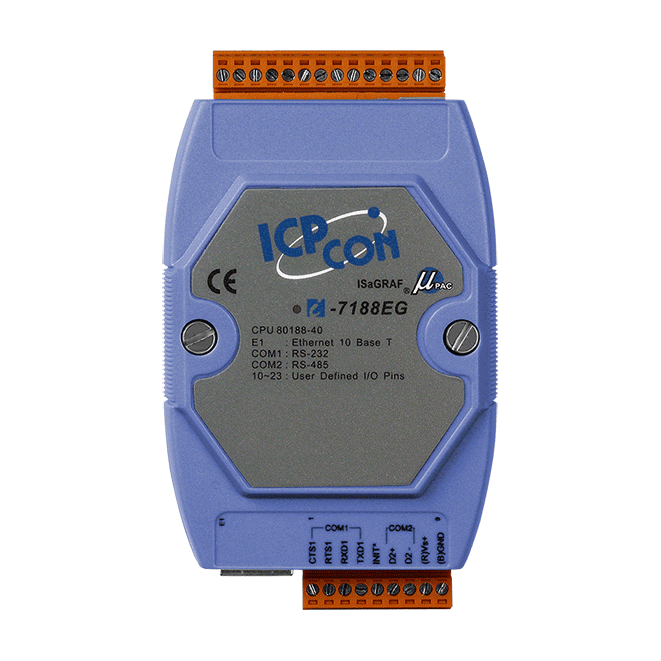

The I-7188EG CR is a palm-sized programmable automation controller that combines an 80188 processor running at 40 MHz with embedded ISaGRAF Ver.3 SoftLogic, so control logic can be written to IEC 61131-3 and run directly on the unit. It suits compact control tasks where a small footprint and Ethernet connectivity are both needed.
Communication is handled by one 10Base-T RJ-45 Ethernet port, one RS-232 port and one RS-485 port, with serial rates up to 115200 bps. The controller supports Modbus RTU/ASCII master operation as well as Modbus RTU and Modbus TCP/IP slave operation, and includes DCON, Fbus and Ebus options along with a user-defined protocol. Where more serial ports or I/O are required, an X-Board expansion board can be fitted.
This ordering code is the standard variant without the 5-digit 7-segment LED display offered on the I-7188EGD. The unit mounts on a DIN rail, draws 2.0 W from a +10 to 30 VDC supply and is rated for operation from -25 to +75 °C.
Applications
- Embedded control logic written in IEC 61131-3 with ISaGRAF
- Modbus communication between Ethernet hosts and serial RTU devices
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus RTU/TCP |
| Ports: | 1 Ethernet, 2 serial |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Software | |
|---|---|
| OS | MiniOS7 |
| Protocol | • NET ID • Modbus TCP/IP Slave • Modbus RTU/ASCII Master • Modbus RTU Slave • DCON Protocol • User-defined Protocol • I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O • Fbus • Ebus • SMS |
| Development | Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3) |
| CPU Module | |
| CPU | 80188, 40 MHz or compatible |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 2 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x System |
| I/O Expansion | |
| I/O Type | X-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10Base-T |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
