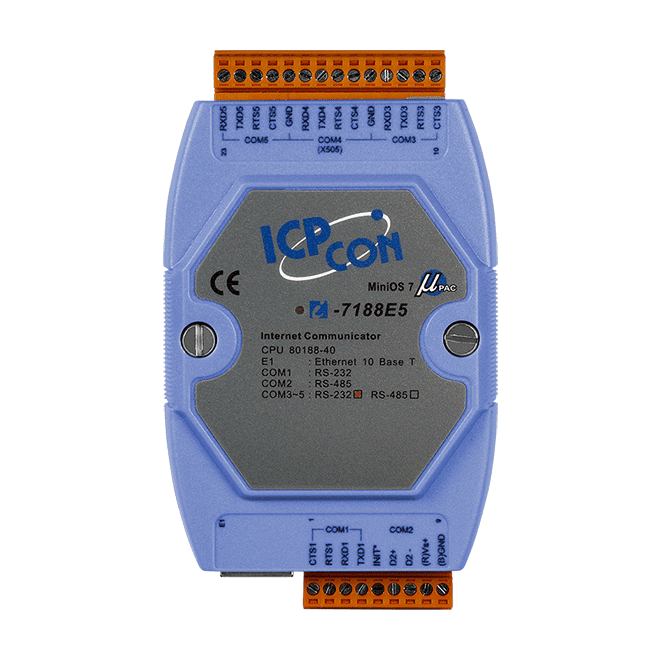

I-7188E5 Programmable Ethernet to 5-Port Serial Converter (4x RS-232, 1x RS-485)
Programmable serial-to-Ethernet device server with four RS-232 ports and one RS-485 port, running a built-in MiniOS7 and supporting Virtual COM or raw TCP connections.
- Four RS-232 ports and one RS-485 port for connecting serial devices to Ethernet
- Data transmission via Virtual COM or raw TCP connection
- VxComm driver for 32-bit and 64-bit Windows 7 SP1/10/2012/2016
- Built-in MiniOS7 with Xserver programming structure for custom Ethernet applications
- Watchdog timer suitable for use in harsh environments
- Serial ports up to 115200 bps, with even, odd or no parity and 7 or 8 data bits
3 043,83 kr per stk.
| 1–9 stk. | 3 043,83 kr | |
|---|---|---|
| 10–30 stk. | 2 950,33 kr | −3 % |
| 31+ stk. | 2 888,00 kr | −5 % |
Produktinformasjon "I-7188E5 Programmable Ethernet to 5-Port Serial Converter (4x RS-232, 1x RS-485)"
I-7188E5 CR links one RS-232/485 serial device or several at once to an Ethernet network. Serial data can be carried over Virtual COM or raw TCP connections, so existing serial software and devices can be networked without changing their communication protocol.
The unit has four RS-232 ports and one RS-485 port on a removable terminal block, which simplifies wiring in industrial cabinets. A built-in MiniOS7 and the Xserver programming structure allow custom Ethernet applications to be developed on the device. A watchdog timer is included for use in harsh environments.
Windows users can install the VxComm driver, available for 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016, to map the built-in serial ports to standard COM ports on the host computer.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Ethernet to serial converter |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | raw TCP, Virtual COM |
| Ports: | 5 |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Ethernet | |
| Ports | 10BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 4 x RS-232 (TXD, RXD, RTS, CTS, GND) 1 x RS-485 (Data+, Data-) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
