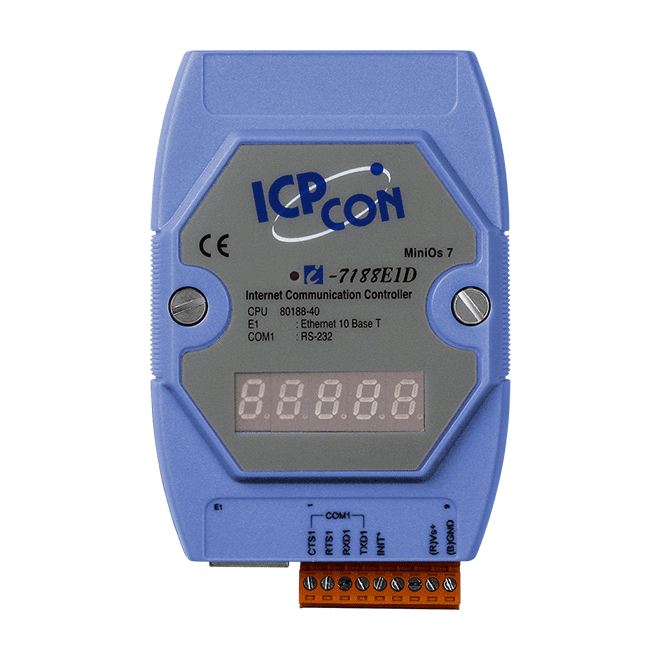

I-7188E1D Programmable Ethernet to RS-232 Converter with LED Display
Programmable Ethernet to 1x RS-232 device server with LED display, linking an RS-232 serial device to an Ethernet network via Virtual COM or raw TCP.
- Converts one RS-232 serial port to Ethernet for Virtual COM or raw TCP data transmission
- VxComm driver for 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016
- Built-in MiniOS7 with Xserver programming structure for custom Ethernet applications
- Watchdog timer suitable for use in harsh environments
- RS-232 port supports up to 115200 bps with 7 or 8 data bits and even, odd or no parity
- Status LED display
1 766,05 kr per stk.
| 1–9 stk. | 1 766,05 kr | |
|---|---|---|
| 10–30 stk. | 1 714,10 kr | −3 % |
| 31+ stk. | 1 682,94 kr | −5 % |
Produktinformasjon "I-7188E1D Programmable Ethernet to RS-232 Converter with LED Display"
The I-7188E1D brings an RS-232 serial device onto an Ethernet network. Serial data can be passed through to a host using a Virtual COM connection, so existing COM-port software keeps working, or over a raw TCP connection for custom applications. Its protocol independence makes it suited to bridging legacy serial equipment without changes to the device itself.
The unit runs the built-in MiniOS7 from ICP DAS, which is supported by the Xserver programming structure for building custom Ethernet logic. A watchdog timer is included for harsh-environment use, and the status LED display gives a quick visual check of operation. Power reverse polarity protection guards the +10 VDC to +30 VDC supply input.
Its compact, palm-sized housing measuring 123 mm x 72 mm x 33 mm and removable on-board terminal block make installation straightforward. The VxComm driver supports 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016 for Virtual COM operation.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet converter |
|---|---|
| Interface: | Ethernet, RS-232 |
| Protocol: | raw TCP, Virtual COM |
| Ports: | 1 x RS-232 |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Ethernet | |
| Ports | 10BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 1 x RS-232 (TXD, RXD, RTS, CTS, GND) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 3W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
