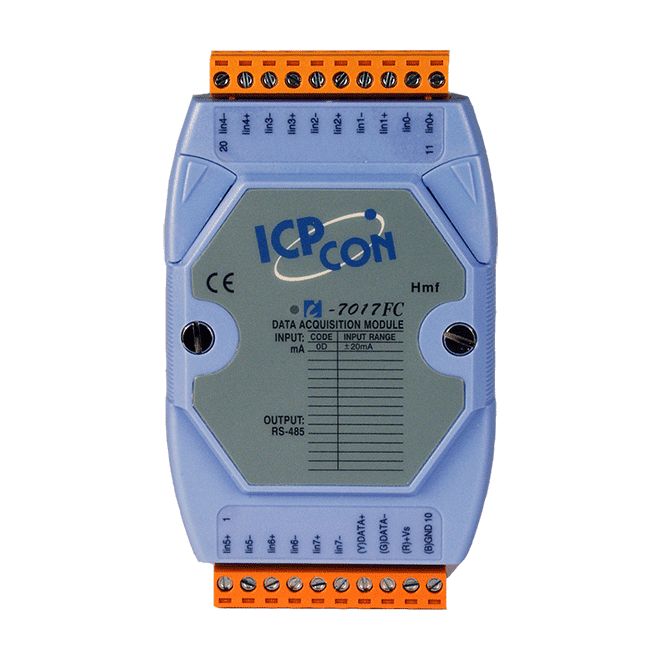

I-7017FC 8-ch Current Input Module with Fast Sampling, DCON RS-485
8-channel differential current input module with 16-bit resolution, selectable fast (60 Hz) or normal (10 Hz) sampling, and an RS-485 DCON interface for 4 ~ 20 mA and other current signals.
- 8 differential current input channels with ±20 mA, 0 ~ 20 mA and 4 ~ 20 mA ranges
- Built-in 125 Ω resistor for direct current measurement
- Adjustable sampling: Fast mode 60 Hz (±0.5% of FSR) or Normal mode 10 Hz (±0.1% of FSR)
- Open wire detection for 4 ~ 20 mA inputs
- 16-bit resolution
- 3000 VDC intra-module isolation and ±4 kV ESD contact protection per terminal
2 264,69 kr per stk.
| 1–9 stk. | 2 264,69 kr | |
|---|---|---|
| 10–30 stk. | 2 202,36 kr | −3 % |
| 31+ stk. | 2 150,42 kr | −5 % |
Produktinformasjon "I-7017FC 8-ch Current Input Module with Fast Sampling, DCON RS-485"
The I-7017FC CR is an 8-channel current input module for engineers who need to read process currents over RS-485. Its built-in 125 Ω input resistor allows direct current measurement without external shunts, which keeps wiring and commissioning simple.
This fast sampling version lets you choose between Fast mode at 60 Hz with ±0.5% of FSR accuracy and Normal mode at 10 Hz with ±0.1% of FSR accuracy. Open wire detection is provided for 4 ~ 20 mA inputs, and the module offers 3000 VDC intra-module isolation along with ±4 kV contact ESD protection on each terminal.
Communication is handled through a single RS-485 port using the DCON protocol, with baud rates from 1200 to 115200 bps. The module is designed for DIN-rail mounting and suits building, factory and machine automation, as well as remote diagnosis and maintenance and test equipment.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Analog Input Module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Analog inputs: | 8 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 8 Differential |
| Type | Current |
| Range | ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% of FSR Fast Mode: ±0.5% of FSR (Only for I-7017FC) |
| Sampling Rate | Normal Mode: 10 Hz Fast Mode: 60 Hz (Only for I-7017FC) |
| Input Impedance | Current: 125 Ω |
| Common Voltage Protection | ±15 VDC |
| Overcurrent Protection | 50 mA at 110 VDC |
| Open Wire Detection | For 4 ~ 20 mA Only |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (E, 8, 2) |
| Protocol | DCON |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.3 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
