I-36166-ENC IP66 Industrial Enclosure with DIN-Rail and Cable Glands
IP66 industrial enclosure for housing automation modules in industrial or protected outdoor installations, with built-in DIN-rail and an operating range of -40 ~ +80 °C.
- IP66 ingress protection rating for demanding industrial and outdoor sites
- Operating temperature range of -40 ~ +80 °C
- Built-in DIN-rail and 340 mm DIN-rail supplied
- Self-drilling points for fixing the enclosure
- Overall dimensions 361 mm x 254 mm x 166 mm (W x L x H)
- Supplied with 2 x 4PASO-0028 and 1 x 4SASO-0007 cable glands
1 433,61 kr per stk.
| 1–9 stk. | 1 433,61 kr | |
|---|---|---|
| 10–30 stk. | 1 392,06 kr | −3 % |
| 31+ stk. | 1 360,89 kr | −5 % |
Produktinformasjon "I-36166-ENC IP66 Industrial Enclosure with DIN-Rail and Cable Glands"
The I-36166-ENC is an IP66 industrial enclosure for housing automation modules where dust, moisture and UV exposure are a concern. Its sturdy housing is intended for installations in industrial areas or protected outdoor locations, shielding the enclosed module from moisture and UV rays.
The enclosure has a built-in DIN-rail for straightforward mounting and provides self-drilling mounting points. It is rated for an operating temperature of -40 ~ +80 °C and measures 361 mm x 254 mm x 166 mm (W x L x H).

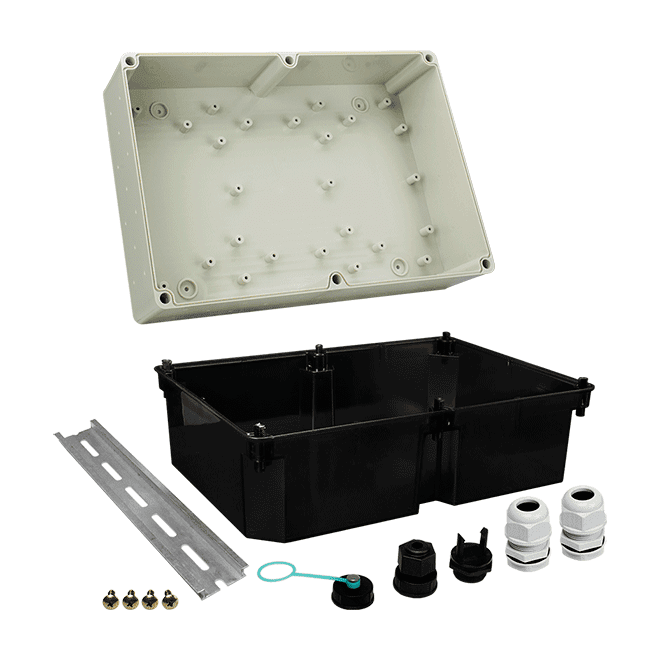

The package includes two 4PASO-0028 cable glands (cable range Φ9~14mm), one 4SASO-0007 cable gland (cable range Φ7~4mm), six captive lid screws and a 340 mm DIN-rail.
Applications
- Industrial installations
- Protected outdoor areas
- Protecting automation modules from moisture and UV exposure
| Product type: | Enclosure |
|---|---|
| Operating temperature: | -40 ~ +80 °C |
| Mounting: | DIN-rail |
| Housing: | IP66 |
Spesifikasjoner
| Mechanical | |
|---|---|
| Dimensions (mm) | 361 mm x 254 mm x 166 mm (W x L x H) |
| Ingress Protection Rating | IP66 |
| Environment | |
| Operating Temperature | -40 ~ +80 °C |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
