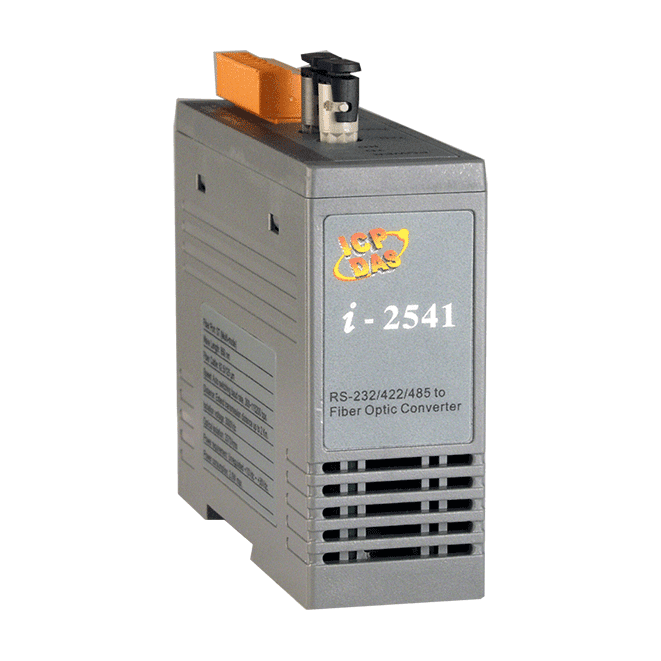

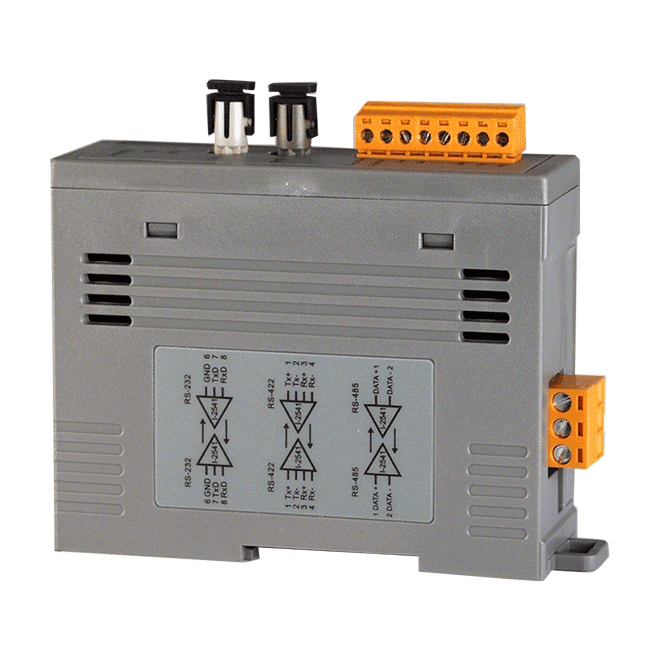

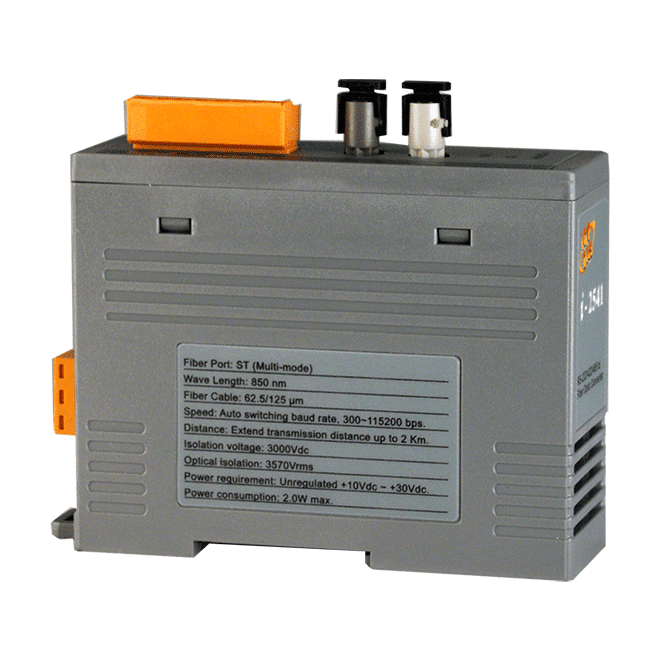

I-2541 RS-232/422/485 to Multi-Mode Fibre Converter, 2 km ST
Converts an RS-232/422/485 serial port to 850 nm multi-mode ST fibre for transmission up to 2 km, with immunity from EMI/RFI interference.
- Single RS-232/422/485 serial port with baud rates from 300 to 115200 bps
- 850 nm multi-mode ST fibre link up to 2 km (62.5/125 μm recommended)
- Supports 50/125, 62.5/125 and 100/140 μm multi-mode fibre
- Automatic RS-485 direction control
- Fibre transmission immune to EMI/RFI; protection against lightning strikes
- ESD protection on the RS-232/422/485 data line (IEC 61000-4-2)
2 898,39 kr per stk.
| 1–9 stk. | 2 898,39 kr | |
|---|---|---|
| 10–30 stk. | 2 815,28 kr | −3 % |
| 31+ stk. | 2 752,95 kr | −5 % |
Produktinformasjon "I-2541 RS-232/422/485 to Multi-Mode Fibre Converter, 2 km ST"
The I-2541 CR converts a single RS-232, RS-422 or RS-485 serial port to a multi-mode ST fibre link, extending serial communication up to 2 km. Because the signal travels as light, the link is immune to EMI/RFI and is suited to runs where transmission must be protected from electrical exposure, surges or chemical corrosion.
The converter supports RS-232/422 point-to-point connections as well as RS-485 multi-drop networks. Automatic RS-485 direction control, protection against lightning strikes and ESD protection on the data line help keep the serial link reliable in demanding installations.

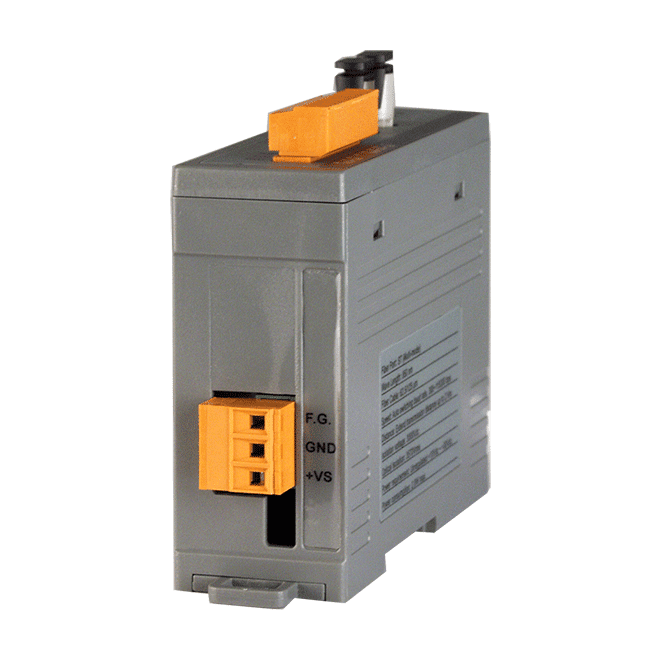

Power is supplied from +10 VDC to +30 VDC (non-isolated) with a consumption of 1.5 W. The plastic housing mounts on a DIN rail and is rated for an operating temperature of -25 ~ +75 °C.
Applications
- Point-to-point RS-232/422 serial connections
- RS-485 multi-drop serial networks
- Serial links where transmission must be protected from electrical exposure, surges or chemical corrosion
| Product type: | Fiber optic converter |
|---|---|
| Interface: | RS-232/422/485 |
| Ports: | 1 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 x Power and Communication |
| COM Ports | |
| Ports | 1 x RS-232/422/485 |
| Baud Rate | 300 ~ 115200 bps |
| Fiber | |
| Ports | Multi Mode; ST connector x 1 |
| Fiber Cable | 50/125, 62.5/125, 100/140 μm |
| Wavelength | 850 nm |
| Transmission Distance | 2 km, (62.5/125 μm recommended) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
| Consumption | 1.5 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 89 x 107 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
