I-2533-UTA CAN to Multi-mode Fiber Bridge, -40 to 75 °C
Intelligent CAN-to-fibre bridge that links two CAN bus networks over 850 nm multi-mode fibre up to 2 km, with rotary-switch baud rate setting and -40 to 75 °C operation.
- Supports CAN 2.0A and CAN 2.0B, fully compatible with ISO 11898-2

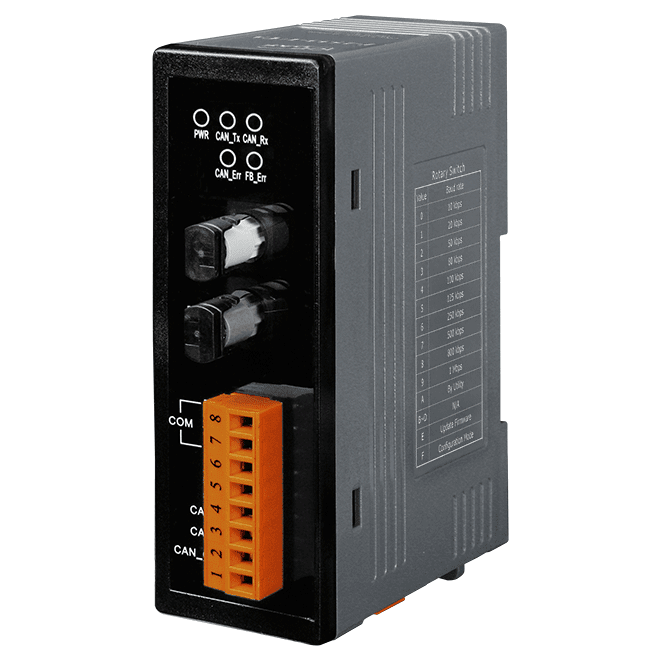

- Rotary switch for CAN baud rate, with user-defined baud rate from 10 k to 1 M bps
- Up to 2 km multi-mode fibre link at any CAN baud rate, via ST connector
- Up to 100 CAN nodes on the CAN channel
- 512-record CAN Tx buffer and 512-record CAN Rx buffer
- Software utility for message filter configuration over RS-232 utility port
2 711,40 kr per stk.
| 1–9 stk. | 2 711,40 kr | |
|---|---|---|
| 10–30 stk. | 2 628,29 kr | −3 % |
| 31+ stk. | 2 576,35 kr | −5 % |
Produktinformasjon "I-2533-UTA CAN to Multi-mode Fiber Bridge, -40 to 75 °C"

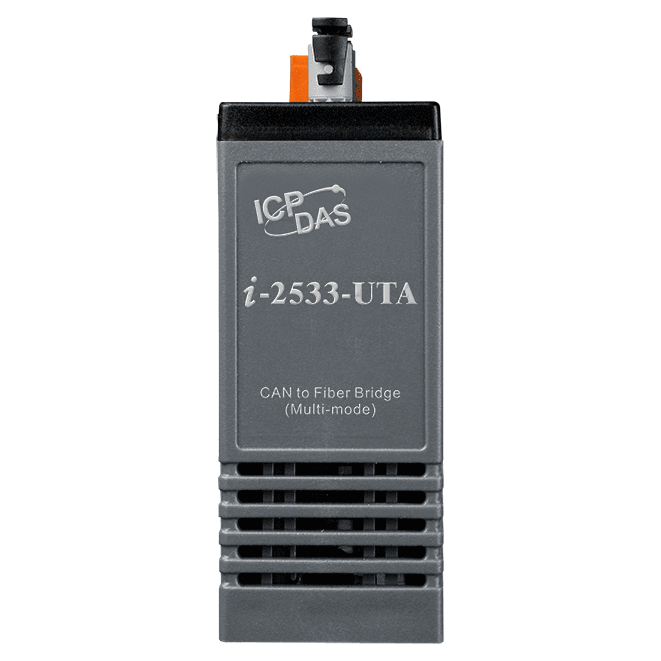

I-2533-UTA CR is a CAN bridge for extending a CAN bus across fibre optic cable. It converts CAN signals to optical signals at one end and reshapes them at the other, so two CAN segments can be joined over a single ST multi-mode link with a reach of up to 2 km.
The bridge suits networks where the two sides run at different baud rates. Its baud rate and message filter settings can be configured, and because the fibre link does not depend on the CAN baud rate, the distance limit of the CAN bus is not reduced. The total network length can therefore be extended while the segments keep their own timing.
Its CAN side supports both CAN 2.0A and CAN 2.0B under ISO 11898-2, and it is rated for an operating range of -40 to 75 °C. Mounting is on DIN-rail, and a broken fibre cable is detected.
Applications
- Linking two CAN bus networks over fibre optic cable
- Joining CAN segments that run at different baud rates
- Extending total CAN network length beyond the bus distance limit
- EV charging station management
- Control and monitoring across various industries
| Product type: | CAN bridge |
|---|---|
| Interface: | CAN, Fiber (ST) |
| Protocol: | CAN 2.0A/2.0B |
| Ports: | 1 CAN, 1 fiber |
| Isolation: | 3000 VDC / 2500 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| LED Indicators | |
|---|---|

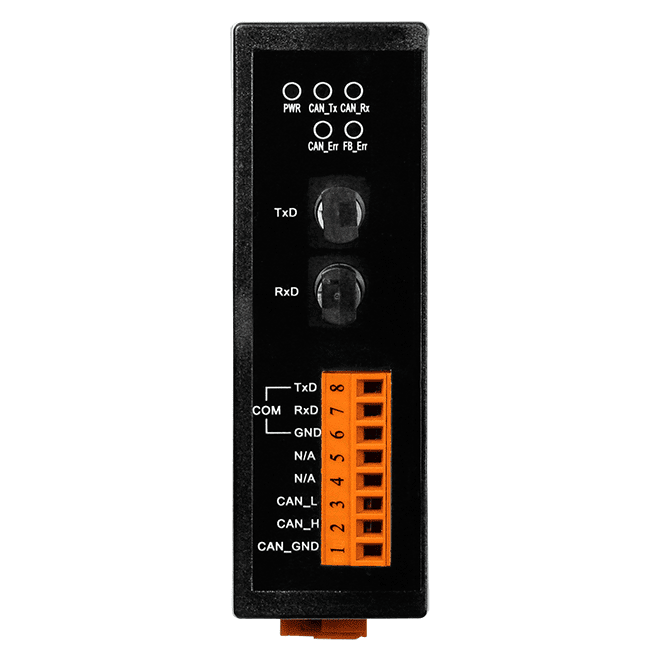

| Status | 1 x Power 3 x CAN status 1 x Fiber |
| COM Ports | |
| Ports | 1 x RS-232 (Utility Port) |
| Fiber | |
| Ports | Multi Mode; ST connector x 1 |
| Fiber Cable | 50/125, 62.5/125 or 100/140 μm (62.5/125μm is recommended) |
| Wavelength | 850 nm |
| Transmission Distance | 2 km max (62.5 / 125 μm recommended) |
| Propagation Delay | 250 us (*Note1) |
| CAN | |
| Ports | 1 |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |

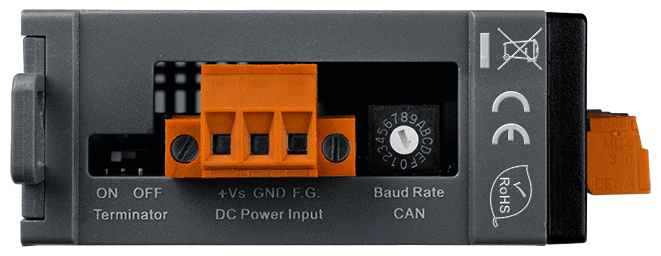

| Terminal Resistor | Switch for 120Ω terminal resistor |
| Filter | Yes |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 3 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 32.3 x 77.5 x 99.0 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -40 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
