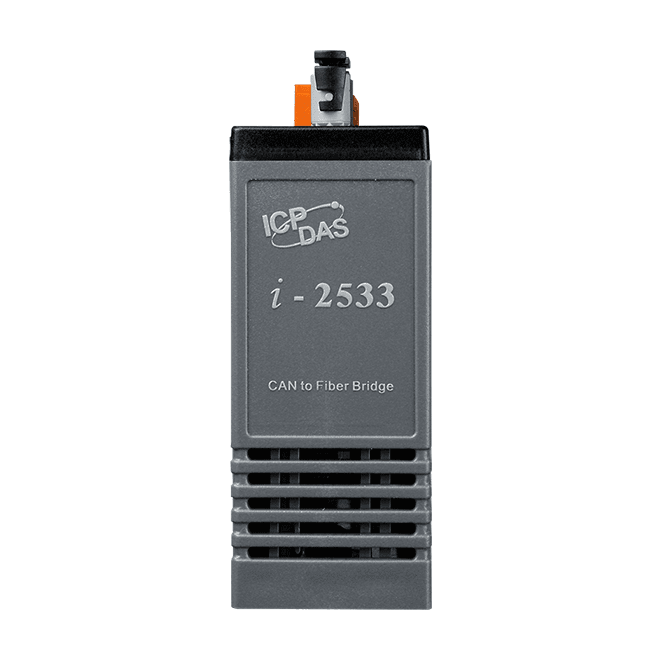

I-2533 CAN to Multi-mode Fiber Bridge, 2 km ST Connector
Intelligent CAN bridge that links two CAN bus systems over multi-mode fiber up to 2 km, with rotary baud rate setting and message filter configuration.
- Bridges two CAN networks over a multi-mode fiber link of up to 2 km at any CAN baud rate
- Supports CAN 2.0A and CAN 2.0B, fully compatible with ISO 11898-2

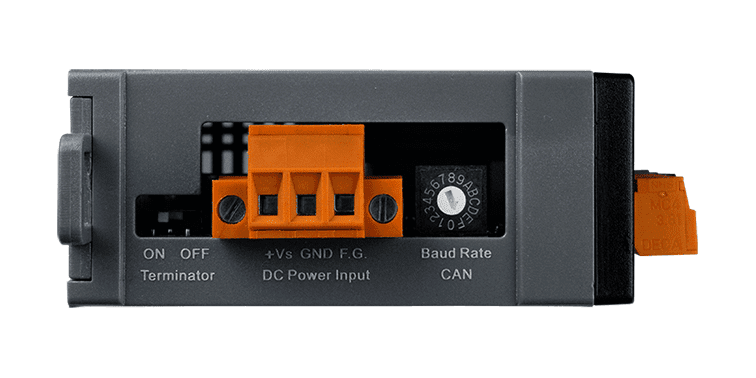

- Rotary switch for CAN baud rate, with a 10 k ~ 1 M bps range and user-defined baud rate support
- Software utility tool for CAN message filter configuration
- 512-record CAN Tx buffer and 512-record CAN Rx buffer
- Up to 100 CAN nodes on the CAN channel (*Note)
2 534,79 kr per stk.
| 1–9 stk. | 2 534,79 kr | |
|---|---|---|
| 10–30 stk. | 2 451,69 kr | −3 % |
| 31+ stk. | 2 399,74 kr | −5 % |
Produktinformasjon "I-2533 CAN to Multi-mode Fiber Bridge, 2 km ST Connector"
The I-2533 CR is an intelligent CAN bridge that connects two CAN bus systems over a multi-mode fiber optic link. It converts CAN bus signals to optical signals, reshapes them at the far end and supports both CAN 2.0A and CAN 2.0B, fully compatible with ISO 11898-2.
Compared with the I-2532, this model adds CAN baud rate and message filter configuration. This is useful when joining two networks that run at different baud rates. Because the baud rate does not limit the transmission distance, the total network length can be extended, with up to 2 km per fiber link at any CAN baud rate.
The bridge accepts a user-defined baud rate within the 10 k ~ 1 M bps range and includes a software utility for message filter setup. Its 512-record CAN Tx and Rx buffers and broken line detection for the fiber cable help keep data flowing reliably across the link.
Applications
- EV charging station management
- Control and monitoring of CAN-based systems across various industries
| Product type: | CAN bridge |
|---|---|
| Interface: | CAN, Multi-mode fiber (ST) |
| Protocol: | CAN 2.0A, CAN 2.0B |
| Ports: | 1 CAN, 1 fiber |
| Isolation: | 3000 VDC (DC-to-DC), 2500 Vrms (photo-coupler) |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| LED Indicators | |
|---|---|

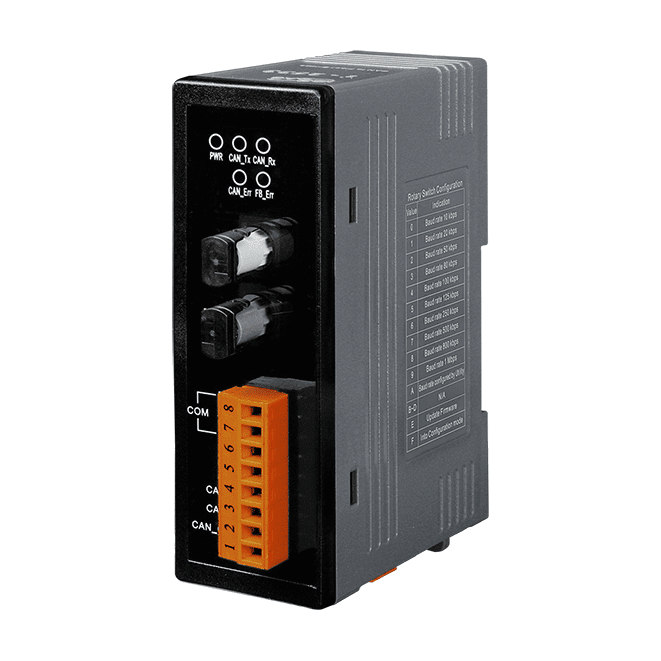

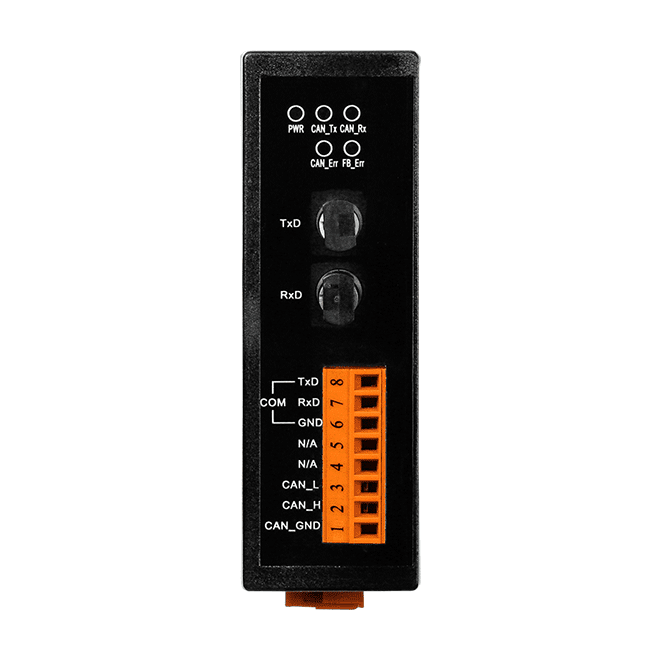

| Status | 1 x Power 3 x CAN status 1 x Fiber |
| COM Ports | |
| Ports | 1 x RS-232 (Utility Port) |
| Fiber | |
| Ports | Multi Mode; ST connector x 1 |
| Fiber Cable | 50/125, 62.5/125 or 100/140 μm (62.5/125μm is recommended) |
| Wavelength | 850 nm |
| Transmission Distance | 2 km max (62.5 / 125 μm recommended) |
| Propagation Delay | 250 us (*Note1) |
| CAN | |
| Ports | 1 |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Switch for 120Ω terminal resistor |
| Filter | Yes |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 3 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 32.3 x 77.5 x 99.0 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
