GW-7663 PROFINET IO Device to Modbus TCP Gateway
PROFINET IO device gateway that lets a PROFINET controller access Modbus TCP devices such as PLCs, sensors and ICP DAS modules, configured with a utility software.
- PROFINET IO Device with Conformance Class B and RT Class 1
- Minimum cyclic time of 1 ms
- Max input/output data of 512/512 bytes
- Modbus master and slave mode support
- Generic GSDML file (version 2.25) provided
- Utility software for configuration
4 872,21 kr per stk.
| 1–9 stk. | 4 872,21 kr | |
|---|---|---|
| 10–30 stk. | 4 726,77 kr | −3 % |
| 31+ stk. | 4 622,88 kr | −5 % |
Produktinformasjon "GW-7663 PROFINET IO Device to Modbus TCP Gateway"

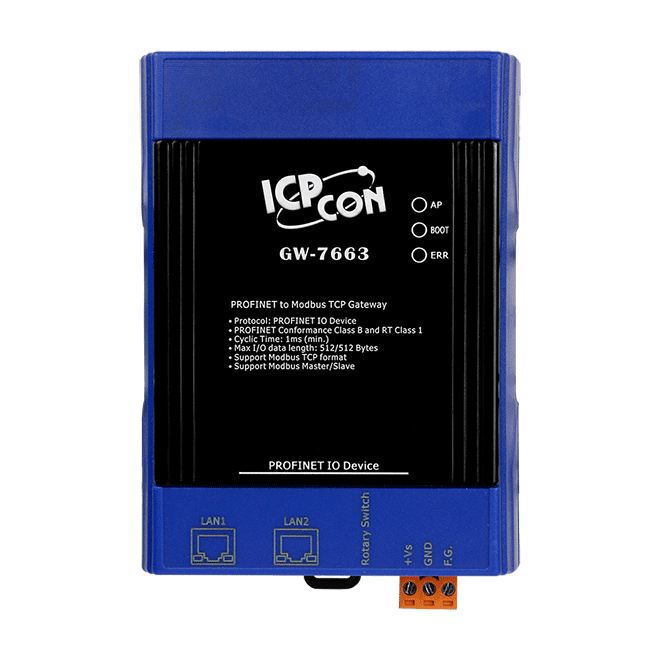

The GW-7663 CR is a PROFINET IO device that bridges a PROFINET controller and Modbus TCP devices. Engineers can bring existing Modbus equipment, including PLCs, sensors and ICP DAS ET-7000 series modules, onto a PROFINET network without replacing those devices.
The gateway supports both Modbus master and slave operation, and a generic GSDML file (version 2.25) is provided for PROFINET controller integration. Cyclic time is 1 ms minimum, and input and output data can each be up to 512 bytes. A utility software package is supplied for configuring the module.
Built around a 32-bit CPU with 32 MB SRAM and 4 MB flash, the unit is designed for DIN-rail installation and an operating range of -25 ~ +75 °C. It carries CE, UKCA, FCC, RoHS and WEEE marks.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Gateway |
|---|---|
| Interface: | Ethernet, PROFINET |
| Protocol: | Modbus TCP, PROFINET |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 32-bit CPU Core |
| EEPROM | 8 KB |
| Flash | 4 MB |
| SRAM | 32 MB |
| Watchdog Timer | CPU built-in |
| LED Indicators | |
| Status | AP LED, BOOT LED, ERR LED |
| Ethernet | |
| Services | ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| PROFINET | |
| Conformance Classes | Class B |
| Services | RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time | 1 ms (min) |
| Protocol | PROFINET IO Device |
| Power | |
| Consumption | 3.4 W |
| Mechanical | |
| Dimensions (mm) | 42 x 76 x 110 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
