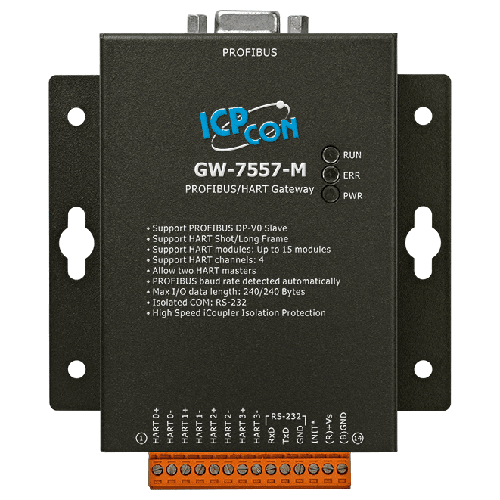

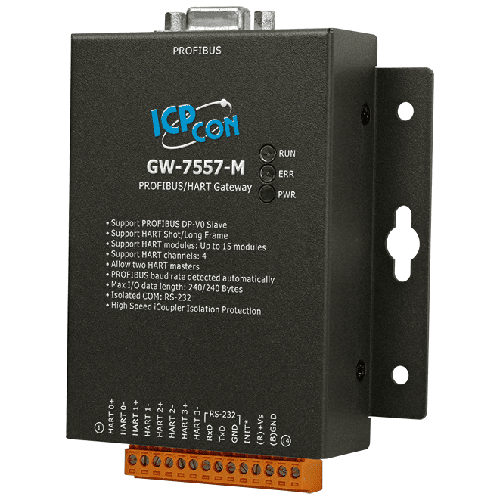

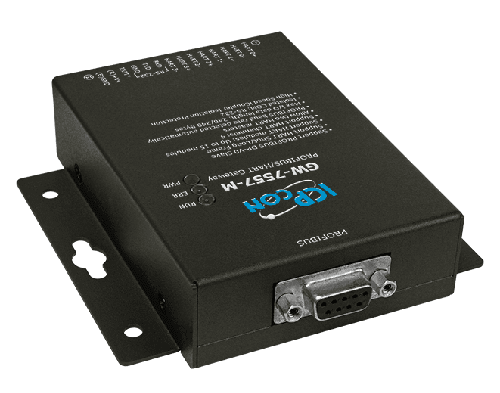

GW-7557-M PROFIBUS to HART Gateway, Metal Case, DP-V0 Slave
PROFIBUS DP-V0 slave gateway that gives a PROFIBUS master access to HART field devices across 4 channels, in a metal DIN-rail housing.
- PROFIBUS DP-V0 slave with automatic transmission rate detection up to 12 M
- Four HART channels with point-to-point and multi-drop operation
- Connects up to 15 HART modules and allows two HART masters
- Short and long HART frame support and HART burst mode
- Up to 240 bytes of input and 240 bytes of output data
- Slave address 0~126 set by DIP switch or EEPROM
5 235,80 kr per stk.
| 1–9 stk. | 5 235,80 kr | |
|---|---|---|
| 10–30 stk. | 5 079,98 kr | −3 % |
| 31+ stk. | 4 976,09 kr | −5 % |
Produktinformasjon "GW-7557-M PROFIBUS to HART Gateway, Metal Case, DP-V0 Slave"
GW-7557-M is a PROFIBUS DP-V0 slave gateway for bringing HART devices onto a PROFIBUS network. The PROFIBUS master reads and writes data from HART slave devices such as transmitters, actuators and current output instruments, so existing HART equipment can be integrated without replacing it.
The gateway offers four HART channels, supports point-to-point and multi-drop HART operation, and allows two HART masters. Up to 15 HART modules can be connected, and burst mode is supported. Configuration is handled with the utility software supplied by the manufacturer.
The metal-case version (-M) suits panel and DIN-rail installations in industrial automation, factory automation and process automation. It provides 2500 Vrms network isolation and 3000 VDC isolation on the PROFIBUS side, with an operating range of -25 ~ +75 °C.
Applications
- Industrial Automation
- Factory Automation
- Process Automation
| Product type: | Gateway |
|---|---|
| Interface: | HART, PROFIBUS, RS-232 |
| Protocol: | HART, PROFIBUS DP-V0 |
| Ports: | 4 HART channels |
| Isolation: | 2500 Vrms, 3000 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Watchdog IC CPU built-in |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| COM Ports | |
| Ports | RS-232 3-pin screwed terminal block (RxD, TxD, GND) |
| Baud Rate | Up to 115200 |
| Parity | None, Even, Odd |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| HART | |
| Ports | 4 channels |
| PROFIBUS | |
| Controller | Profichip VPC3+C |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 |
| Power | |
| Consumption | 2.0 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 96 x 33 x 119 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +85 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
