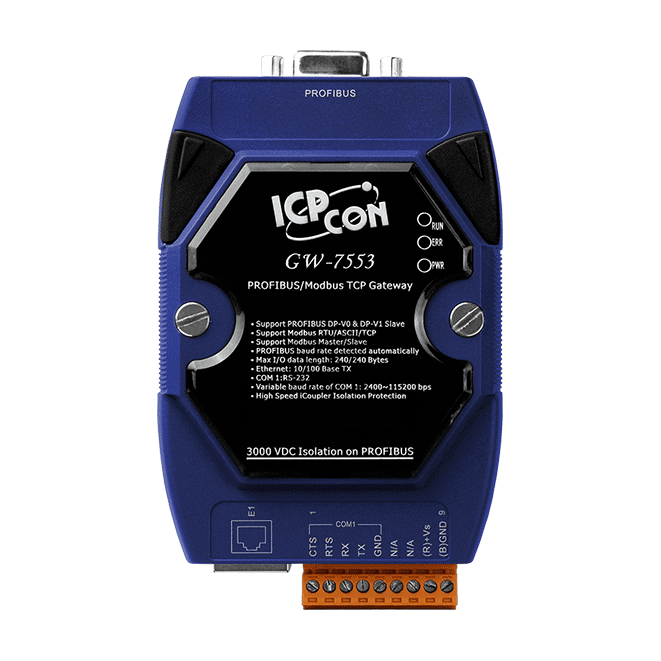

GW-7553-B PROFIBUS DP to Modbus TCP Gateway, Plastic Case
PROFIBUS DP-V0/DP-V1 slave to Modbus TCP gateway in a plastic DIN-rail housing, letting a PROFIBUS master reach Modbus TCP devices without reprogramming them.
- PROFIBUS DP-V0 and DP-V1 slave interface with automatic transmission rate detection
- Up to 240 bytes of input data and 240 bytes of output data
- Modbus Master or Slave mode with RTU, ASCII and TCP format support
- Station address 0 to 126, set by DIP switch or EEPROM
- Built-in web server for configuration through a web browser
- 2500 Vrms network isolation and 3000 VDC isolation on the PROFIBUS side
3 854,13 kr per stk.
| 1–9 stk. | 3 854,13 kr | |
|---|---|---|
| 10–30 stk. | 3 739,86 kr | −3 % |
| 31+ stk. | 3 667,14 kr | −5 % |
Produktinformasjon "GW-7553-B PROFIBUS DP to Modbus TCP Gateway, Plastic Case"
GW-7553-B bridges a PROFIBUS DP network and Modbus TCP devices. It presents itself as a DP-V0 and DP-V1 slave to the PROFIBUS master, so existing PROFIBUS control systems can read and write data from Modbus TCP equipment such as PLCs, sensors and I/O modules.
Each direction carries up to 240 bytes of input and output data. The Modbus side supports Master and Slave modes and the RTU, ASCII and TCP formats. The PROFIBUS transmission rate is detected automatically, and the station address (0 to 126) is set either by DIP switch or stored in EEPROM.
The unit has a built-in web server, so it can be configured from a standard web browser. An RS-232 port is provided for firmware and configuration updates. Electrical isolation is rated at 2500 Vrms for the network side and 3000 VDC on the PROFIBUS side, and the module is designed for an operating range of -25 ~ +75 ℃.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Gateway |
|---|---|
| Interface: | Ethernet, PROFIBUS, RS-232 |
| Protocol: | Modbus TCP, PROFIBUS DP-V0/DP-V1 |
| Isolation: | 2500 Vrms (network), 3000 VDC (PROFIBUS) |
| Operating temperature: | -25 ~ +75 ℃ |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Watchdog IC CPU built-in |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| Ethernet | |
| Ports | 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |
| COM Ports | |
| Ports | RS-232 (For updating firmware and configuration) 5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND ) |
| Baud Rate | 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Parity | None, Even, Odd |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| PROFIBUS | |
| Controller | Profichip VPC3+C |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 & DP-V1 |
| Power | |
| Consumption | 2.5 W |
| Mechanical | |
| Dimensions (mm) | 72 x 33 x 119 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +85 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
