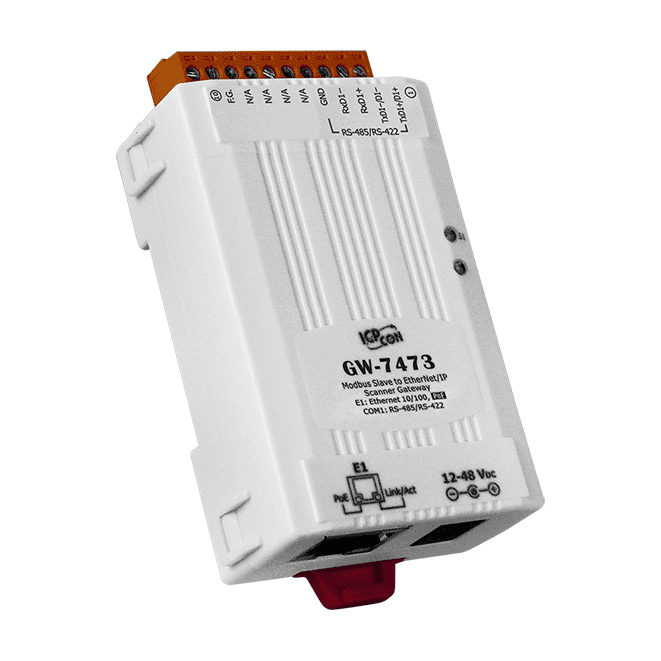

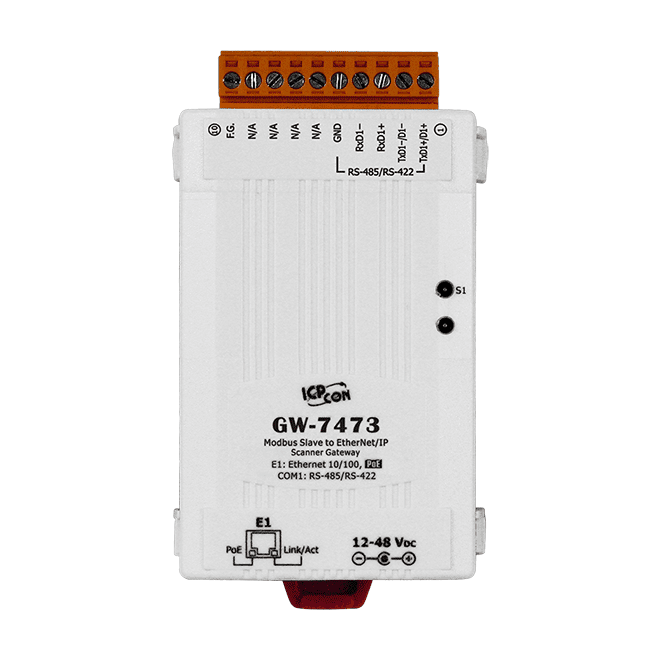

GW-7473 Modbus Slave to EtherNet/IP Scanner Gateway with PoE and RS-422/485
Modbus TCP/RTU slave to EtherNet/IP scanner gateway with PoE and one RS-422/485 port, passing register data between Modbus masters and EtherNet/IP adapters.
- Bridges an EtherNet/IP scanner with Modbus TCP server and Modbus RTU slave interfaces
- Class 1 (connected) I/O server and client, up to 5 EtherNet/IP adapter connections, 200-byte I/O command data size
- Serves up to 5 Modbus TCP clients over 10/100 Base-TX Ethernet
- Modbus RTU slave on 2-wire RS-485 or 4-wire RS-422, function codes 01, 02, 03, 04, 0F and 10
- IEEE 802.3af Class 1 PoE with a DC adapter as redundant backup supply
- Removable 10-pin terminal block and firmware updates via Ethernet
1 558,28 kr per stk.
| 1–9 stk. | 1 558,28 kr | |
|---|---|---|
| 10–30 stk. | 1 506,33 kr | −3 % |
| 31+ stk. | 1 475,17 kr | −5 % |
Produktinformasjon "GW-7473 Modbus Slave to EtherNet/IP Scanner Gateway with PoE and RS-422/485"
The GW-7473 CR lets a Modbus master read and write data held by EtherNet/IP adapters without custom programming. Register data read from the adapters is presented as input registers to Modbus TCP clients and Modbus RTU masters, while output data written by those masters is passed on to the adapter registers.
Its compact DIN-rail housing (52 x 27 x 77.4 mm) suits tight control cabinets, and it can be mounted close to a serial device or fitted into a machine. Power can come from a PoE switch over a standard Category 5 cable, meeting IEEE 802.3af Class 1, or from a DC adapter. The two supplies are redundant, so the unit stays powered if one source fails.
The gateway is rated for an operating range of -25 ~ +75 ℃ and is suitable for control, building automation, factory automation and distributed data acquisition projects.
Applications
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
| Product type: | Gateway |
|---|---|
| Interface: | Ethernet, RS-422/485 |
| Protocol: | EtherNet/IP, Modbus RTU, Modbus TCP |
| Ports: | 2 |
| PoE: | IEEE 802.3af, Class 1 |
| Power input: | PoE or DC adapter |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 32-bit MCU |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| Protocol | EtherNet/IP (Scanner) and Modbus TCP server |
| COM Ports | |
| Ports | 2-wire RS-485 4-wire RS-422 10-Pin Removable Terminal Block x 1 |
| Protocol | Modbus RTU slave |
| Power | |
| Consumption | 0.05 A @ 24 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 27 x 77.4 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
