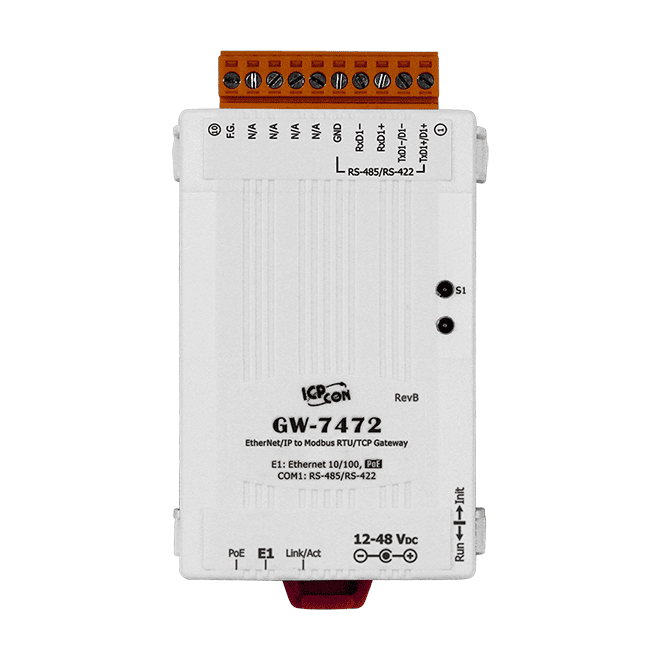

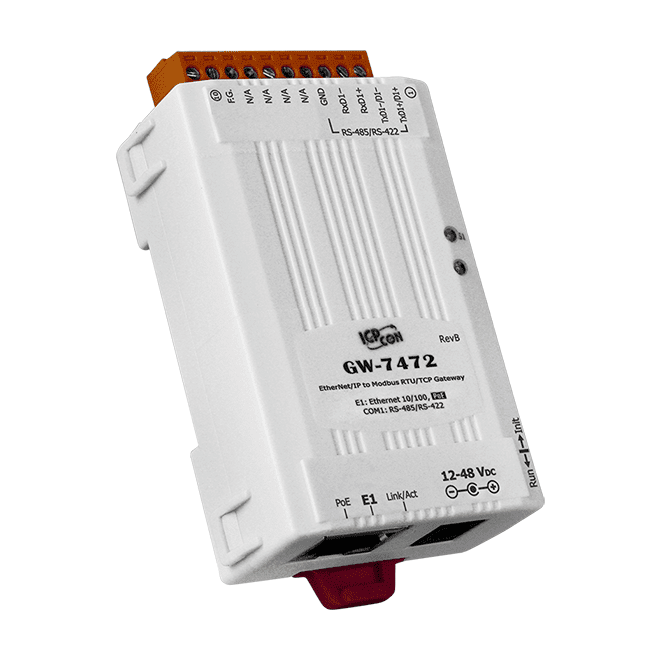

GW-7472 EtherNet/IP to Modbus RTU/TCP Gateway, PoE, 1x RS-422/485
EtherNet/IP adapter to Modbus RTU master and Modbus TCP client gateway with PoE and one RS-422/485 port, for DIN-rail mounting in industrial data exchange.
- EtherNet/IP adapter with Modbus RTU master and Modbus TCP client functions in one gateway
- Modbus RTU master on a 2-wire RS-485 or 4-wire RS-422 port with removable 10-pin terminal block
- Up to 30 Modbus RTU commands, 10 Modbus TCP servers and 8 Modbus commands per TCP server
- Supported Modbus RTU function codes 01, 02, 03, 04, 0F and 10, with up to 240 bytes per command
- EtherNet/IP I/O command data up to 500 bytes, with 6 explicit and 1 implicit message connections
- IEEE 802.3af Class 1 PoE alongside a redundant DC power input
1 630,99 kr per stk.
| 1–9 stk. | 1 630,99 kr | |
|---|---|---|
| 10–30 stk. | 1 579,05 kr | −3 % |
| 31+ stk. | 1 547,89 kr | −5 % |
Produktinformasjon "GW-7472 EtherNet/IP to Modbus RTU/TCP Gateway, PoE, 1x RS-422/485"
The GW-7472 CR links EtherNet/IP, Modbus RTU and Modbus TCP networks, so an EtherNet/IP scanner can exchange register data with Modbus RTU slaves and Modbus TCP servers through one device. Register values read from the Modbus side are presented as input data to the scanner, and output data from the scanner is written back to the Modbus registers.
The Modbus RTU master port supports 2-wire RS-485 and 4-wire RS-422. The Ethernet port provides IEEE 802.3af Class 1 Power over Ethernet, and a DC adapter can serve as an alternative supply. The two power inputs are redundant, so if one fails the other takes over.
The compact housing suits installations where space is limited, such as mounting close to a serial device or within a machine. The unit is designed for DIN-rail installation and includes a removable terminal block connector.
Applications
- Control system
- Building automation
- Factory automation
- Distributed data acquisition
| Product type: | Gateway |
|---|---|
| Interface: | Ethernet, RS-422/485 |
| Protocol: | EtherNet/IP, Modbus RTU, Modbus TCP |
| Ports: | 2 |
| PoE: | IEEE 802.3af, Class 1 |
| Power input: | PoE / DC adapter |
| Operating temperature: | -25 ~ +75 ℃ |
| Mounting: | DIN-rail |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 32-bit MCU |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| Protocol | EtherNet/IP (Adapter) and Modbus TCP client |
| COM Ports | |
| Ports | 2-wire RS-485 4-wire RS-422 10-Pin Removable Terminal Block x 1 |
| Protocol | Modbus RTU master |
| Power | |
| Consumption | 0.05 A @ 24 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 27 x 77.4 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
