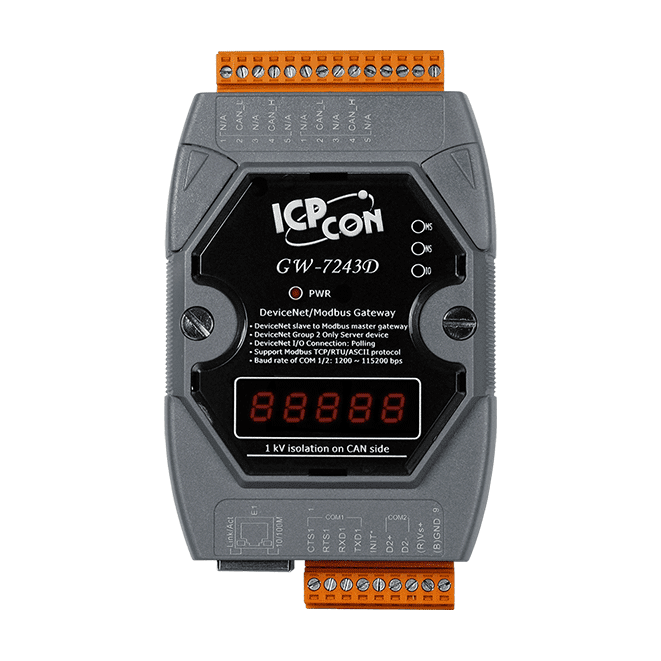

GW-7243D-G DeviceNet Slave / Modbus Master Gateway
DeviceNet slave and Modbus master gateway for the GW-7243D-G CR. It lets a DeviceNet master poll Modbus TCP, RS-232 and RS-485 slave devices through one module.
- DeviceNet slave to Modbus master gateway, compliant with DeviceNet Volume I and II, Release 2.0
- Group 2 Only Server DeviceNet subscriber with Offline Connection Set and Device Shutdown Message support
- Simultaneous Modbus TCP client and Modbus RTU/ASCII master operation
- Ethernet (RJ-45, 10/100Base-T(X)), RS-232 and RS-485 ports for Modbus slave devices
- Explicit and I/O length up to 240 bytes; one Explicit and one Polled Command/Response connection
- Configuration utility with EDS file generation
3 739,86 kr per stk.
| 1–9 stk. | 3 739,86 kr | |
|---|---|---|
| 10–30 stk. | 3 625,59 kr | −3 % |
| 31+ stk. | 3 552,87 kr | −5 % |
Produktinformasjon "GW-7243D-G DeviceNet Slave / Modbus Master Gateway"
GW-7243D-G CR connects Modbus slave devices to a DeviceNet network. On the DeviceNet side it operates as a Group 2 Only Server and waits for the DeviceNet master to establish its connections. On the Modbus side it acts as the master, cyclically issuing commands to the slave devices it is configured to read and write.
Modbus TCP client and Modbus RTU/ASCII master interfaces run at the same time, so slave devices with an Ethernet, RS-232 or RS-485 interface can all be mapped into one DeviceNet installation. This removes the need for a separate gateway for each communication type.
A GW-7243D Utility tool is supplied for configuration and for generating the EDS file, which helps speed up commissioning of the DeviceNet and Modbus setup.
Applications
- Production cells and automated manufacturing lines
- Food and beverage packing and bottling lines
- Brewery equipment
- Bakery and dinnerware production
- HVAC module production
- Rolling steel door and overhead storage bin production
- LCD manufacturing plant automation
| Product type: | Gateway |
|---|---|
| Interface: | DeviceNet, Modbus TCP, RS-232, RS-485 |
| Protocol: | DeviceNet, Modbus ASCII, Modbus RTU, Modbus TCP |
| Ports: | 1 x RJ-45, 1 x RS-232, 1 x RS-485, 1 x DeviceNet |
| Isolation: | 1000 VDC (DC-to-DC), 2500 Vrms (photo-couple) |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power 2 x DeviceNet status |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-T(X) (Auto-negotiating, Auto_MDIX) |
| Protocol | Modbus TCP |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 |
| Protocol | Modbus ASCII / Modbus RTU |
| Parity | None, Even, Odd |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| DeviceNet | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Connection Supported | 1 connection for Explicit Messaging 1 connection for Polled I/O |
| Isolation | 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | Volume I, Release 2.0 & Volume II, Release 2.0 |
| Shutdown Message | Yes |
| Heartbeat Message | Yes |
| Subscribe | Group 2 Only Server |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2.5 W |
| Mechanical | |
| Dimensions (mm) | 72 x 122 x 33 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
