GW-2515iM Modbus TCP to RTU/ASCII Gateway, 2-port Ethernet Switch
Cybersecurity gateway that converts Modbus TCP to Modbus RTU/ASCII, with a 2-port Ethernet switch for daisy-chain wiring and one isolated RS-422/485 serial port.
- Converts Modbus TCP to Modbus RTU/ASCII, with master and slave support on both sides
- Up to 32 TCP masters per serial port, with a read-cache for faster Modbus TCP/UDP responses
- 2-port 10/100 Base-TX Ethernet switch with auto-MDI/MDIX and LAN bypass for daisy-chain networks
- Modbus/TCP Security, HTTPS and SNMPv3 support, plus IP address filtering
- Dual-stack IPv4/IPv6 with static IP or DHCP configuration
- 1 x isolated RS-422/485 port, up to 115200 bps, with 1 kΩ bias resistor
3 822,97 kr per stk.
| 1–9 stk. | 3 822,97 kr | |
|---|---|---|
| 10–30 stk. | 3 708,69 kr | −3 % |
| 31+ stk. | 3 635,98 kr | −5 % |
Produktinformasjon "GW-2515iM Modbus TCP to RTU/ASCII Gateway, 2-port Ethernet Switch"

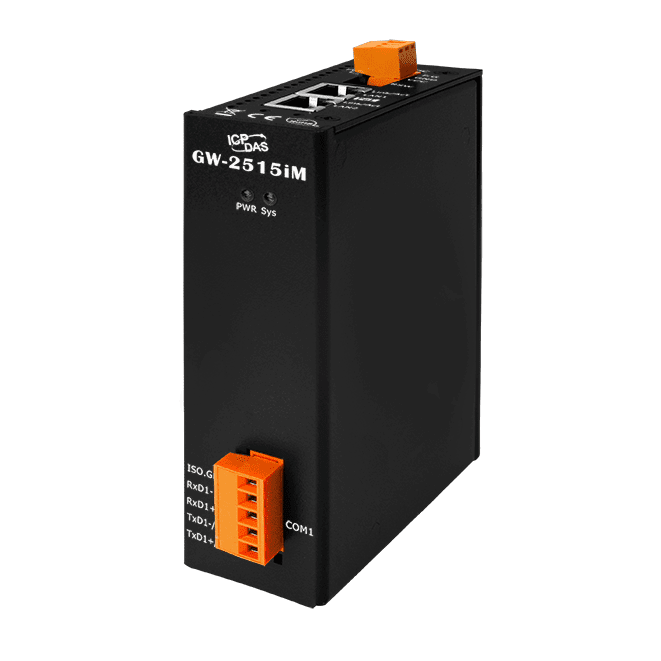

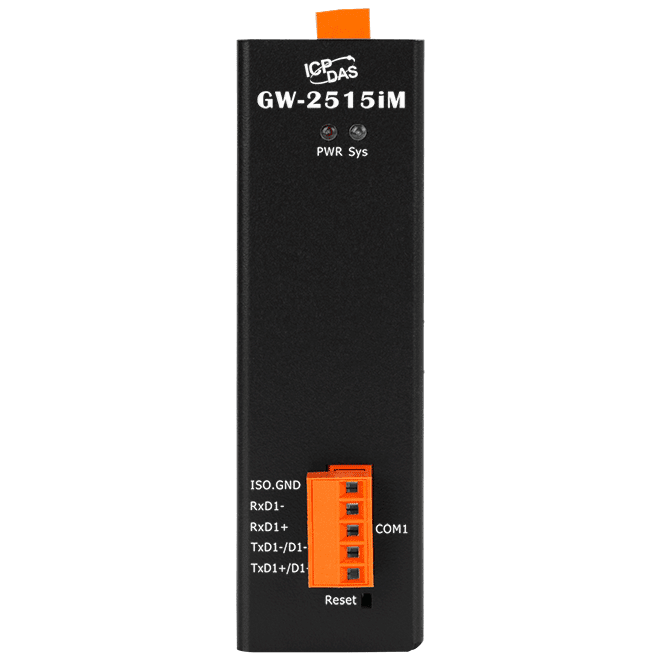

GW-2515iM CR is a Modbus TCP to Modbus RTU/ASCII gateway for connecting Ethernet-based supervisory systems to serial field devices on RS-422/485 networks. Its built-in web server, reached through a standard browser over HTTP or HTTPS, lets engineers configure the unit without dedicated software.

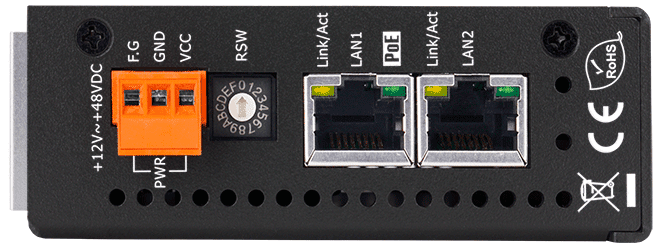

The two Ethernet ports form a daisy-chain topology, which reduces cabling and switch count. If power is lost on a module, the LAN bypass engages automatically so Ethernet traffic continues through the chain. Security options include Modbus/TCP Security, HTTPS, SNMPv3 and IP address filtering to allow or block specific hosts.

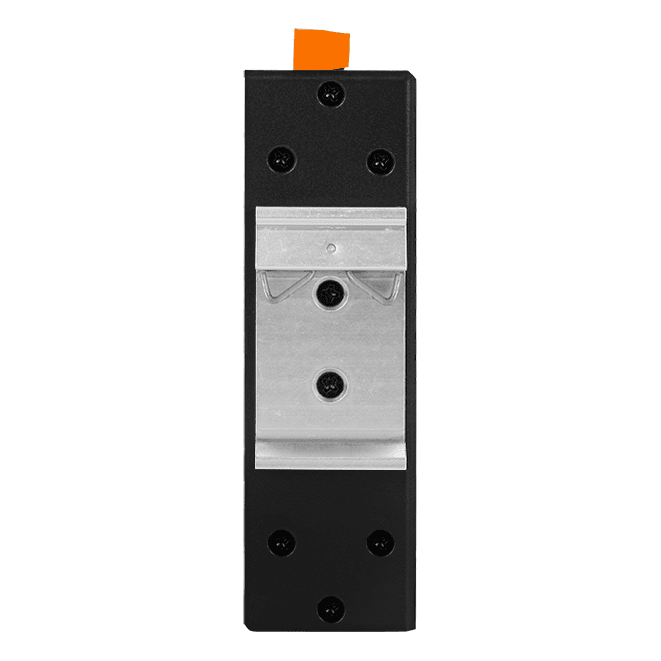

The unit has a metal DIN-rail housing and accepts either a +12 ~ 48 VDC terminal-block supply or PoE (IEEE 802.3af, Class 2), with an operating range of -25 ~ +75 °C.
Applications
- Factory automation
- Building and home automation
- Remote diagnosis and management
- Solar monitoring
| Product type: | Gateway |
|---|---|
| Interface: | RS-422/485 |
| Protocol: | Modbus TCP |
| Ports: | 2 x Ethernet, 1 x RS-422/485 |
| PoE: | Yes (IEEE 802.3af, Class 2) |
| Isolation: | 1000 VDC power, 3000 VDC signal |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 32-bit MCU |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2 (Auto-negotiating, Auto-MDI/MDIX, LED indicator) |
| PoE | Yes (IEEE 802.3af, Class 2) |
| LAN bypass | Yes |
| Protocol | Modbus TCP, Modbus TCP/TLS, Modbus UDP, OPC UA, SNTP, HTTP/HTTPS, IPv4, IPv6 |
| COM Ports | |
| Ports | 1 x RS-422/485 (1000 VDC for Power Isolation, 3000 VDC for Signal Isolation) |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 0.22 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 2 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 106 mm x 33 mm x 119 mm (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
