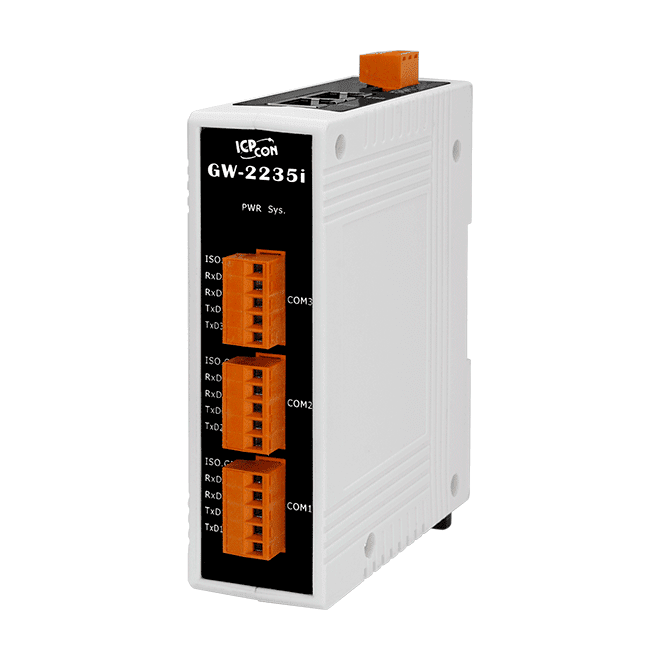

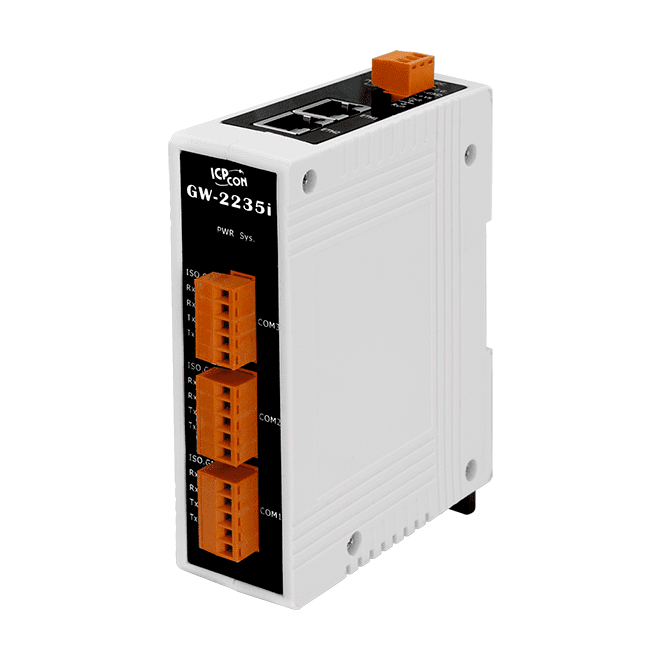

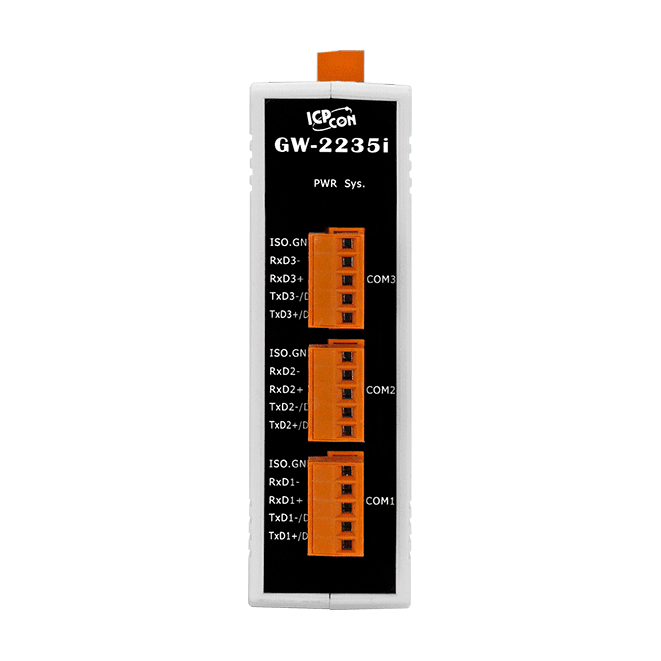

GW-2235i Modbus TCP to RTU/ASCII Gateway, 3-Port Isolated RS-422/485
Modbus TCP to RTU/ASCII gateway with a 2-port Ethernet switch and three isolated RS-422/485 serial ports, powered by PoE or +12 ~ 48 VDC for DIN-rail installation.
- Modbus TCP/UDP master and slave, and Modbus RTU/ASCII master and slave
- Up to 32 TCP connections (masters) per serial port
- Read-cache for faster Modbus TCP/UDP responses and reduced serial loading
- Three isolated RS-422/485 ports with 3000 VDC signal isolation and bias resistor (1 KΩ)
- Two 10/100 Base-TX Ethernet ports with built-in switch and PoE (IEEE 802.3af, Class 1)
- UDP responder for device discovery (UDP Search) and static IP or DHCP configuration
1 838,76 kr per stk.
| 1–9 stk. | 1 838,76 kr | |
|---|---|---|
| 10–30 stk. | 1 786,82 kr | −3 % |
| 31+ stk. | 1 745,27 kr | −5 % |
Produktinformasjon "GW-2235i Modbus TCP to RTU/ASCII Gateway, 3-Port Isolated RS-422/485"
The GW-2235i CR bridges Modbus TCP hosts and serial Modbus RTU/ASCII devices over Ethernet, removing the cable length limits of legacy serial networks. It suits SCADA and HMI systems that need to reach serial field devices without native Ethernet capability.
Each serial port accepts up to 32 TCP masters, and a read-cache stores previous requests and responses so repeated queries to the same slave are answered immediately. The two Ethernet ports allow daisy-chaining, and the unit can be powered over IEEE 802.3af Class 1 PoE or from a DC terminal block.
Isolation is provided on the serial side, with 3000 VDC signal isolation on the RS-422/485 ports. Configuration is handled through the built-in web server, which supports static IP or DHCP addressing and serial port settings. The unit is CE, UKCA, FCC, RoHS and WEEE listed.
Applications
- Factory, building and home automation
- Remote diagnosis and management
- Solar monitoring
| Product type: | Gateway |
|---|---|
| Interface: | Ethernet, RS-422/485 |
| Protocol: | Modbus ASCII, Modbus RTU, Modbus TCP |
| Ports: | 2 Ethernet, 3 RS-422/485 |
| PoE: | IEEE 802.3af, Class 1 |
| Isolation: | 3000 VDC signal |
| Power input: | PoE or +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| COM Ports | |
| Ports | 3 x RS-485/422 (1000 VDC for Power Isolation, 3000 VDC for Signal Isolation) |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 0.07 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 97 mm x 33 mm x 126 mm (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
