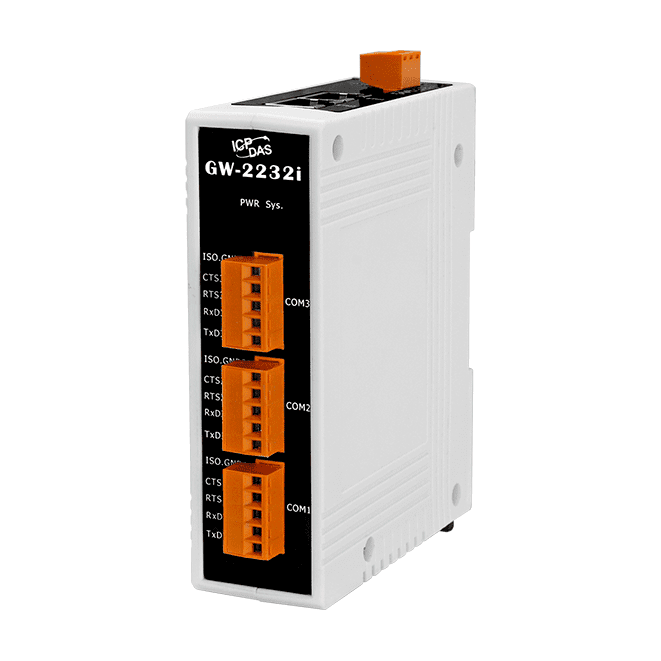

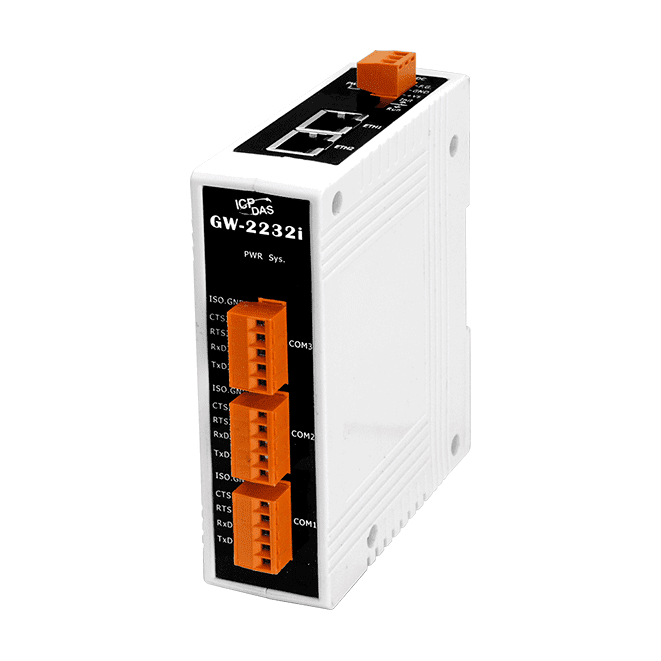

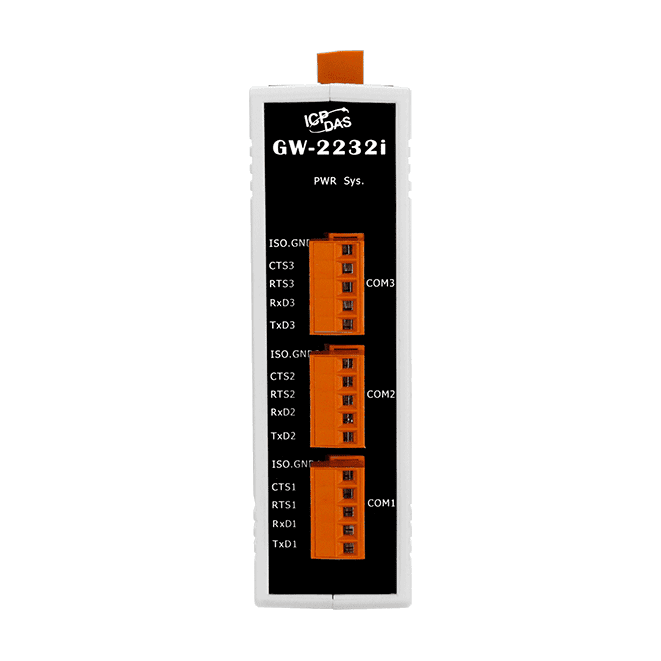

GW-2232i Modbus TCP to RTU/ASCII Gateway, 3-port Isolated RS-232
Modbus TCP to RTU/ASCII gateway with a 2-port Ethernet switch, PoE and three isolated RS-232 ports, for connecting Ethernet hosts to serial Modbus devices and bridging serial links over TCP/IP.
- Modbus TCP/UDP and Modbus RTU/ASCII, master and slave modes
- Up to 32 TCP connections (masters) per serial port
- Read-cache for faster Modbus TCP/UDP responses and reduced serial loading
- Pair-connection, serial-bridge and serial-tunnel operation over TCP/IP
- Static IP or DHCP network configuration with built-in HTTP web server
- Serial settings up to 115200 bps, with selectable parity, data and stop bits
2 004,98 kr per stk.
| 1–9 stk. | 2 004,98 kr | |
|---|---|---|
| 10–30 stk. | 1 942,65 kr | −3 % |
| 31+ stk. | 1 901,10 kr | −5 % |
Produktinformasjon "GW-2232i Modbus TCP to RTU/ASCII Gateway, 3-port Isolated RS-232"
The GW-2232i CR is a Modbus TCP to RTU/ASCII gateway that lets a Modbus TCP host communicate with serial Modbus RTU or ASCII devices over Ethernet, removing the cable length limits of legacy serial networks. It supports Modbus TCP/UDP and Modbus RTU/ASCII in both master and slave roles, with up to 32 TCP connections (masters) per serial port.
Beyond simple protocol conversion, the unit can be configured as a pair-connection, serial-bridge or serial-tunnel, routing data over TCP/IP between two serial Modbus devices. Its read-cache stores previous requests and responses, so repeated requests to the same slave can be answered immediately, which reduces serial port loading and speeds up TCP responses. A built-in web server and UDP responder (UDP Search) support configuration and device discovery.
- Two 10/100 Ethernet ports allow daisy-chain wiring, with PoE (IEEE 802.3af, Class 1) or a 12 ~ 48 VDC terminal block as power source
- Three isolated RS-232 ports with 3000 VDC signal isolation and 1000 VDC power isolation
Applications
- Factory automation
- Building and home automation
- Remote diagnosis and management
- Solar monitoring
| Product type: | Gateway |
|---|---|
| Interface: | Ethernet, RS-232 |
| Protocol: | Modbus ASCII, Modbus RTU, Modbus TCP |
| Ports: | 2 Ethernet, 3 RS-232 |
| PoE: | IEEE 802.3af, Class 1 |
| Isolation: | 3000 VDC signal |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| COM Ports | |
| Ports | 3 x 5-wire RS-232 (1000 VDC for Power Isolation, 3000 VDC for Signal Isolation) |
| Baud Rate | 115200 bps Max. |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Power | |
| Consumption | 0.07 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 97 mm x 33 mm x 126 mm (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
