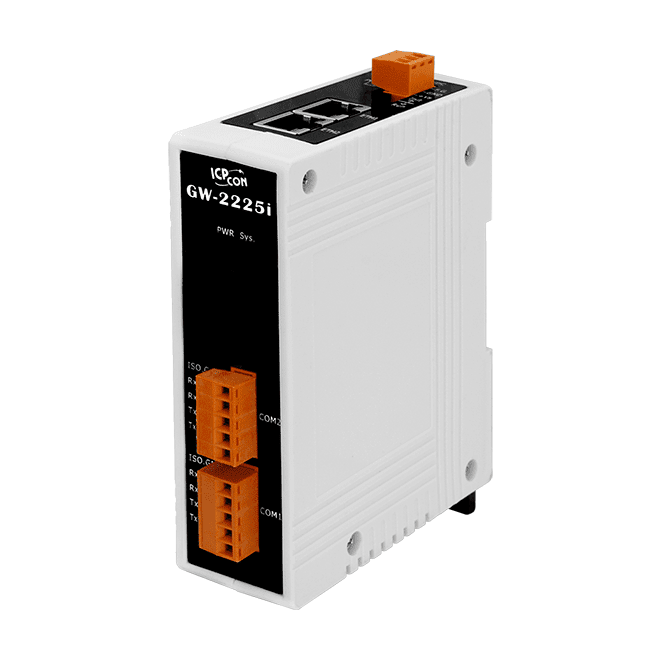

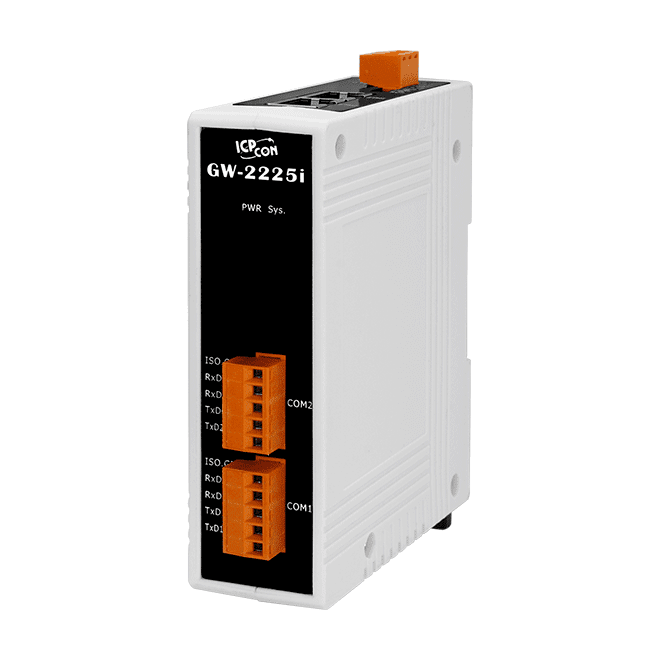

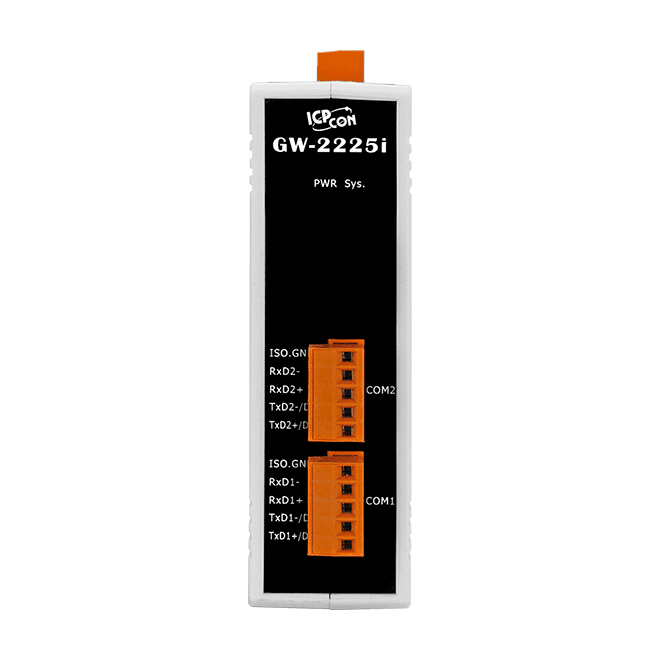

GW-2225i Modbus TCP to RTU/ASCII Gateway with 2-port Isolated RS-422/485
Modbus TCP to RTU/ASCII gateway with two Ethernet ports and two isolated RS-422/485 serial ports, for bringing serial Modbus devices onto Ethernet networks.
- Modbus TCP/UDP master and slave, and Modbus RTU/ASCII master and slave
- Up to 32 TCP connections (masters) per serial port
- Read-cache for faster Modbus TCP/UDP responses and reduced serial loading
- Two isolated RS-422/485 ports, 3000 VDC signal isolation, up to 115200 bps
- Two 10/100 Base-TX Ethernet ports with auto-MDI/MDIX for daisy-chaining
- PoE (IEEE 802.3af, Class 1) or +12 ~ 48 VDC terminal block power
1 786,82 kr per stk.
| 1–9 stk. | 1 786,82 kr | |
|---|---|---|
| 10–30 stk. | 1 734,88 kr | −3 % |
| 31+ stk. | 1 703,71 kr | −5 % |
Produktinformasjon "GW-2225i Modbus TCP to RTU/ASCII Gateway with 2-port Isolated RS-422/485"
The GW-2225i CR is a Modbus TCP to RTU/ASCII gateway that lets a Modbus TCP host communicate with serial Modbus RTU or ASCII devices over Ethernet. Serial devices are no longer limited by the cable lengths of legacy RS-422/485 wiring, which simplifies SCADA and supervisory architectures where field devices lack Ethernet capability.
Beyond host-to-device gatewaying, the unit can be configured as a pair-connection, serial-bridge or serial-tunnel, routing data over TCP/IP between two serial Modbus RTU/ASCII devices. A read-cache stores previous requests and responses, so repeated queries from several HMI or SCADA masters to the same slave are answered immediately, reducing serial bus loading. Two Ethernet ports allow daisy-chaining, and the unit can be powered via PoE (IEEE 802.3af, Class 1) or a +12 ~ 48 VDC terminal block.
The GW-2225i CR suits factory and building automation, remote diagnosis and management, and solar monitoring. Its dual watchdog, with separate CPU and host watchdogs, resets the processor if the firmware misbehaves or if host communication stops for a predefined timeout. The built-in web server provides configuration of DHCP or static addressing, gateway and mask settings, and serial port parameters.
Applications
- Factory automation
- Building and home automation
- Remote diagnosis and management
- Solar monitoring
| Product type: | Gateway |
|---|---|
| Interface: | Ethernet, RS-422/485 |
| Protocol: | Modbus TCP |
| Ports: | 2 Ethernet, 2 serial |
| PoE: | Yes (IEEE 802.3af, Class 1) |
| Isolation: | 3000 VDC signal, 1000 VDC power |
| Power input: | +12 ~ 48 VDC, PoE |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| COM Ports | |
| Ports | 2 x RS-485/422 (1000 VDC for Power Isolation, 3000 VDC for Signal Isolation) |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 0.07 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 97 mm x 33 mm x 126 mm (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
