GTM-205M-5GC Industrial 5G Modem with USB 3.1 Super Speed Plus Interface
Industrial 5G NR modem with USB 3.1 Super Speed Plus interface for sending data over 5G, 4G or 3G networks and receiving SMS from PAC and PC applications. RoHS compliant, for China.
- 5G SA/NSA and 4G/3G global band support
- USB 3.1 Super Speed Plus interface with Windows 10 x64 and Windows 11 drivers
- TCP server, TCP client and UDP client connections over 5G/4G
- Standard AT commands for control and SMS messaging
- Isolated digital input (3750 Vrms) that resets the system
- One RS-232 port for software reset, 115200 bps
10 004,13 kr per stk.
| 1–9 stk. | 10 004,13 kr | |
|---|---|---|
| 10–30 stk. | 9 702,86 kr | −3 % |
| 31+ stk. | 9 505,48 kr | −5 % |
Produktinformasjon "GTM-205M-5GC Industrial 5G Modem with USB 3.1 Super Speed Plus Interface"

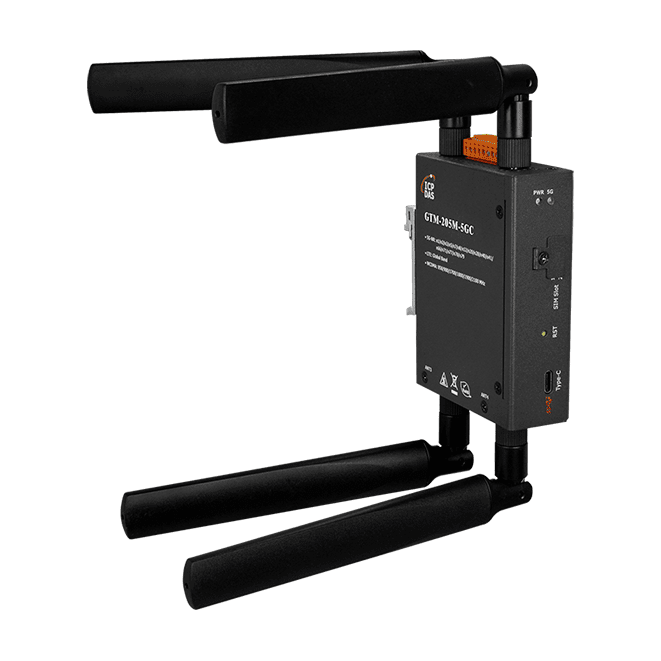

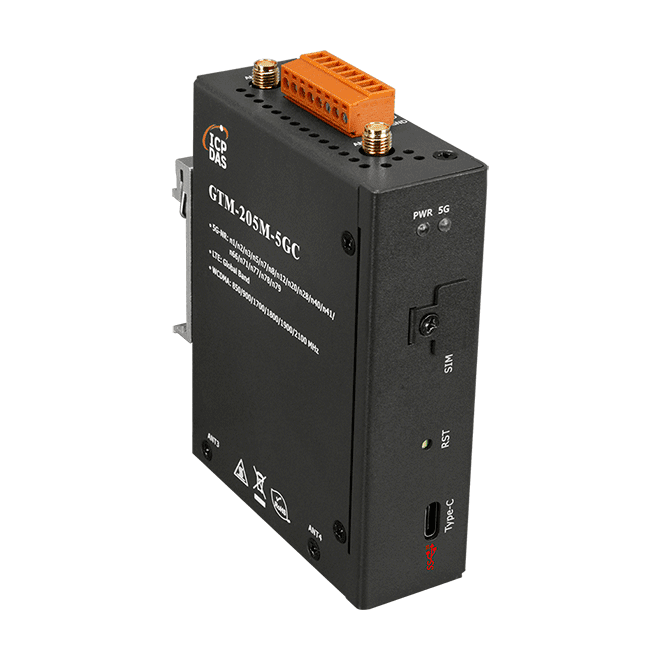

GTM-205M-5GC CR is a DIN-rail mounted industrial 5G modem that lets PAC and PC applications send and receive data over cellular networks. It supports 5G SA/NSA bands as well as 4G and 3G global bands, so a single unit can be used where the local network type varies.

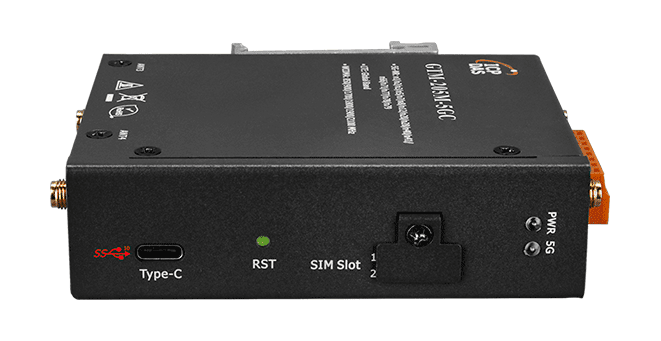

Connectivity is provided through a USB 3.1 Super Speed Plus interface, with a single RS-232 port for a software-initiated system reset. The modem supports standard AT commands and can open TCP server, TCP client and UDP client connections over 5G or 4G. A digital input, isolated to 3750 Vrms, can be used to reset the system.
This variant is the RoHS compliant version for China. The metal casing and an operating range of -25 ~ +70 °C suit cabinet installations where a compact cellular link is required.
- 5G SA/NSA and 4G/3G global band support
- USB 3.1 Super Speed Plus interface, drivers for Windows 10 x64 and Windows 11
- TCP server, TCP client and UDP client connections over 5G/4G
- Standard AT command set for control and SMS
- Isolated digital input for system reset, 3750 Vrms
- Metal DIN-rail housing, 28 x 78.5 x 100 mm
Applications
- Remote data transfer from PAC and PC applications over cellular networks
- SMS-based messaging from automation systems
- Cellular connectivity for distributed or remote industrial sites
| Product type: | 5G modem |
|---|---|
| Interface: | RS-232, USB 3.1 Super Speed Plus |
| Protocol: | AT commands, TCP, UDP |
| Digital inputs: | 1 |
| Ports: | 1 x RS-232 |
| Isolation: | 3750 Vrms |
| Operating temperature: | -25 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Spesifikasjoner
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x 5G |
| 3G System | |
| Frequency Band | B1/B2/B3/B4/B5/B6/B8/B19 |
| 4G System | |
| Data Transmission Rate | FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/ B30/B32/B66/B71 TDD: B34/B38/B39/B40/B41/B42/B48 |
| 5G System | |
| Frequency Band | n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79 |
| Reset Input | |
| Type | Isolated, 3750 Vrms |
| ON Voltage Level | +3.5 VDC ~ +30 VDC |
| OFF Voltage Level | +1 VDC max.T40 |
| Input Impedance | 3 kΩ, 0.25W |
| COM Ports | |

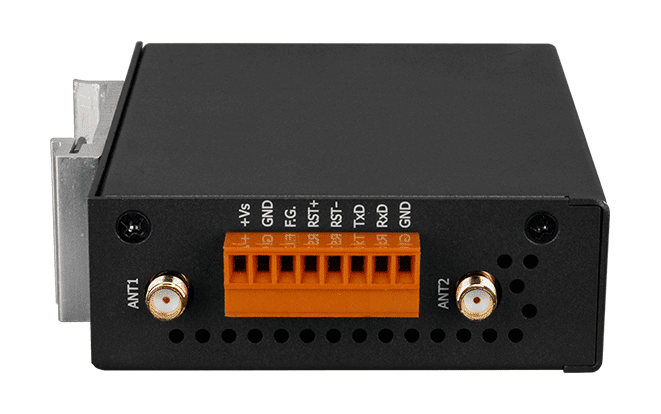

| Ports | 1 x RS-232 (RxD, TxD, GND. Only for software reset system.) |
| Baud Rate | 115200 bps |
| USB | |
| Specification | USB 3.1 (Super speed plus) |
| Driver | Windows 10_x64、Windows 11 |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 28 x 78.5 x 100 (W x L x H) |

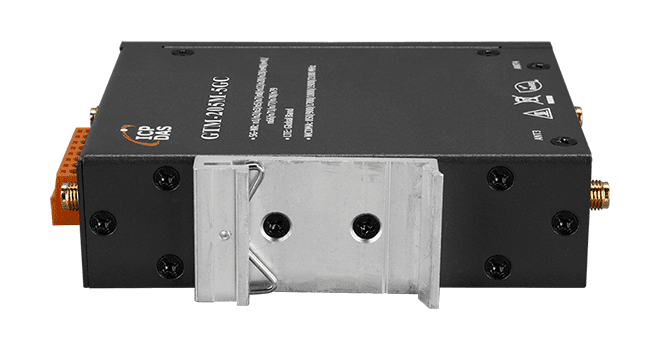

| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25℃ to 70℃ |
| Storage Temperature | -40℃ to 80℃ |
| Humidity | 5~90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
