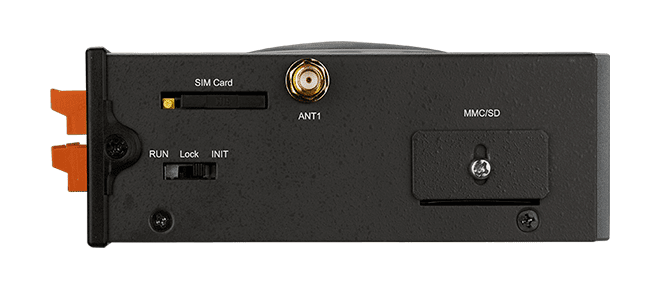

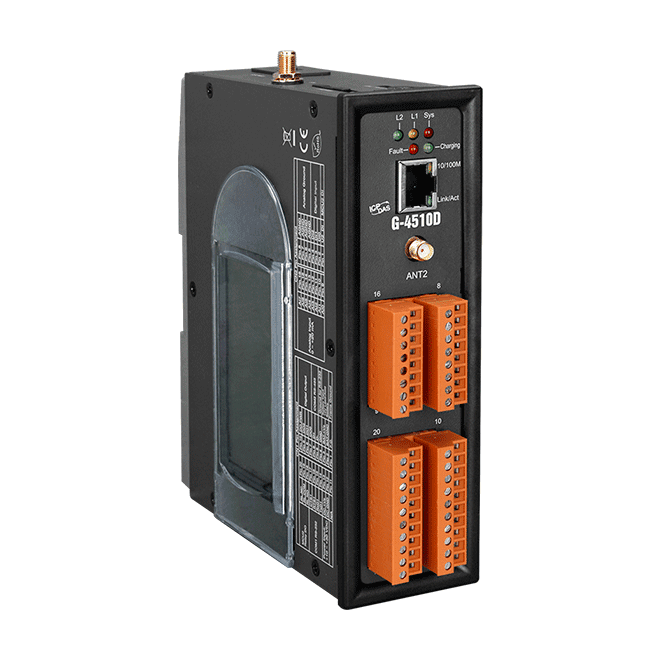

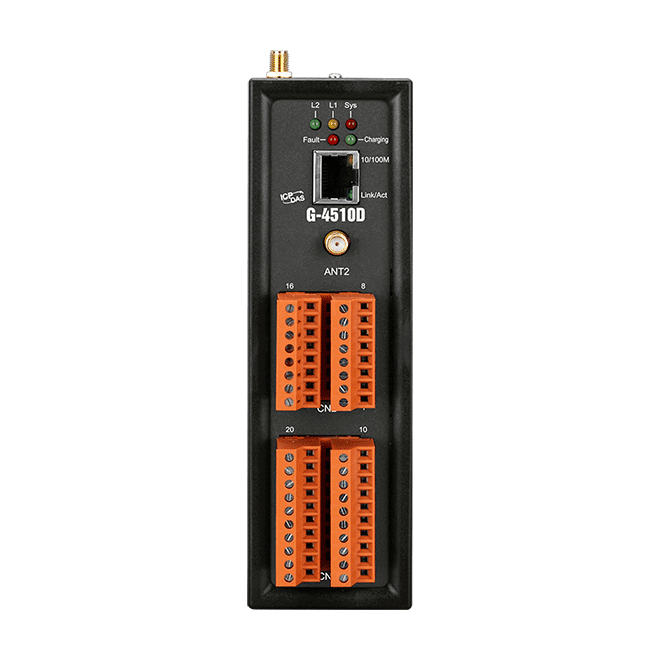

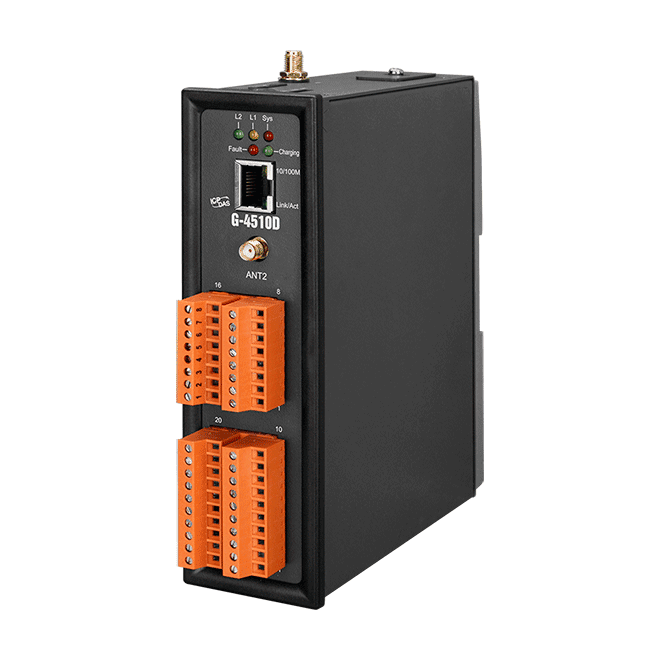

G-4510D Power Saving PAC with Solar Charger and LCD Display
Power-saving M2M PAC with a solar charger for 12 V lead-acid batteries, 8 analogue inputs, Ethernet, RS-232 and RS-485. Optional 4G/NB and GPS modules for remote monitoring and tracking.
- Solar charger for 12 V lead-acid batteries with low-voltage disconnect at 11.1 V and reconnect at 12.6 V
- 8 current analogue inputs (0 ~ 20 mA), 12-bit resolution, 2500 Vrms isolation
- 3 dry-contact digital inputs, 3 open-collector NPN digital outputs and 1 Form C relay output
- 1 x RJ-45 10/100Base-T(X) Ethernet port plus 1 x RS-232 and 1 x RS-485 COM port
- Optional 4G modem (EC21-AU, EC25-E) or NB modem (BG96) for wireless data transmission
- Optional GPS with 32 channels and All-In-View tracking
5 755,23 kr per stk.
| 1–9 stk. | 5 755,23 kr | |
|---|---|---|
| 10–30 stk. | 5 578,62 kr | −3 % |
| 31+ stk. | 5 464,35 kr | −5 % |
Produktinformasjon "G-4510D Power Saving PAC with Solar Charger and LCD Display"
The G-4510D CR is a Mini-PAC for remote, battery-powered machine-to-machine sites where mains power is unavailable or impractical. Its built-in solar charger manages a 12 V lead-acid battery, and low-voltage disconnect and reconnect thresholds protect the battery from deep discharge. The ordering code adds the LCD display to the base G-4510 specification.
The unit combines 8 current analogue inputs, 3 dry-contact digital inputs, 3 open-collector digital outputs and a Form C relay output with an RJ-45 Ethernet port and both RS-232 and RS-485 serial ports. Optional 4G (EC21-AU or EC25-E) or NB (BG96) modules provide wireless data transmission, and an optional GPS module with 32-channel All-In-View tracking supports vehicle or maritime position tracking.
The embedded MiniOS7 operating system includes anti-virus protection, and TCP and UDP client connections are supported over 4G LTE. The device is built into a metal casing, is rated for -20 ~ +70 °C operation and mounts on DIN-rail or wall.
Applications
- Hydrologic and wind monitoring
- Mudslide monitoring
- Vehicle monitoring and tracking
- Maritime GPS tracking
| Product type: | Mini-PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | TCP, UDP |
| Digital inputs: | 3 |
| Digital outputs: | 3 |
| Relay outputs: | 1 |
| Analog inputs: | 8 |
| Ports: | 3 |
| Isolation: | 2500 Vrms (analogue inputs) |
| Power input: | 12 V lead-acid battery, charging input above +16 V |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80 MHz internal microprocessor |
| EEPROM | 16 KB, retention > 40 years. 1,000,000 erase/write cycles |
| Flash | 512KB |
| NVRAM | 31 bytes, battery backup, data valid up to 10 years |
| SRAM | 512KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week/month, month and year |
| Watchdog Timer | Yes |
| Lead Acid Battery Charger | |
| Battery Voltage | 12V Lead-Acid Battery |
| Charging Voltage | Voltage of Power Input must be over +16V |
| Low Voltage Protect | Low Voltage disconnect = 11.1V / Low Voltage reconnect = 12.6V |
| LED Indicators | |
| Status | 1 x System 1 x GPS 1 x 3G 1 x Charging / Fault |
| Analog Input | |
| Channels | 8 |
| Type | Current |
| Range | 0 ~ 20 mA |
| Resolution | 12 - bit |
| Accuracy | +/- 2 LSB (+/- 0.0097 mA) |
| Sampling Rate | 1 KHz max. (Read one channel). |
| Isolation | 2500Vrms 3000Dc to DC |
| Digital Input | |
| Channels | 3 |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Isolation | Non-isolated |
| Digital Output | |
| Channels | 3 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink(NPN) |
| Load Voltage | +30 VDC max. |
| Load Current | 100 mA max. |
| Isolation | Non-isolated |
| Relay Output | |
| Channels | 1 |
| Contact Rating | Form C: 2A @ 30 VDC 0.25 A @ 250 VAC |
| Mechanical Endurance | typ. 10^8 operations |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 |
| Power | |
| Consumption | Deep Sleep: < 10 mA @ 12VDC; Deep Sleep(With LCD): < 11 mA @ 12VDC; Sleep: < 15 mA@12VDC; Idle: 90 mA @ 24 VDC; Data Link: 150 ~ 400 mA (peak) @ 24 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 47 x 142 x 168 (W x L x H) |
| Installation | DIN-Rall and Wall mount |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5~90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
