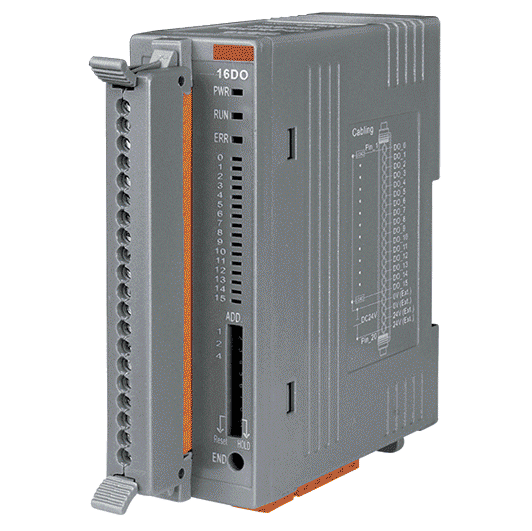

FR-2057iTA FRnet I/O Module, 16-ch Isolated PNP Digital Output
16-channel isolated PNP (source) digital output module on FRnet, running at 250 kbps over up to 400 m for daisy-chained remote I/O under PC, PAC or PLC control.
- 16 isolated PNP (source) digital outputs, 30 VDC maximum, 100 mA maximum load current
- FRnet bus at 250 kbps with up to 400 m transfer distance on twisted-pair cable
- Wire-saving FRnet DI/DO control with daisy-chained modules
- Fixed I/O scan time and I/O synchronisation across the network
- Supports broadcasting (1:n) and easy output duplication
- 3750 Vrms intra-module isolation
1 610,22 kr per stk.
| 1–9 stk. | 1 610,22 kr | |
|---|---|---|
| 10–30 stk. | 1 558,28 kr | −3 % |
| 31+ stk. | 1 527,11 kr | −5 % |
Produktinformasjon "FR-2057iTA FRnet I/O Module, 16-ch Isolated PNP Digital Output"

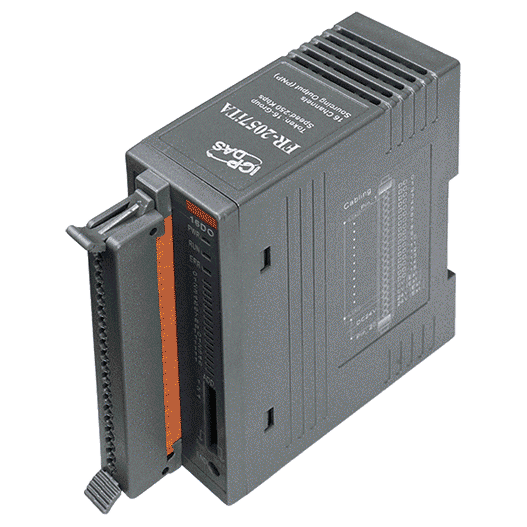

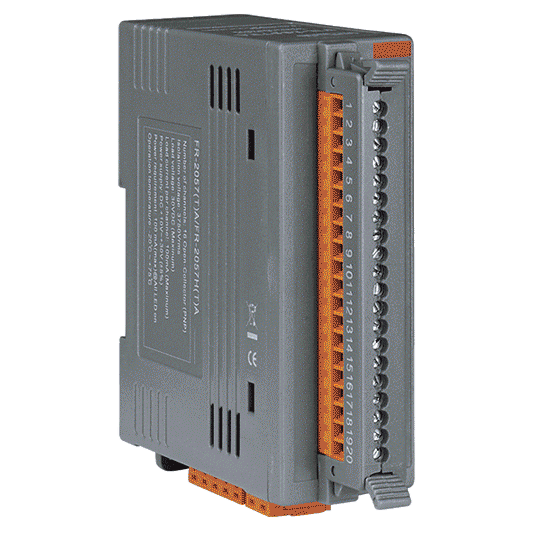

FR-2057iTA CR is a 16-channel digital output module that connects to a PC, PAC or PLC over the FRnet bus. Its outputs are PNP (source) type, rated up to 30 VDC and 100 mA, with each output isolated from the field side. It suits remote switching of actuators, indicators and other PNP-input loads where the output count, isolation and cable run are the deciding factors.

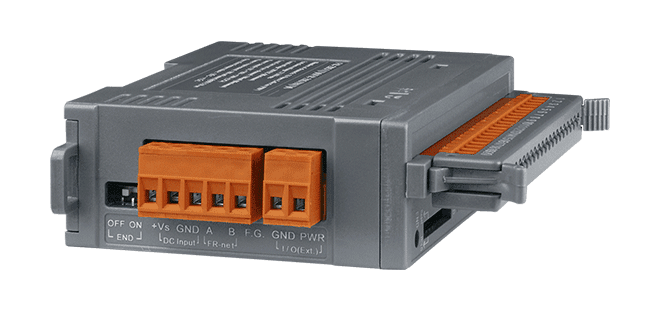

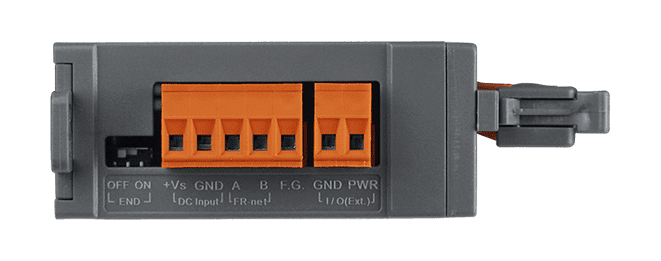

FRnet uses a two-wire twisted-pair cable, such as Belden 9841, and modules can be daisy-chained to extend the remote I/O. This ordering code is set to 250 kbps, which allows a maximum transfer distance of 400 m, with a cyclic time of 2.88 ms. The factory default of 1 Mbps, with a 100 m maximum distance and 0.72 ms cyclic time, is changed with DIP switches. Cable type can change the achievable distance.
The module takes a +10 to +30 VDC supply with reverse polarity protection and draws 2.4 W maximum. It is rated for 3750 Vrms intra-module isolation and passes EFT, ESD and surge tests to IEC 61000-4-4, -2 and -5. It is housed in plastic and mounts on a DIN rail, with an operating range of -25 to +75 °C. The product carries CE, UKCA, RoHS and WEEE marks.
Applications
- Remote digital output control from PC, PAC or PLC systems
- Distributed switching of PNP-input loads over a daisy-chained FRnet network
- Synchronised output updates in distributed automation
| Product type: | FRnet I/O Module |
|---|---|
| Interface: | FRnet |
| Protocol: | FRnet |
| Digital outputs: | 16 |
| Isolation: | 3750 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner

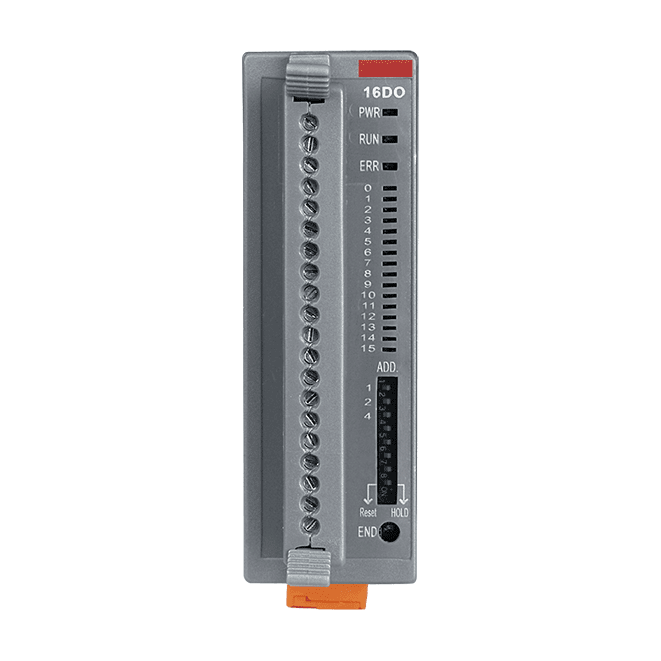

| Isolation | |
|---|---|
| Intra-module Isolation | 3750 Vrms |
| EMS Protection | |
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| Surge (IEC 61000-4-5) | Yes |
| LED Indicators | |
| Status | Power, Communication Run, Communication Error, Terminal Resistor, Digital Output |
| Digital Output | |
| Channels | 16 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Source (PNP) |
| Load Voltage | 30 VDC Max. |
| Load Current | 100 mA Max. |
| Isolation | 3750 Vrms |
| FRnet | |
| Wire Cable | 2-wire cabling Belden 9841 (2P twisted-pair cable), When different cables are used, the transmission distance may change |
| Transfer Speed | 250 kbps and 1 Mbps (Default) DIP Switch Settings |
| Transfer Distance | Max. 400 m for speed 250 kbps Max. 100m for speed 1Mbps (Default) |
| Cyclic Time | 2.88 ms for speed 250 kbps 0.72 ms for speed 1 Mbps (Default) |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC (Isolation) |
| Consumption | 2.4 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 102 x 107 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
