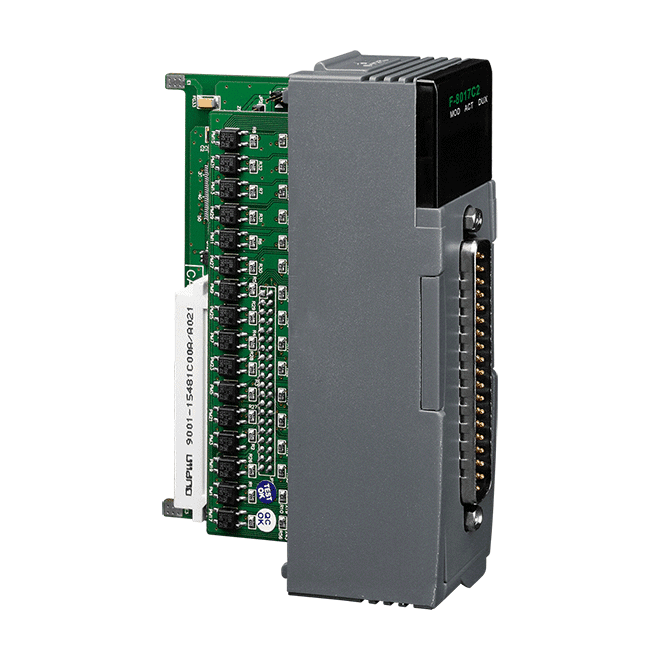

F-8017C2 Isolated 16-ch Current Input Redundant Module, 4 ~ 20 mA
16-channel isolated 4 ~ 20 mA analog input module with redundancy, 16-bit resolution and 1 kHz total sampling, for iDCS-8000 systems.
- 16 isolated current input channels for 4 ~ 20 mA signals
- 16-bit resolution with ±0.05% FSR accuracy
- 1k samples/sec total sampling rate across all channels
- 25% overrange measurement (accuracy not guaranteed)
- 3000 VDC isolation from input to backplane and to frame ground
- Redundancy with switching time below 100 us
5 879,89 kr per stk.
| 1–9 stk. | 5 879,89 kr | |
|---|---|---|
| 10–30 stk. | 5 703,29 kr | −3 % |
| 31+ stk. | 5 578,62 kr | −5 % |
Produktinformasjon "F-8017C2 Isolated 16-ch Current Input Redundant Module, 4 ~ 20 mA"
The F-8017C2 CR is a 16-channel analog differential input module for current loops. It measures 4 ~ 20 mA signals at 16-bit resolution with an accuracy of ±0.05% FSR, and it can report readings up to 25% over range, although accuracy is not guaranteed in that region.
Designed for the iDCS-8000 system, the module offers redundancy with a fast switching time below 100 us. Each input is isolated, with 3000 VDC between channels and the backplane bus, so a high voltage or current fault on one channel should not affect other components in the system.
Engineers choosing this variant get 16 channels sharing a total sampling rate of 1 kHz, overcurrent protection, and an operating range of -25 °C ~ +75 °C. It suits monitoring and control work in building, factory and machine automation, as well as remote maintenance, remote diagnosis and test equipment.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Analog Input Module |
|---|---|
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +75 °C |
Spesifikasjoner
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 x RUN, 1 x ACT, 1 x DUX and Communication (32 as channel 0~31 status) |
| Analog Input | |
| Channels | 16 |
| Type | 4 ~ 20 mA (Support ±25% overrange) |
| Range | -2500 ~ 12500 (0~24mA) |
| Resolution | 16 bit |
| Accuracy | ±0.05% FSR |
| Sampling Rate | 1k Samples/sec (Total) |
| Input Impedance | 230 Ω |
| Common Mode Rejection | 86 dB |
| Normal Mode Rejection | 100 dB |
| Overcurrent Protection | Yes |
| Zero Drift | ±20 μV/°C |
| Isolation | 3000 VDC |
| I/O Expansion | |
| I/O Type | DN-AIO-M |
| Power | |
| Consumption | 1.5 W |
| Mechanical | |
| Dimensions (mm) | 30 x 85 x 115 |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
