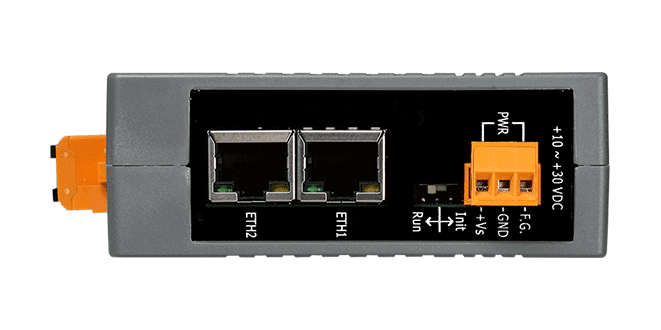

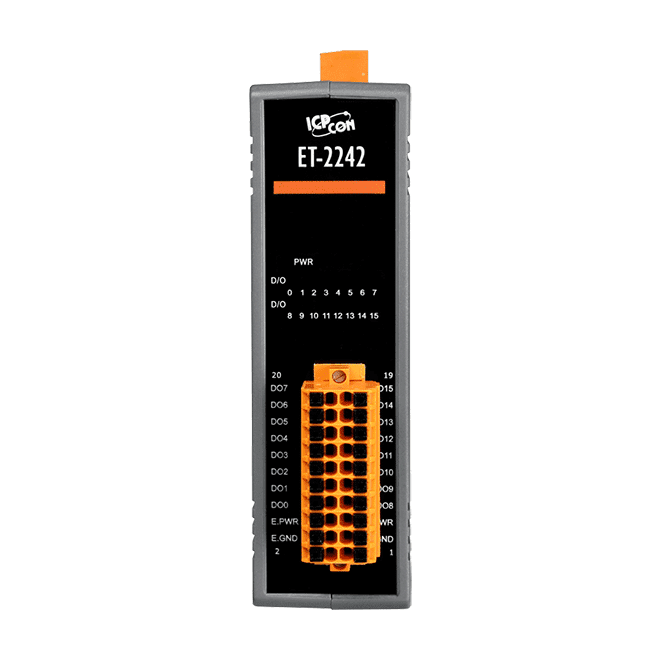

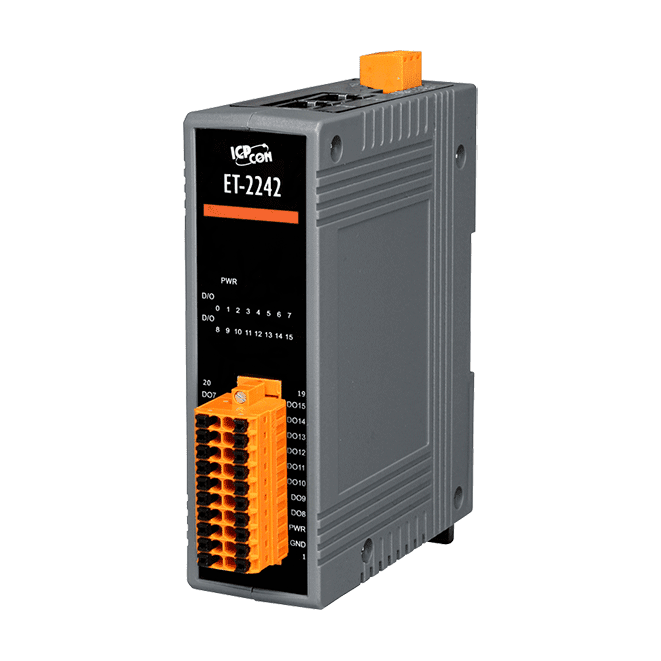

ET-2242 Ethernet I/O Module, 16-ch Digital Output (Sink) with 2-port Switch
16-channel sink-type digital output module with a built-in 2-port Ethernet switch for daisy-chain wiring, supporting Modbus TCP, MQTT and SNMP V2c.
- 16-channel digital output, sink type, 650 mA per channel
- Built-in 2-port 10/100 Base-Tx Ethernet switch with LAN bypass for daisy-chain wiring
- Modbus TCP/UDP, MQTT and SNMP V2c protocol support
- I/O pair connection (Push and Pull) between Ethernet-connected modules
- Programmable power-on value and safe value for digital outputs
- 3000 VDC I/O isolation and EMS (EFT/ESD/Surge) protection
2 056,92 kr per stk.
| 1–9 stk. | 2 056,92 kr | |
|---|---|---|
| 10–30 stk. | 1 994,59 kr | −3 % |
| 31+ stk. | 1 953,04 kr | −5 % |
Produktinformasjon "ET-2242 Ethernet I/O Module, 16-ch Digital Output (Sink) with 2-port Switch"
The ET-2242 CR is an Ethernet I/O module offering 16 open-collector digital outputs in sink configuration, with each channel rated for a 650 mA load. It suits engineers who need to switch a group of loads over Ethernet without a separate network device, as the built-in 2-port switch lets modules be daisy-chained along a line.
Beyond switching, the module can be configured to hold a programmable power-on value and safe value for its outputs. Its I/O pair connection function links local DO channels to DI channels on a remote module over Ethernet, with remote DI data written to local outputs in Pull mode via Modbus TCP. Dual-watchdog support, a built-in web server and password and IP filter access control add to its configuration and operational options.
For electrically demanding sites, the ET-2242 CR provides 3000 VDC I/O isolation and EMS (EFT/ESD/Surge) protection. Its MQTT publisher and subscriber capability and SNMP V2c support allow I/O status to be reported to brokers and network management software.
Applications
- Factory Automation
- Machine Automation
- Building Automation
- Remote Diagnosis & Maintenance
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT, SNMP V2c |
| Digital outputs: | 16 |
| Ports: | 2 |
| Isolation: | 3000 VDC (I/O) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit ARM |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±8 kV Contact for Each Terminal ±16 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±3 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Output | |
| Channels | 16 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 ~ +50 VDC |
| Load Current | 650 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A (with short-circuit protection) |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT, SNMP V2c |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 3.5 W (max.) |
| Powered from Terminal Block | +10 ~ +30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 126 x 108 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
