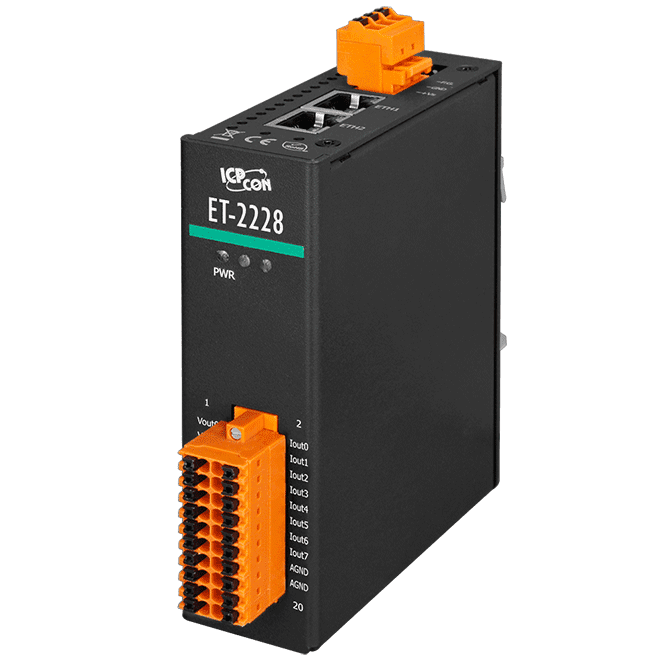

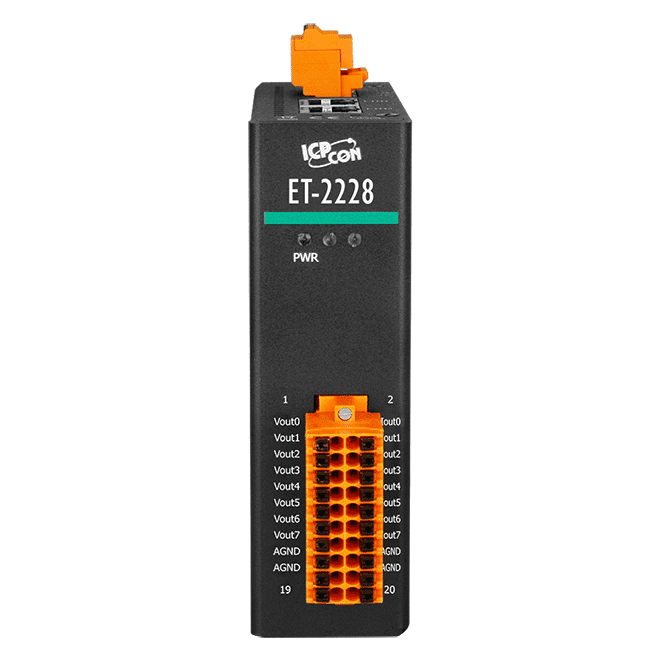

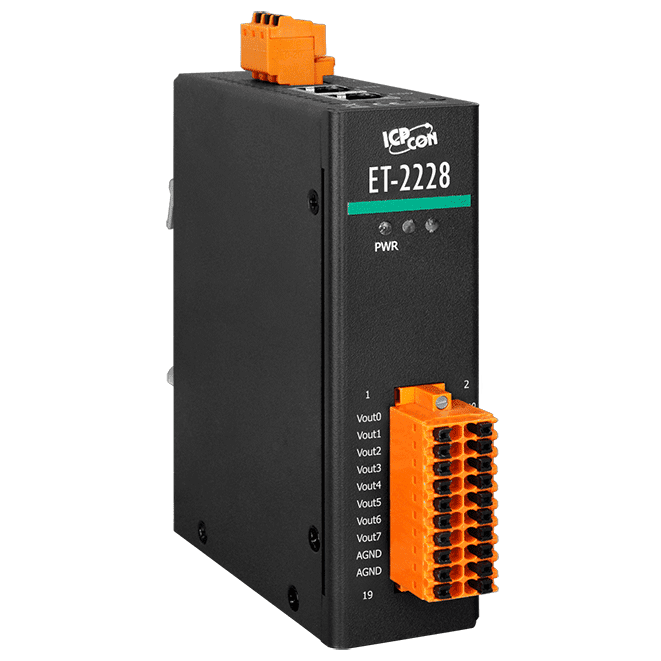

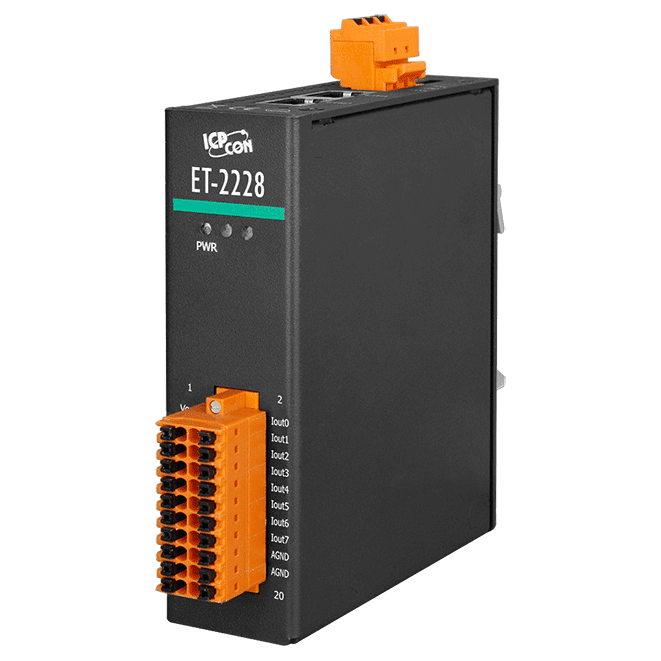

ET-2228 Ethernet I/O Module, 8-ch Analog Output with 2-port Switch
8-channel analogue output module with selectable voltage and current ranges, Modbus TCP/UDP, MQTT and SNMP V2c support, and a built-in 2-port switch for daisy-chain wiring.
- 8-channel analogue output with voltage and current ranges set per channel
- Built-in 2-port 10/100 Base-Tx switch with LAN bypass for daisy-chain wiring
- Modbus TCP, Modbus UDP, MQTT and SNMP V2c support
- Web server configuration with password and IP filter access control
- Programmable power-on and safe output values
- Open wire detection for 4 ~ 20 mA outputs
4 705,99 kr per stk.
| 1–9 stk. | 4 705,99 kr | |
|---|---|---|
| 10–30 stk. | 4 570,94 kr | −3 % |
| 31+ stk. | 4 477,44 kr | −5 % |
Produktinformasjon "ET-2228 Ethernet I/O Module, 8-ch Analog Output with 2-port Switch"
The ET-2228 CR provides eight analogue output channels for driving voltage or current signals from an Ethernet network. Each channel can be configured for 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, 4 ~ 20 mA or 0 ~ 20 mA, with 12-bit resolution and an accuracy of ±0.1% of FSR.
A built-in 2-port 10/100 Base-Tx switch with LAN bypass allows the module to be wired in a daisy chain, which reduces the need for separate switches. Configuration is handled through a built-in web server, and the module supports Modbus TCP and Modbus UDP, MQTT publish and subscribe, and SNMP V2c with trap reporting.
For reliable operation in industrial environments, the module offers 3000 VDC I/O isolation and EMS protection against EFT, ESD and surge. Power-on and safe output values are programmable, open wire detection is available on the 4 ~ 20 mA outputs, and dual watchdog functions are supported.
Applications
- Factory Automation
- Machine Automation
- Building Automation
- Remote Diagnosis & Maintenance
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT, SNMP v2c |
| Ports: | 2 |
| Isolation: | 3000 VDC I/O |
| Power input: | +10 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail / wall |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit ARM |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet |
| Analog Output | |
| Channels | 8 |
| Type | Voltage, Current |
| Range | Voltage: 0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC Current: 0 ~ 20 mA, 4 ~ 20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Short Circuit Protection | Yes |
| DA Output Response Time | 1 ms per channel |
| Programmable Output Slope | Voltage: 0.0625 ~ 512 V/Second Current: 0.125 ~ 1024 mA/Second |
| Open Wire Detection | For 4 ~ 20 mA only |
| Voltage Output Capability | 10 V @ 10 mA |
| Current Load Resistance | 500 Ω |
| Individual Channel Configuration | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |

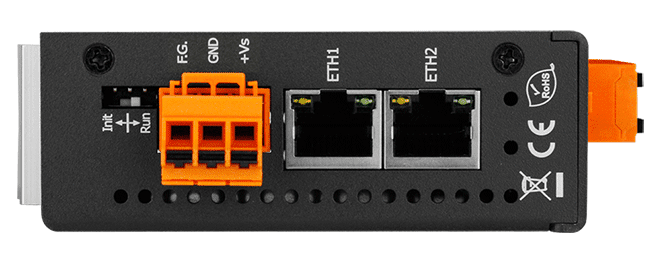

| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT, SNMP V2c |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 6.2 W (max.) |
| Powered from Terminal Block | +10 ~ +48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 33 x 126 x 117 (W x L x H) |

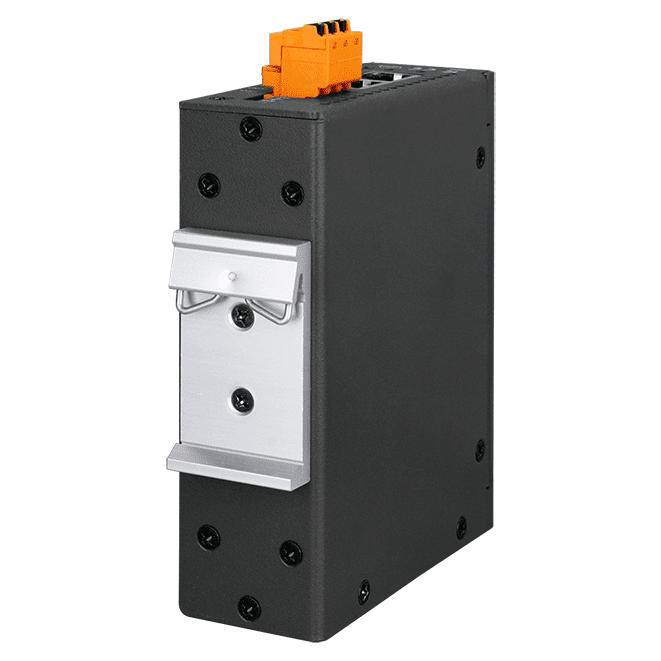

| Installation | DIN-Rail mounting / Wall mounting (Optional ASO-0015) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
