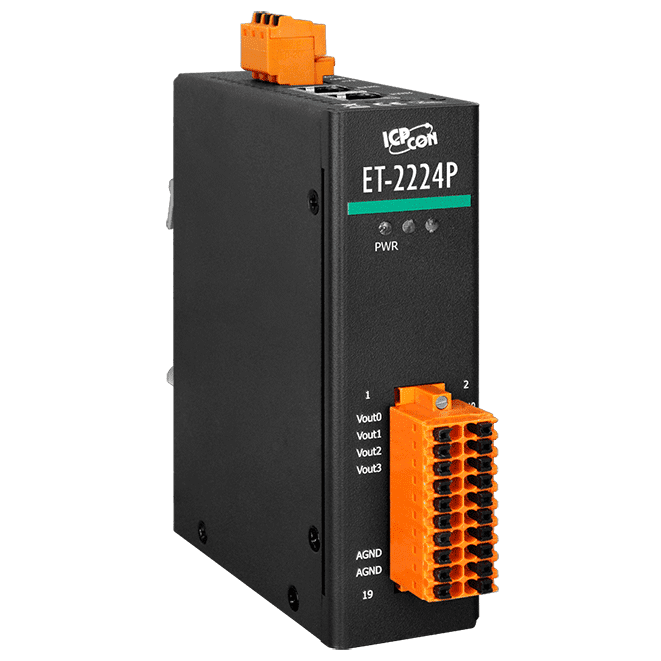

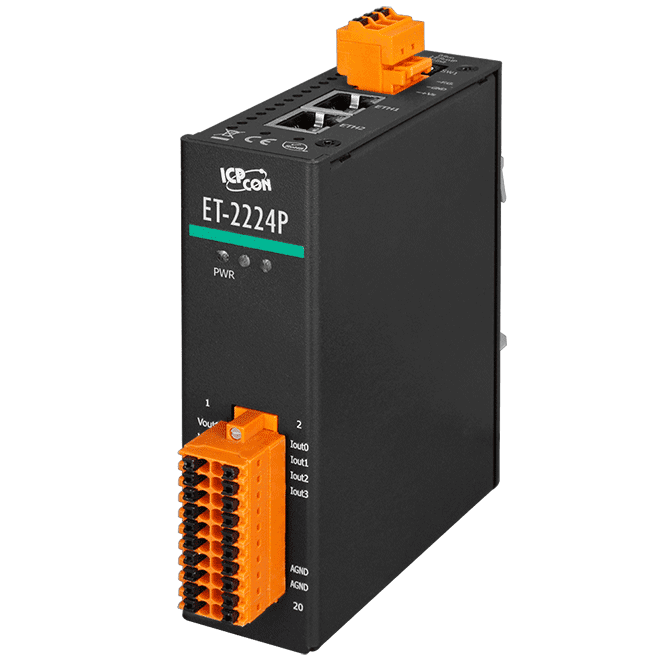

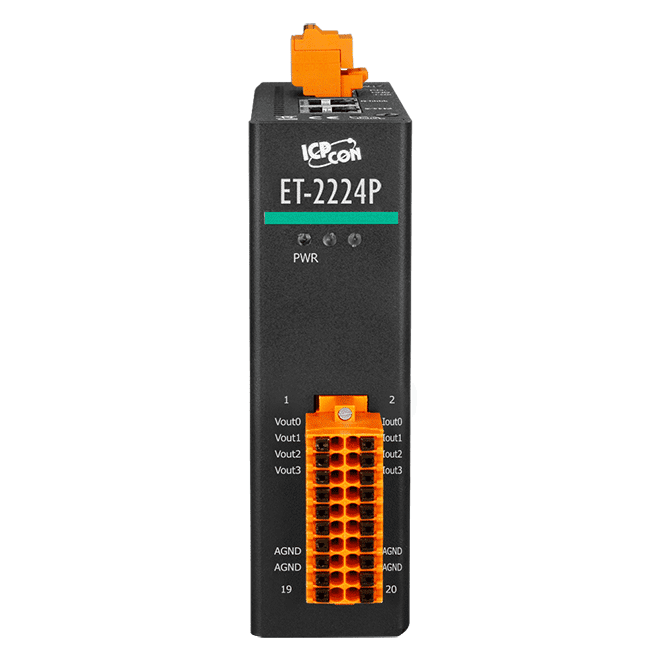

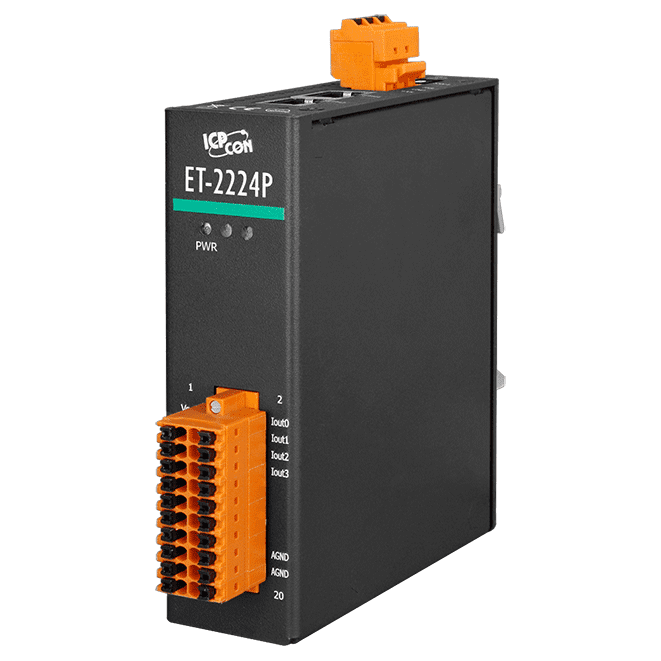

ET-2224P Ethernet I/O Module, 4-ch 16-bit Analog Output, 2-port Switch
16-bit, 4-channel analog output module with Modbus TCP/UDP, MQTT and SNMP V2c support and a built-in 2-port Ethernet switch for daisy-chain wiring.
- 16-bit analog output on 4 channels, with 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, 0 ~ 20 mA and 4 ~ 20 mA ranges
- Built-in 2-port Ethernet switch with LAN bypass for daisy-chain wiring
- Modbus TCP/UDP, MQTT and SNMP V2c protocol support
- Programmable power-on and safe values, with open wire detection on 4 ~ 20 mA channels
- Dual-watchdog and I/O pair connection (push and pull)
- Web server for configuration with password and IP filter access control
3 791,80 kr per stk.
| 1–9 stk. | 3 791,80 kr | |
|---|---|---|
| 10–30 stk. | 3 677,53 kr | −3 % |
| 31+ stk. | 3 594,42 kr | −5 % |
Produktinformasjon "ET-2224P Ethernet I/O Module, 4-ch 16-bit Analog Output, 2-port Switch"
The ET-2224P is a 4-channel Ethernet analog output module with 16-bit resolution, suited to engineers who need to drive voltage or current signals from a networked I/O point. Each channel can be set to 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, 0 ~ 20 mA or 4 ~ 20 mA, and power-on and safe output values are programmable per channel.
A built-in 2-port switch with LAN bypass lets you daisy-chain modules along a network segment, which reduces the need for separate switches in the cabinet. Modbus TCP/UDP, MQTT and SNMP V2c are supported, so the module can be integrated with SCADA systems, MQTT brokers or SNMP network management tools. Dual watchdogs, a web server for configuration and I/O pair connection add to the module's control and monitoring options.
Isolation is rated at 1500 VDC for Ethernet and 3000 VDC for I/O, and the module carries EFT, ESD and surge protection ratings to IEC 61000-4-4, -2 and -5. The unit operates from -25 ~ +75 °C and is housed in a metal casing for DIN-rail or wall mounting.
Applications
- Factory Automation
- Machine Automation
- Building Automation
- Remote Diagnosis & Maintenance
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT, SNMP v2c |
| Analog outputs: | 4 |
| Ports: | 2 |
| Isolation: | Ethernet 1500 VDC, I/O 3000 VDC |
| Power input: | +10 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, wall (optional ASO-0015) |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit ARM |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet |
| Analog Output | |
| Channels | 4 |
| Type | Voltage, Current |
| Range | Voltage: 0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC Current: 0 ~ 20 mA, 4 ~ 20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Short Circuit Protection | Yes |
| DA Output Response Time | 1 ms per channel |
| Programmable Output Slope | Voltage: 0.0625 ~ 512 V/Second Current: 0.125 ~ 1024 mA/Second |
| Open Wire Detection | For 4 ~ 20 mA only |
| Voltage Output Capability | 10 V @ 10 mA |
| Current Load Resistance | 500 Ω |
| Individual Channel Configuration | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |

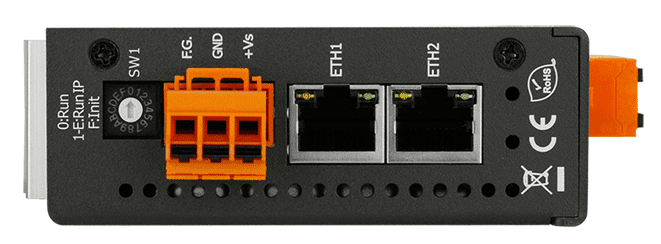

| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT, SNMP V2c |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 5.0 W (max.) |
| Powered from Terminal Block | +10 ~ +48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 33 x 126 x 117 (W x L x H) |

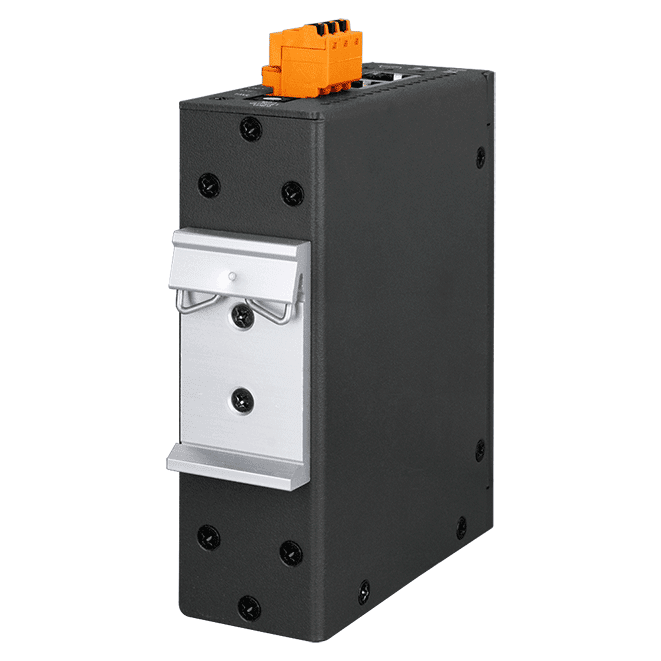

| Installation | DIN-Rail mounting / Wall mounting (Optional ASO-0015) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
