ET-2224CIS Ethernet I/O Module, 4-ch AO with 2-port Switch
4-channel analog output Ethernet I/O module with configurable voltage and current ranges, over-value protection, output readback and a 2-port LAN bypass switch for daisy-chaining.
- Four analog outputs, individually configurable as 0 ~ 5 V, 0 ~ 10 V, 0 ~ 20 mA or 4 ~ 20 mA with 12-bit resolution
- Output readback and over-value protection to verify and limit outputs
- Open wire detection on each 4 ~ 20 mA channel
- Programmable power-on and safe values for each output
- 2-port 10/100 Base-Tx switch with LAN bypass for daisy-chain wiring
- Modbus TCP/UDP, MQTT and SNMP V2c support, plus I/O Pair Connection (Push and Pull)
5 007,26 kr per stk.
| 1–9 stk. | 5 007,26 kr | |
|---|---|---|
| 10–30 stk. | 4 861,82 kr | −3 % |
| 31+ stk. | 4 757,93 kr | −5 % |
Produktinformasjon "ET-2224CIS Ethernet I/O Module, 4-ch AO with 2-port Switch"

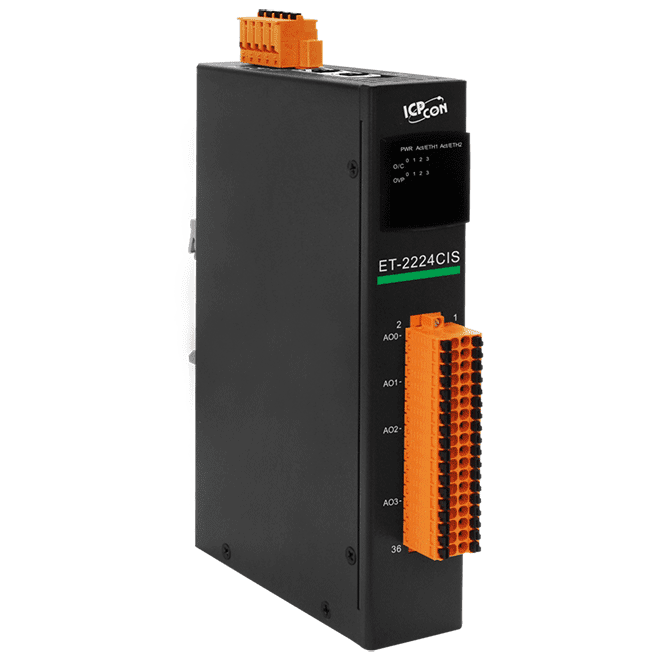

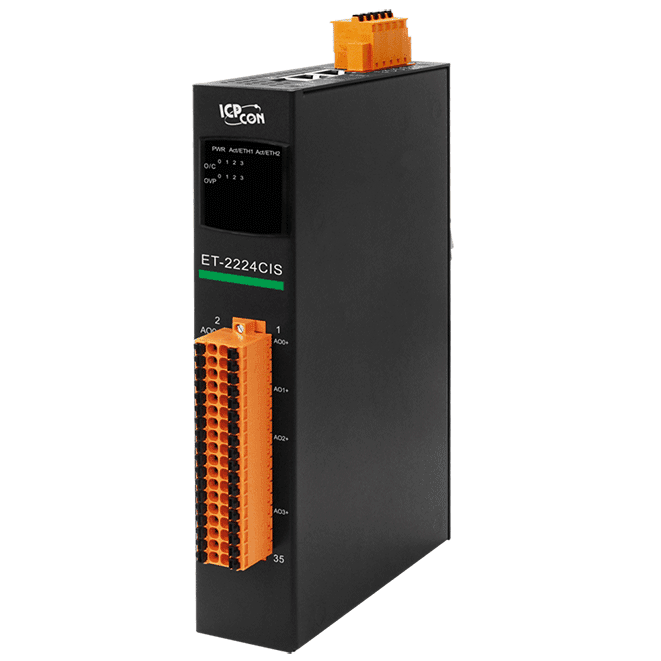

The ET-2224CIS CR is an Ethernet-connected analog output module for engineers who need four isolated 12-bit outputs at a remote point in the network. Each channel can be set to 0 ~ 5 V, 0 ~ 10 V, 0 ~ 20 mA or 4 ~ 20 mA, so one module can serve a mix of voltage and current inputs on field devices.
Output behaviour can be tailored to the process. Power-on and safe values are programmable, output readback and voltage/current ADC readback help verify what the module is driving, and over-value protection guards against unintended high outputs. Open wire detection is provided on the 4 ~ 20 mA channels, and each channel has 3000 VDC isolation from the others.
For networking, the built-in 2-port 10/100 Base-Tx switch with LAN bypass supports daisy-chain wiring, and the module can be reached through Modbus TCP/UDP, MQTT or SNMP V2c. I/O Pair Connection allows remote analog input data to be written to local outputs in Pull mode. The listing describes this ordering code as RoHS compliant.
Applications
- Factory Automation
- Machine Automation
- Building Automation
- Remote Diagnosis & Maintenance
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT, SNMP v2c |
| Ports: | 2 |
| PoE: | Yes |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail / wall |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit ARM |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |

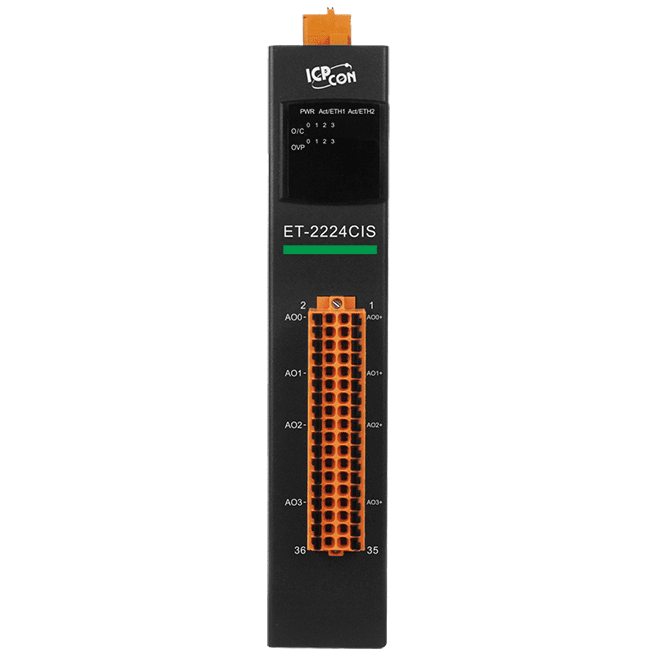

| LED Indicators | |
| Status | Run, Ethernet, AO, O/C (Note) |
| Analog Output | |
| Channels | 4 |
| Type | Voltage, Current |
| Range | Voltage: 0 ~ +5 VDC, 0 ~ +10 VDC Current: 0 ~ 20 mA, 4 ~ 20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Short Circuit Protection | Yes |
| DA Output Response Time | 10 ms per channel |
| Programmable Output Slope | Voltage: 0.0625 ~ 512 V/Second Current: 0.125 ~ 1024 mA/Second |
| Open Wire Detection | For 4 ~ 20 mA only |
| Output Readback | Yes |
| Voltage Output Capability | 10 V @ 10 mA |
| Current Load Resistance | 500 Ω |
| Individual Channel Configuration | Yes |
| Channel-to-Channel Isolation | 3000 VDC |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |

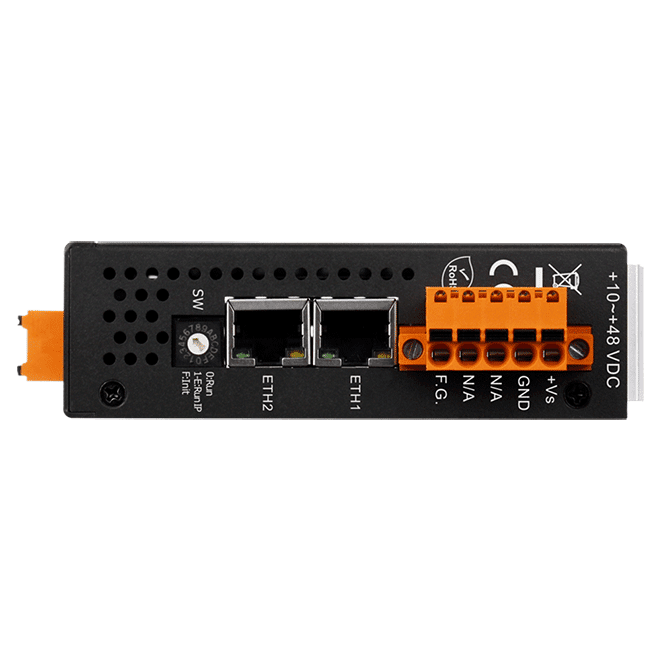

| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT, SNMP V2c |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 6.3 W (max.) |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +10 ~ +48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 33 x 184 x 129 (W x L x H) |

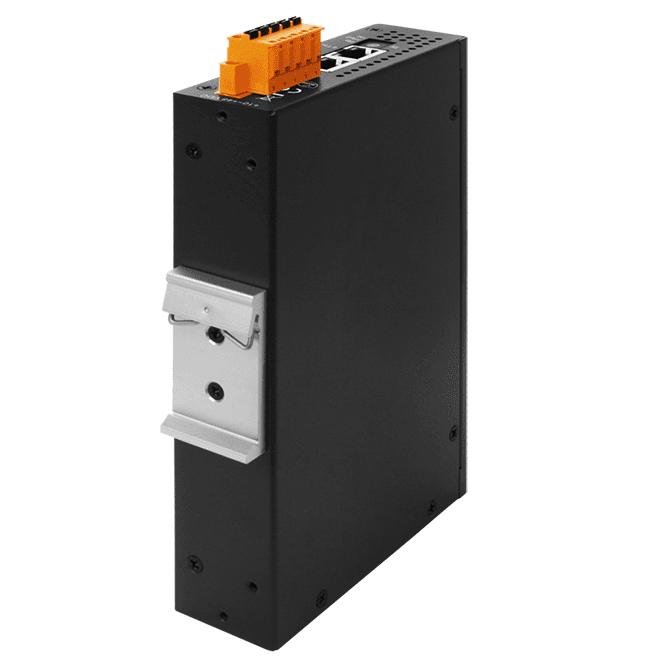

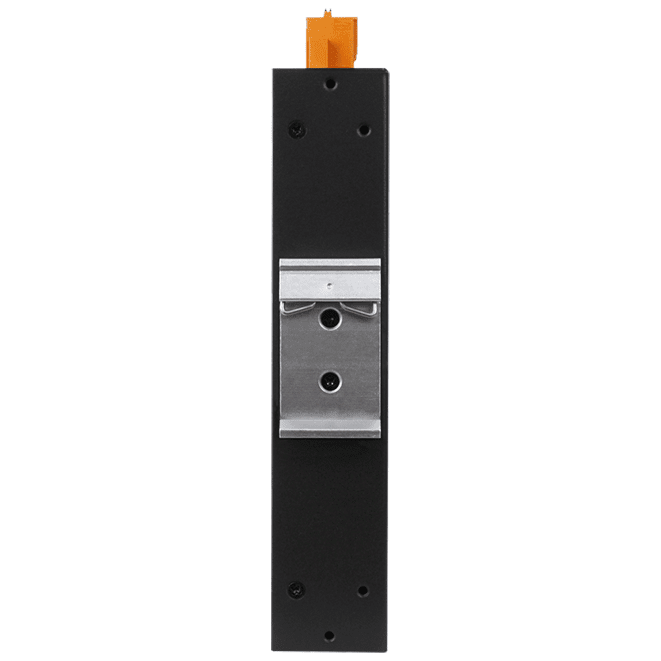

| Installation | DIN-Rail mounting / Wall mounting (Optional ASO-0015) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
