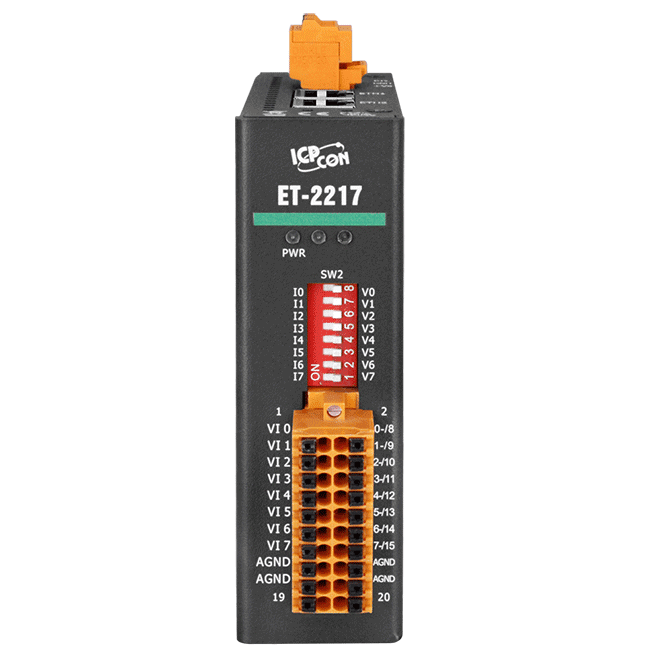

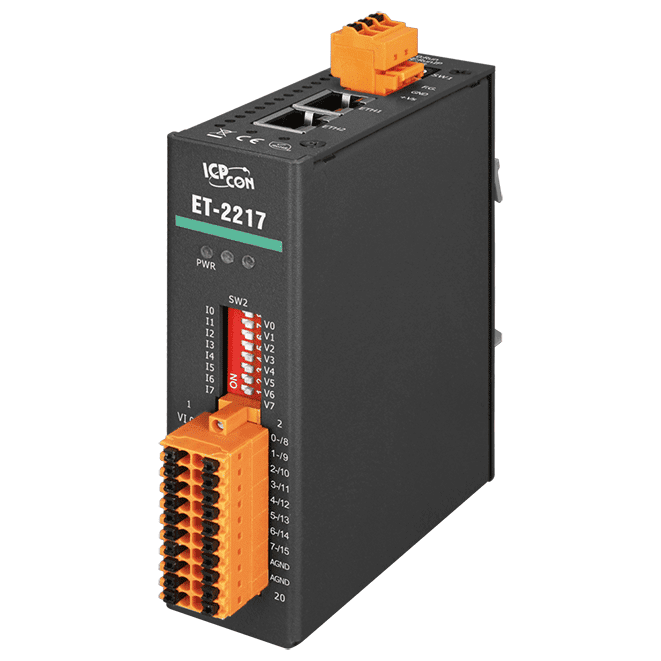

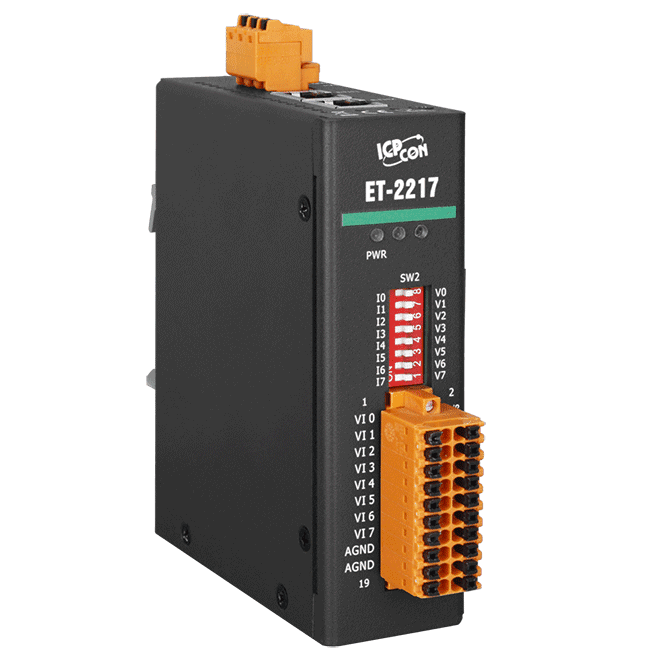

ET-2217 Ethernet I/O Module with 2-Port Switch, 8/16-ch Analog Input
Ethernet I/O module with 16-bit analog inputs, a 2-port 10/100 Base-Tx switch for daisy-chain wiring, and Modbus TCP, MQTT and SNMP V2c support.
- 8 differential or 16 single-ended 16-bit analog inputs, software selectable with individual channel configuration
- Voltage or current input type set by DIP switch, with ranges from ±150 mV to ±10 V and ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA
- Normal (20 Hz) and fast (200 Hz) sampling modes for all channels
- 2-port 10/100 Base-Tx switch with LAN bypass for daisy-chain wiring
- Modbus TCP, Modbus UDP, MQTT and SNMP V2c support
- 3000 VDC I/O isolation and EMS protection (EFT, ESD, surge)
3 376,26 kr per stk.
| 1–9 stk. | 3 376,26 kr | |
|---|---|---|
| 10–30 stk. | 3 282,77 kr | −3 % |
| 31+ stk. | 3 210,05 kr | −5 % |
Produktinformasjon "ET-2217 Ethernet I/O Module with 2-Port Switch, 8/16-ch Analog Input"
The ET-2217 CR is an Ethernet analog input module for acquiring voltage and current signals over a network. Each channel can be configured individually, and the inputs can be set in software as 8 differential or 16 single-ended channels.
Inputs are 16-bit, with voltage ranges from ±150 mV to ±10 V and current ranges of ±20 mA, 0 ~ +20 mA and +4 ~ +20 mA. Voltage or current type is selected by DIP switch. Normal mode samples all channels at 20 Hz and fast mode at 200 Hz. The module tolerates 120 VDC overvoltage, is isolated to 3000 VDC on the I/O side and includes EMS protection against EFT, ESD and surge.
For networking, the built-in 2-port switch supports LAN bypass for daisy-chain wiring. MQTT publish and subscribe with automatic reconnection and Keep-Alive, and SNMP V2c with Trap messages on I/O change or restart, provide flexible integration. A built-in web server handles configuration.
Applications
- Factory Automation
- Machine Automation
- Building Automation
- Remote Diagnosis & Maintenance
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT, SNMP v2c |
| Analog inputs: | 8 differential or 16 single-ended |
| Ports: | 2 |
| Isolation: | 3000 VDC (I/O) |
| Power input: | +10 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit ARM |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet |
| Analog Input | |
| Channels | 8 Differential or 16 Single-ended (Software selectable, *Note 1) |
| Type | Voltage, Current (DIP switch selectable) |
| Range | Voltage: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | Normal Mode: 20 Hz (total channels) Fast Mode: 200 Hz (total channels) |
| Input Impedance | Voltage: 2 MΩ (Differential), 1 MΩ (Single-ended) Current: 137 Ω (Differential) |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | 120 VDC |
| Overcurrent Protection | 50 mA at 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Ethernet | |

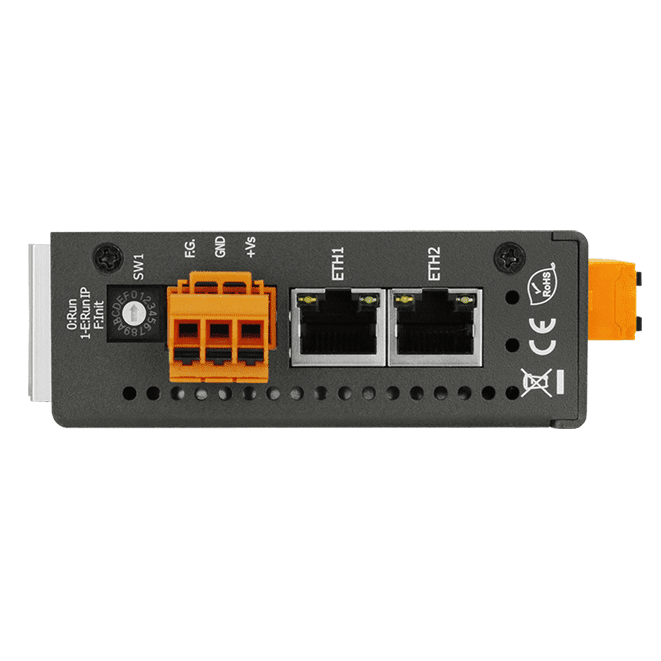

| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT, SNMP V2c |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 3.3 W (max.) |
| Powered from Terminal Block | +10 ~ +48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 33 x 127 x 117 (W x L x H) |

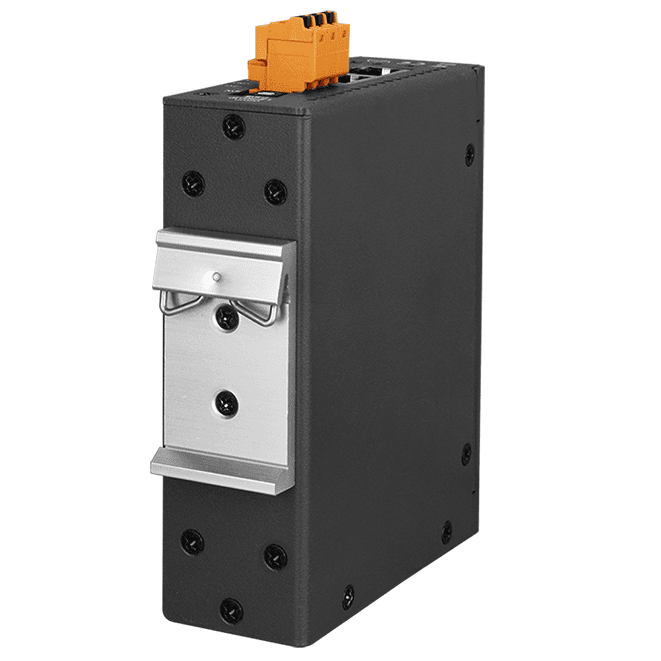

| Installation | DIN-Rail mounting / Wall mounting (Optional ASO-0015) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
