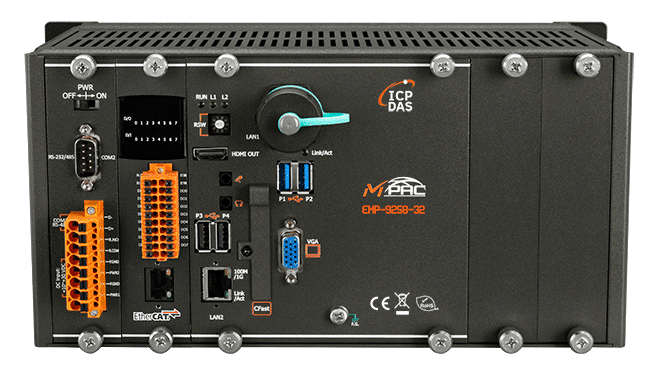

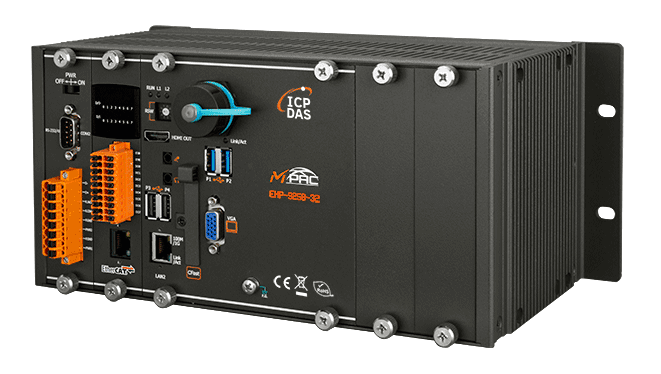

EMP-9258-32 EtherCAT Motion Controller, 32-axis, Win-GRAF, 2 Slots
Windows IoT-based SoftPLC motion controller with an i5-8365UE CPU, a real-time EtherCAT master for up to 32 axes, and two I/O expansion slots for e9K, I-9K and I-97K modules.
- Intel Core i5-8365UE CPU (1.6 ~ 4.1 GHz, 4C8T) with 16 GB DDR4 SDRAM, running Windows 10 IoT Enterprise (64-bit)
- EtherCAT master controlling up to 32 axes with a 0.5 ms cycle time, supporting up to 512 EtherCAT nodes
- IEC 61131-3 SoftPLC with FBD, LD, IL, ST and SFC languages and PLCopen and CiA402 motion function blocks
- Coupled second CPU with EtherCAT communication retention, keeping EtherCAT communication and process recipes running through an OS or program crash
- Built-in OPC UA server plus Modbus TCP/RTU and 3000 VDC isolated RS-485 and RS-232/RS-485 serial ports
- 8 wet-contact digital inputs (sink/source) and 8 open-collector digital outputs at 1000 mA per channel
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "EMP-9258-32 EtherCAT Motion Controller, 32-axis, Win-GRAF, 2 Slots"
The EMP-9258-32 CR combines an IEC 61131-3 SoftPLC with a real-time EtherCAT master and a multi-axis motion kernel, so one controller can handle logic, coordinated motion and Windows applications side by side. It is suited to machine builders who need to control up to 32 axes on EtherCAT servo or stepper drives with a 0.5 ms cycle time.
Motion is handled by PLCopen function blocks for single-axis and multi-axis control, with CiA402 drive support and linear, circular and helical interpolation. Windows software such as HMIs or data-gathering applications can access PLC data through shared memory and the provided C/C++/C#/LabVIEW programming interfaces, while an integrated OPC UA server allows standard OPC UA clients to connect without customisation.
This two-slot variant adds expansion capacity for e9K, I-9K and I-97K I/O modules, alongside 8 digital inputs and 8 open-collector digital outputs on the main unit. Dual Ethernet, RS-232/RS-485 and RS-485 serial ports, four USB 2.0 ports, and Modbus TCP/RTU support allow it to act as a Modbus/EtherCAT gateway in mixed networks.
Applications
- Multi-axis servo and stepper motion control in machine automation
- Machine-builder control panels and OEM equipment
- Integrating in-house or third-party Windows HMI and data-processing software with PLC logic
- Connecting PLC and motion data to SCADA or cloud systems via OPC UA
- Modbus/EtherCAT gateway for mixed fieldbus networks
| Product type: | Motion controller |
|---|---|
| Interface: | EtherCAT, Ethernet, RS-232/RS-485, USB |
| Protocol: | EtherCAT, Modbus TCP, OPC UA |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Ports: | 2 Ethernet / 2 COM / 4 USB |
| Isolation: | 3000 VDC |
| Power input: | +19 ~ 30 VDC |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise (64-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Compact Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | EMP-9x58-xx : Intel® Core™ i5-8365UE Processor (1.6 ~ 4.1 GHz, 4C8T) EMP-9098-xx : Intel Atom E3950(1.6 ~ 2.0 GHz, 4C4T) |
| 64-bit Hardware Serial Number | Yes |
| System Memory | EMP-9x58-xx : 16 GB DDR4 SDRAM EMP-9098-xx : 8 GB DDR4 SDRAM |
| Storage | 1x 128 GB SSD 1x CFast card slot |
| Non-Volatile Memory | 128 KB MRAM 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA, HDMI |
| Resolution | VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) HDMI 2560 x 1600 @ 24bpp |
| LED Indicators | |
| Status | EMP-9058-16, EMP-9058-32 : 1 x System, 3 x Programmable EMP-9258-16, EMP-9258-32 : 1 x System, 3 x Programmable EMP-9658-16, EMP-9658-32 : 1 x System, 2 x Programmable EMP-9098-16, EMP-9098-32 : 1 x System, 3 x Programmable |
| Interpolation | |
| Circular | Any 2- or 3-axis |
| Helical | Any 3-axis |
| Linear | Any 2- or 32-axis |
| Digital Input | |
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +19V ~ +24V |
| OFF Voltage Level | +11V Max. |
| Isolation | 3000VDC |
| Digital Output | |
| Channels | 8 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +24V |
| Load Current | 1000 mA/ch |
| Isolation | 3000Vrms |
| I/O Expansion | |
| I/O Type | e9K, I-9K, I-97K series |
| Slots | EMP-9058-16, EMP-9058-32 : - EMP-9258-16, EMP-9258-32 : 2 EMP-9658-16, EMP-9658-32 : 6 EMP-9098-16, EMP-9098-32 : - |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-485 (3000 VDC Isolated) 1 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 4 x USB 2.0 |
| EtherCAT | |
| Ports | 1 x RJ-45 |
| No. of Axes | EMP-9058-16 : Max. 16 EMP-9058-32 : Max. 32 EMP-9258-16 : Max. 16 EMP-9258-32 : Max. 32 EMP-9658-16 : Max. 16 EMP-9658-32 : Max. 32 EMP-9098-16 : Max. 16 EMP-9098-32 : Max. 32 |
| No. of Nodes | Max. 512 |
| Data Transfer Medium | Ethernet Cable (Min. CAT 5e), Shielded |
| Power | |
| Input Range | +19 ~ 30 VDC ( 2 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | EMP-9058-16, EMP-9058-32 : 30.5 W (Typical) / 71 W (CPU Full Load) EMP-9258-16, EMP-9258-32 : 31.5 W (Typical) / 72 W (CPU Full Load) EMP-9658-16, EMP-9658-32 : 32.6 W (Typical) / 73 W (CPU Full Load) EMP-9098-16, EMP-9098-32 : 18.5 W |
| Mechanical | |
| Dimensions (mm) | EMP-9058-16, EMP-9058-32 : 239 x 164 x 133 (W x L x H) EMP-9258-16, EMP-9258-32 : 300 x 164 x 133 (W x L x H) EMP-9658-16, EMP-9658-32 : 422 x 164 x 133 (W x L x H) EMP-9098-16, EMP-9098-32 : 239 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
