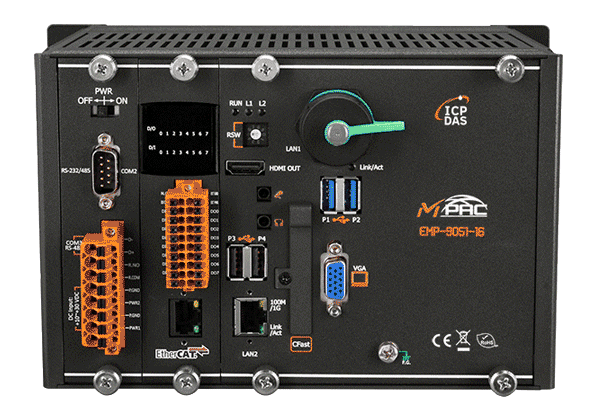

EMP-9051-16 EtherCAT Master PAC, 16-Axis Motion Controller with Win10 IoT
Metal motion PAC with an Intel Core i5-8365UE CPU, Windows 10 IoT Enterprise and a pre-installed EtherCAT Master for up to 16 axes, combining control, I/O and HMI in one unit.
- Intel Core i5-8365UE CPU (1.6 to 4.1 GHz, 4C8T) with 16 GB DDR4 SDRAM and Windows 10 IoT Enterprise (64-bit)
- EtherCAT Master for up to 16 axes and up to 512 nodes, with Ethernet cable (min. CAT 5e, shielded) as the medium
- Synchronised motion (E-GEAR, E-CAM), virtual axes and multi-axis linear interpolation
- Second CPU provides EtherCAT communication retention during OS or program crashes
- 8 digital inputs (wet contact, 3000 VDC isolation) and 8 digital outputs (open collector, sink, 100 mA per channel)
- 2 x RJ-45 10/100/1000 Base-TX Ethernet, 4 x USB 2.0, 1 x RS-485 and 1 x RS-232/RS-485, all isolated
Denne varen prises per ordre. Send oss ønsket antall, så svarer vi med pris og leveringstid.
Be om tilbud
Ikke lenger tilgjengelig
Produktinformasjon "EMP-9051-16 EtherCAT Master PAC, 16-Axis Motion Controller with Win10 IoT"
The EMP-9051-16 CR combines a Windows 10 IoT Enterprise PAC, an EtherCAT Master and an operator interface in a single metal housing. It is intended for engineers who want HMI, data acquisition and motion control running on one platform, with up to 16 axes of EtherCAT control and up to 512 nodes.
Motion features include synchronised motion (E-GEAR and E-CAM), virtual axes and multi-axis linear interpolation, with circular interpolation for any 2 or 3 axes and helical interpolation for any 3 axes. A second CPU supports EtherCAT communication retention, so EtherCAT communication and process recipes are maintained even if the OS or a program crashes.
On the I/O side the unit provides 8 wet-contact digital inputs and 8 open-collector sink digital outputs, both isolated at 3000 VDC or Vrms. It also offers two 10/100/1000 Mbit/s Ethernet ports, four USB 2.0 ports, an RS-485 port and an RS-232/RS-485 port, VGA and HDMI display output, and redundant 19 to 30 VDC power inputs.
Applications
- Machine automation with multi-axis EtherCAT motion control
- Integrated HMI, data acquisition and control in a single PAC
- Synchronised motion applications using electronic gearing and cam profiles
| Product type: | PAC |
|---|---|
| Interface: | EtherCAT |
| Protocol: | EtherCAT |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Ports: | 1 x RS-485, 1 x RS-232/RS-485, 2 x RJ-45 Ethernet, 4 x USB 2.0 |
| Isolation: | 3000 VDC |
| Power input: | +19 ~ 30 VDC |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Spesifikasjoner
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise (64-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Compact Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | EMP-9x51-xx : Intel® Core™ i5-8365UE Processor (1.6 ~ 4.1 GHz, 4C8T) EMP-9091-xx : Intel Atom E3950(1.6 ~ 2.0 GHz, 4C4T) |
| 64-bit Hardware Serial Number | Yes |
| System Memory | EMP-9x51-xx : 16 GB DDR4 SDRAM EMP-9091-xx : 8 GB DDR4 SDRAM |
| Storage | 1x 128 GB SSD (mSATA) 1x CFast card slot |
| Non-Volatile Memory | 128 KB MRAM 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA, HDMI |
| Resolution | VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) HDMI 2560 x 1600 @ 24bpp |
| LED Indicators | |
| Status | 1 x System 2 x Programmable |
| Interpolation | |
| Circular | Any 2- or 3-axis |
| Helical | Any 3-axis |
| Linear | Any 2- or 32-axis |
| Digital Input | |
| Channels | 8 |
| Type | Wet Contact |
| ON Voltage Level | +19V ~ +24V |
| OFF Voltage Level | +11V Max. |
| Isolation | 3000VDC |
| Digital Output | |
| Channels | 8 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +24V |
| Load Current | 100 mA/ch |
| Isolation | 3000Vrms |
| I/O Expansion | |
| I/O Type | e9K, I-9K, I-97K series |
| Slots | EMP-9051-16, EMP-9051-32 : - EMP-9251-16, EMP-9251-32 : 2 EMP-9651-16, EMP-9651-32 : 6 EMP-9091-16, EMP-9091-32 : - |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-485 (3000 VDC Isolated) 1 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 4 x USB 2.0 |
| EtherCAT | |
| Ports | 1 x RJ-45 |
| No. of Axes | EMP-9051-16 : Max. 16 EMP-9051-32 : Max. 32 EMP-9251-16 : Max. 16 EMP-9251-32 : Max. 32 EMP-9651-16 : Max. 16 EMP-9651-32 : Max. 32 EMP-9091-16 : Max. 16 EMP-9091-32 : Max. 32 |
| No. of Nodes | Max.512 |
| Data Transfer Medium | Ethernet Cable (Min. CAT 5e), Shielded |
| Power | |
| Input Range | +19 ~ 30 VDC ( 2 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | EMP-9051-16, EMP-9051-32 : 30.5 W (Typical) / 71 W (CPU Full Load) EMP-9251-16, EMP-9251-32 : 31.5 W (Typical) / 72 W (CPU Full Load) EMP-9651-16, EMP-9651-32 : 32.6 W (Typical) / 73 W (CPU Full Load) EMP-9091-16, EMP-9091-32 : 18.5 W |
| Mechanical | |
| Dimensions (mm) | EMP-9051-16, EMP-9051-32 : 239 x 164 x 133 (W x L x H) EMP-9251-16, EMP-9251-32 : 300 x 164 x 133 (W x L x H) EMP-9651-16, EMP-9651-32 : 422 x 164 x 133 (W x L x H) EMP-9091-16, EMP-9091-32 : 239 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
