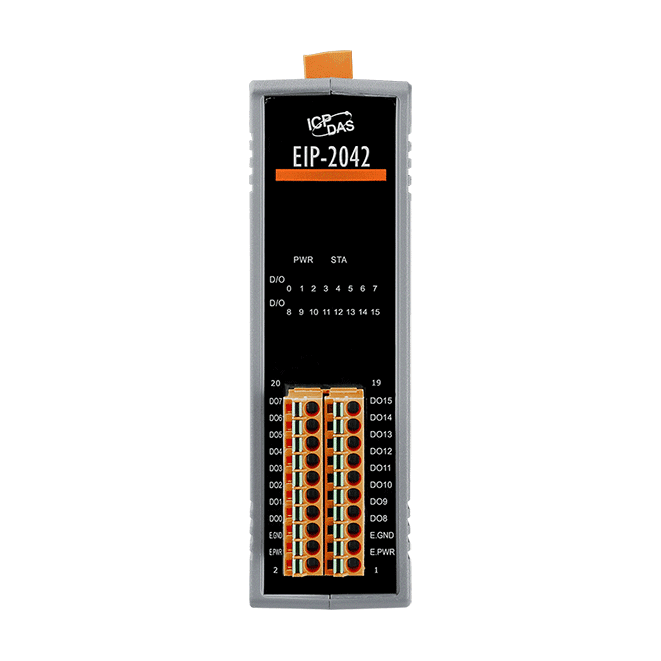

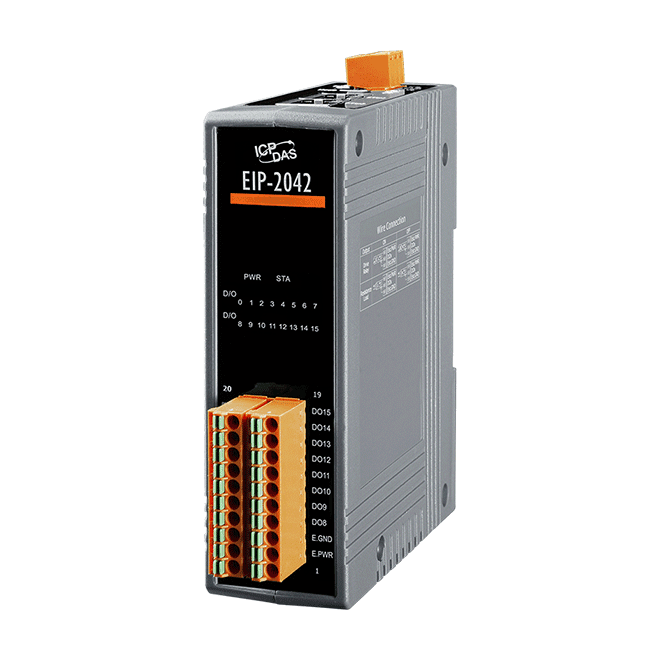

EIP-2042 EtherNet/IP Remote I/O Module, 16-ch Isolated Digital Output
EIP-2042 CR EtherNet/IP adapter module with 16 isolated open-collector sink outputs, dual RJ-45 ports for daisy chain wiring and DIN-rail mounting.
- 16 isolated open-collector digital outputs, sink type, with 3000 VDC isolation
- EtherNet/IP adapter with output and connection status shown by LEDs
- Two 10/100 Base-TX RJ-45 ports (auto-negotiating, auto MDI/MDIX) supporting daisy chain connection
- Powerful 32-bit MCU for efficient network traffic handling
- Supports ARP, TCP, UDP, ICMP, DHCP, BOOTP and TFTP
- Power-On-Value and Safe-Value settings for defined output states
1 890,71 kr per stk.
| 1–9 stk. | 1 890,71 kr | |
|---|---|---|
| 10–30 stk. | 1 838,76 kr | −3 % |
| 31+ stk. | 1 797,21 kr | −5 % |
Produktinformasjon "EIP-2042 EtherNet/IP Remote I/O Module, 16-ch Isolated Digital Output"
EIP-2042 CR is a remote digital output module that acts as an EtherNet/IP adapter, bringing 16 open-collector outputs onto an Ethernet network. It suits engineers who need to switch field loads from a PLC or supervisory system over EtherNet/IP without running discrete wiring back to a central cabinet.

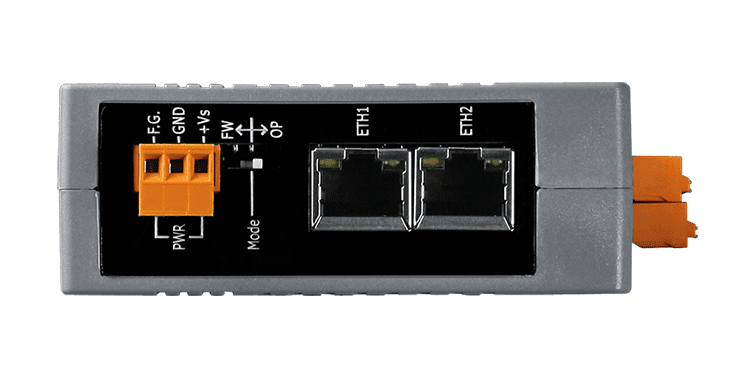

Two auto-negotiating 10/100 Base-TX RJ-45 ports support daisy chaining, so the module can be placed where the I/O is needed and wired in line with other devices. The network can follow star, line or ring topologies. Output and connection status are shown by LEDs, and the isolation design of 3000 VDC helps protect the module from interference.
The module supports a Power-On-Value and Safe-Value, and firmware can be updated over Ethernet. ICP DAS also provides a software utility for configuring and testing the module via Ethernet. The EIP-2042 CR is mounted on DIN-rail and is rated for an operating temperature of -25 °C to +75 °C.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis
- Testing Equipment
| Product type: | Remote I/O module |
|---|---|
| Interface: | 10/100 Base-TX |
| Protocol: | EtherNet/IP |
| Digital outputs: | 16 |
| Ports: | 2 |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 ~ +50 V |
| Load Current | Non-RevB : 700 mA per channel ; RevB : 650 mA per channel |
| Isolation | 3000 VDC |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2 Support daisy chain connection. |
| Protocol | Ethernet/IP (Adapter) |
| Power | |
| Consumption | Non-RevB : 1.6W ; RevB : 3.2W Max |
| Mechanical | |
| Dimensions (mm) | 110 x 90 x 33 (H x W x D) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25℃ ~ +75℃ |
| Storage Temperature | -30℃ ~ +80℃ |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
