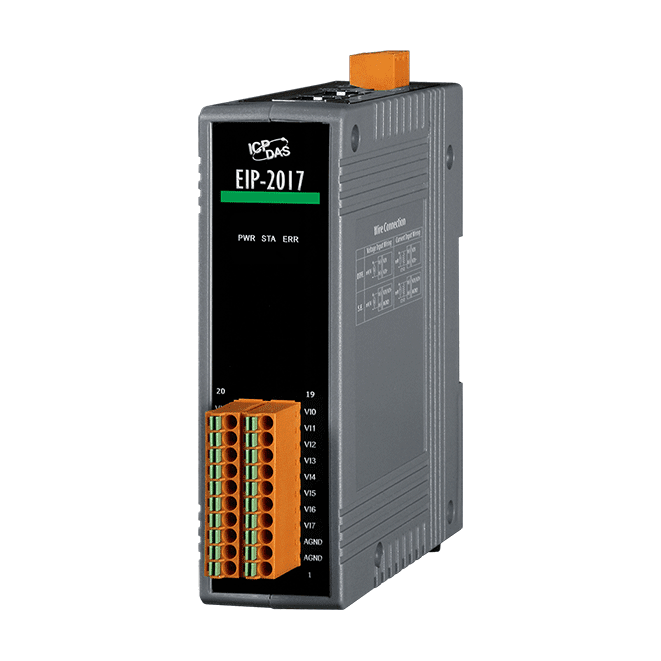

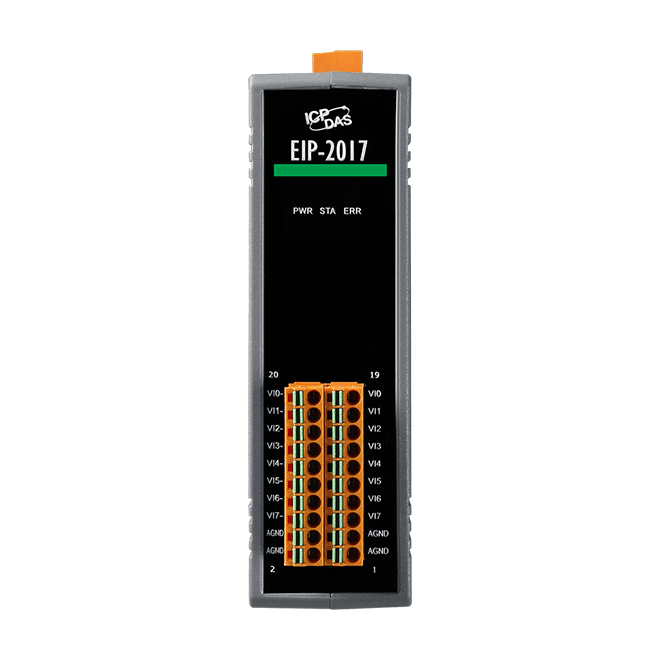

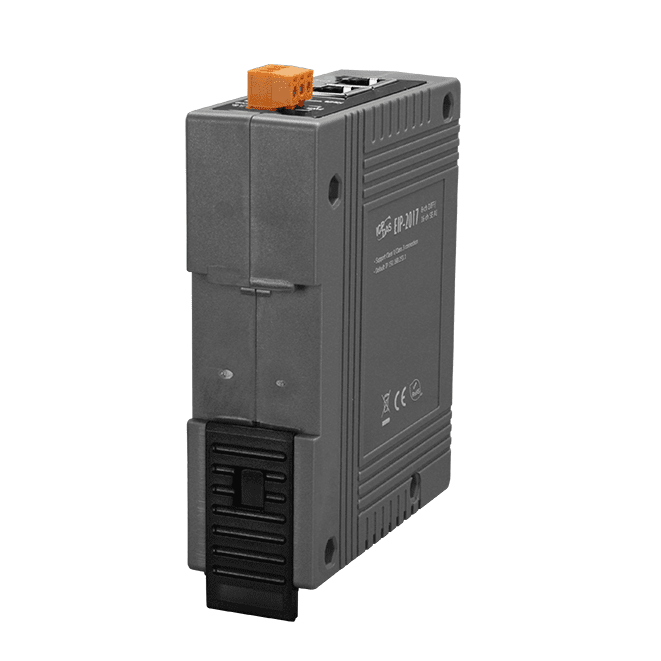

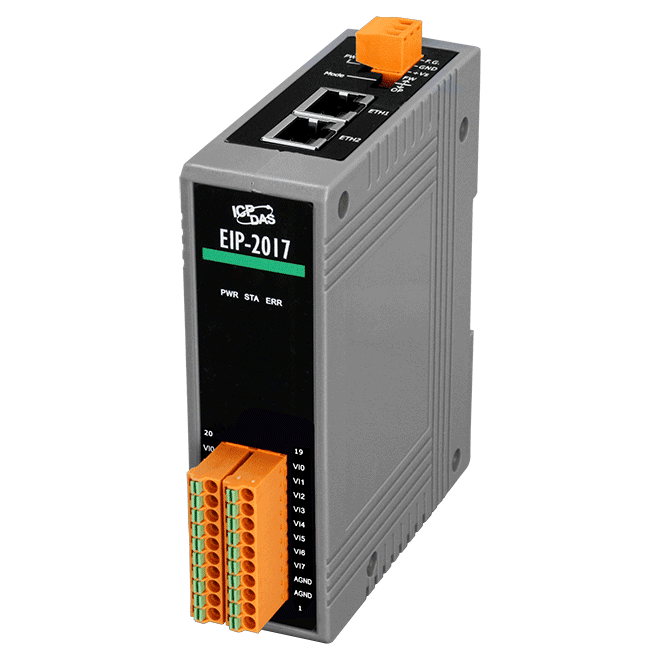

EIP-2017 EtherNet/IP Remote I/O Module, 8-ch Diff / 16-ch SE Analog Input
Isolated EtherNet/IP remote analog input module with 8 differential or 16 single-ended channels, 16-bit resolution and selectable voltage or current inputs.
- EtherNet/IP adapter with a 32-bit MCU for efficient network traffic
- 8 differential or 16 single-ended analogue inputs, selectable by jumper
- 16-bit resolution, 10 samples/second sampling rate, rated accuracy +/-0.1%
- Voltage and current input types, including ±150 mV to ±10 V and 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA
- Two 10/100 Base-TX RJ-45 ports with daisy chain support
- 3000 VDC intra-module isolation and 240 Vrms overvoltage protection
2 534,79 kr per stk.
| 1–9 stk. | 2 534,79 kr | |
|---|---|---|
| 10–30 stk. | 2 451,69 kr | −3 % |
| 31+ stk. | 2 399,74 kr | −5 % |
Produktinformasjon "EIP-2017 EtherNet/IP Remote I/O Module, 8-ch Diff / 16-ch SE Analog Input"
The EIP-2017 is an EtherNet/IP adapter module for distributed analogue measurement. It brings 8 differential or 16 single-ended analogue input channels onto an Ethernet network, which suits engineers who need to collect process signals from the plant floor into an EtherNet/IP system without a separate fieldbus gateway.
Flexible input configuration: A jumper selects between differential and single-ended operation. Voltage ranges from ±150 mV to ±10 V and current ranges of 0 ~ +20 mA, +4 ~ +20 mA and ±20 mA are supported. Internal 125 Ω resistors can be selected in differential mode, while single-ended current inputs need an external resistor. The rated accuracy is +/-0.1%, with 3000 VDC intra-module isolation.
Network and diagnostics: Two 10/100 Base-TX RJ-45 ports allow daisy chaining, and the module can be deployed in star, line or ring topologies. LEDs show both input status and connection status, and the manufacturer's software utility is available for configuration and testing over Ethernet.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis
- Testing Equipment
| Product type: | Remote I/O module |
|---|---|
| Interface: | Ethernet |
| Protocol: | EtherNet/IP |
| Analog inputs: | 8 DIFF / 16 SE |
| Ports: | 2 |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Spesifikasjoner
| Analog Input | |
|---|---|
| Channels | 8-ch differential or 16-ch single-ended ( Jump selectable) |
| Type | Voltage : ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V Current : 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA (Jumper Selectable in DIFF mode. An external resistor is required in SE mode) |
| Resolution | 16 bits |
| Accuracy | +/-0.1% |
| Sampling Rate | 10 samples/ second |
| Input Impedance | Voltage Input: >400 kΩ, Current Input: 125 Ω |
| Overvoltage Protection | 240 Vrms |
| Individual Channel Configuration | Yes |
| Zero Drift | +/-20uV/°C |
| Span Drift | +/-25ppm/°C |
| Intra-module Isolation | 3000 VDC |
| Ethernet | |

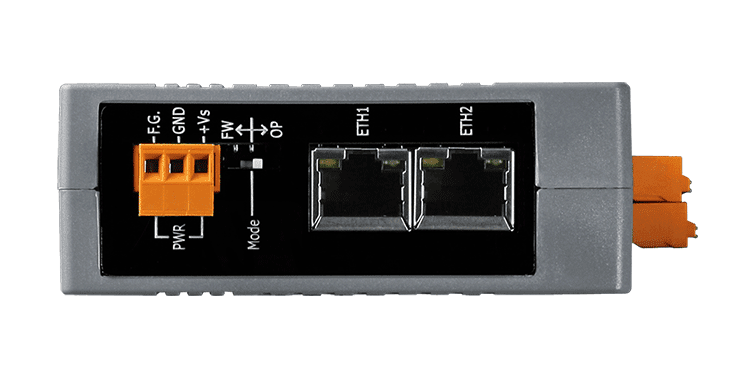

| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2 Support daisy chain connection. |
| Protocol | Ethernet/IP (Adapter) |
| Power | |
| Consumption | 3.8W |
| Mechanical | |
| Dimensions (mm) | 110 x 90 x 33 (H x W x D) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
