ECAT-2012H EtherCAT SubDevice I/O Module, 16-bit 16-ch Analog Input
16-bit EtherCAT SubDevice analog input module with 8 differential or 16 single-ended channels, software-selectable voltage and current ranges and daisy-chain wiring.
- 16-bit analogue inputs: 8 differential or 16 single-ended channels, selectable in software
- Voltage and current ranges, including 0~10 V, ±10 V, 0~20 mA and 4~20 mA, software selectable
- Accuracy of 0.05% of FSR with overvoltage protection of ±35 VDC
- Two RJ-45 EtherCAT ports supporting daisy chain, up to 100 m between stations (100BASE-TX)
- Verified with the EtherCAT conformance test tool
- 1 ms cycle time with on-the-fly processing
6 014,94 kr per stk.
| 1–9 stk. | 6 014,94 kr | |
|---|---|---|
| 10–30 stk. | 5 838,34 kr | −3 % |
| 31+ stk. | 5 713,68 kr | −5 % |
Produktinformasjon "ECAT-2012H EtherCAT SubDevice I/O Module, 16-bit 16-ch Analog Input"

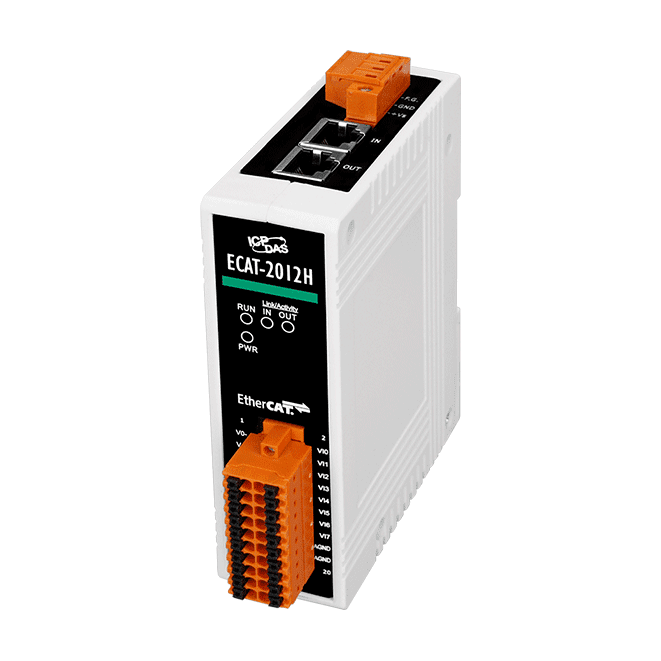

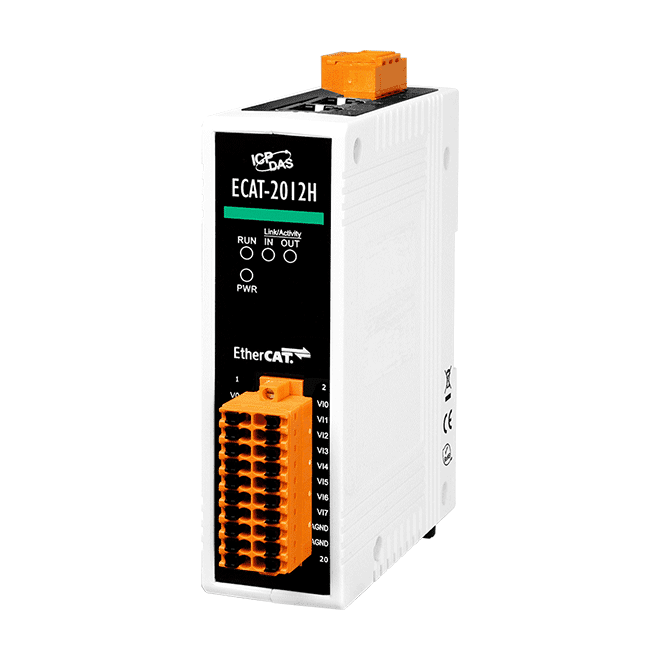

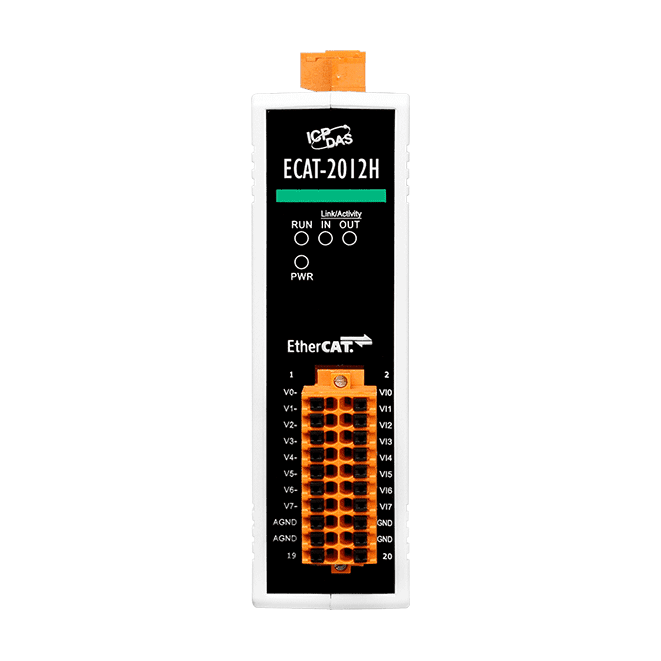

The ECAT-2012H is an EtherCAT SubDevice that brings 16-bit analogue inputs onto an EtherCAT network. Channels can be configured in software as 8 differential or 16 single-ended inputs, and each input accepts voltage or current signals across ranges from 0~10 V to ±20 mA and 4~20 mA. Input status is returned through the process data, so an EtherCAT Main Device or configurator can read it directly.
Two RJ-45 bus ports let modules be daisy-chained, which reduces cabling and simplifies installation. Star, line and ring topologies are all supported, with up to 100 m between stations over 100BASE-TX. The module has passed the EtherCAT conformance test tool, and its MCU handles network traffic efficiently with on-the-fly processing and a 1 ms cycle time.
The module suits machine builders and integrators working on semiconductor tools, metal forming, packaging, injection moulding, assembly systems, printing machines and robotics. Its removable terminal block, LED indicators and DIN-rail mounting make it straightforward to fit into control cabinets.
Applications
- Semiconductor tools
- Metal forming
- Packaging
- Injection moulding
- Assembly systems
- Printing machines
- Robotics
| Product type: | Analog Input Module |
|---|---|
| Interface: | EtherCAT |
| Protocol: | EtherCAT |
| Analog inputs: | 16 S.E / 8 Diff. |
| Ports: | 2 x RJ-45 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: ±1 kV Class A; Power: ±1 kV Class A |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Channel |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Analog Input | |
| Channels | 8 Differential or 16 Single-ended (Software Selectable) |
| Type | Voltage, Current |
| Range | 0~10V, ±10 V, ±5 V, ±2.5 V, 0~ 20 mA, ±20 mA, 4~20 mA or ±4 ~20 mA (Software selectable) |
| Resolution | 16-bit |
| Accuracy | 0.05% of FSR |
| Sampling Rate | 1k Hz per channel(Max. for 6 channel enable) |
| Overvoltage Protection | ±35 VDC |
| Individual Channel Configuration | Yes (Range & Filter setting function is not supported) |
| Open Wire Detection | No |
| EtherCAT | |
| Ports | 2 x RJ-45 |
| Distance Between Stations | 100 m Max. (100Base-TX) |
| Data Transfer Medium | Ethernet/EtherCAT cable (Min. CAT5), shielded |
| Cycle Time | 1 ms |
| Distributed Clocks | N/A |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 4 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 108 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
