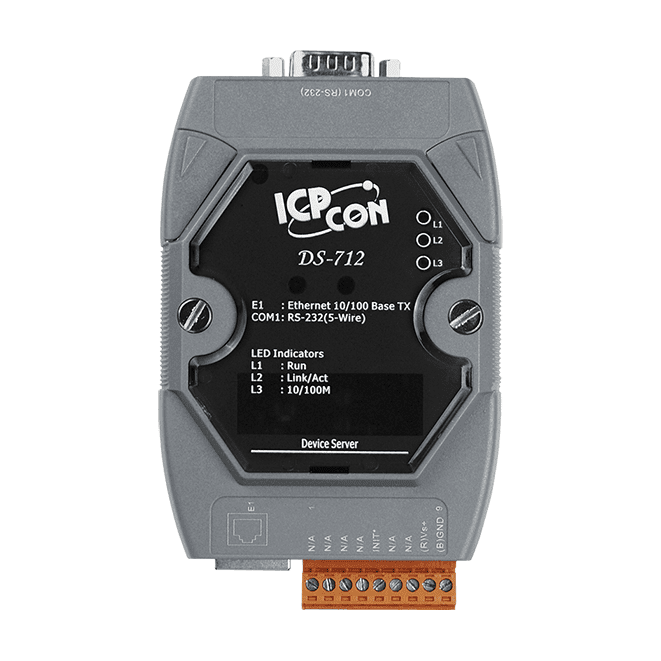

DS-712 Serial-to-Ethernet Device Server, 1-port RS-232 (DB-9)
Serial-to-Ethernet device server with one male DB-9 RS-232 port, bridging serial devices onto a 10/100 Base-TX network through Virtual COM, TCP Server or TCP Client modes.
- One RS-232 port on a male DB-9 connector, with a 5-wire interface and 115200 bps maximum baud rate
- Virtual COM, TCP Server and TCP Client application modes
- VxComm utility supports 32/64-bit Windows 7 SP1, 10, 2012 and 2016
- 10/100 Base-TX Ethernet on an RJ-45 port with auto-negotiation and auto MDI/MDI-X
- Watchdog timer for use in harsh environments, with power reverse polarity protection
- Serial port ESD protection circuit rated at +/-4 kV
1 641,38 kr per stk.
| 1–9 stk. | 1 641,38 kr | |
|---|---|---|
| 10–30 stk. | 1 599,83 kr | −3 % |
| 31+ stk. | 1 568,66 kr | −4 % |
Produktinformasjon "DS-712 Serial-to-Ethernet Device Server, 1-port RS-232 (DB-9)"
The DS-712 CR lets an RS-232 device join an Ethernet network without changing its serial software. Its built-in COM port can be presented as a standard virtual COM port on Windows PCs using the VxComm utility, or the unit can operate as a TCP server or TCP client for direct socket communication.

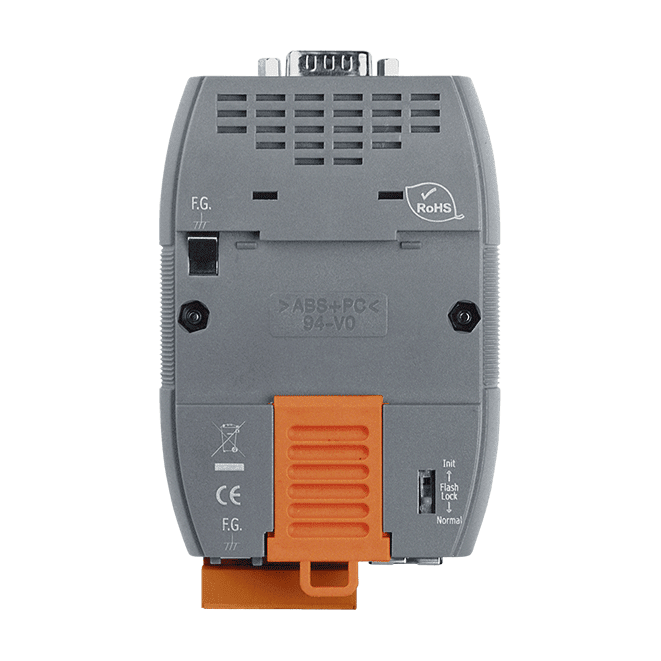

Because the device server is protocol independent, it suits a wide range of network-enabled applications. The DS-712 CR uses a male DB-9 connector with a 5-wire RS-232 port, and it runs from a non-regulated 12 VDC to +48 VDC supply with reverse polarity protection. The plastic housing mounts on a DIN rail or a wall.
Key operating limits include a maximum baud rate of 115200 bps, an operating temperature range of -25 ~ +75 °C and a 5 ~ 90% RH non-condensing humidity rating. The unit is CE, UKCA, FCC, RoHS and WEEE listed.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | 1 x RS-232 (DB-9 male) |
| Protocol: | TCP Client, TCP Server, Virtual COM |
| Ports: | 1 serial, 1 Ethernet (10/100 Base-TX, RJ-45) |
| Power input: | 12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail / Wall |
| Housing: | Plastic |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data return: 40 years. |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power 2 x Ethernet |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd |
| Data Bit | 7, 8: for COM1 |
| Stop Bit | 1: for COM1 |
| Node Address | 254 (max.) |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 2.0 W |
| Powered from Terminal Block | 12 VDC ~ +48 VDC (non-regulated) |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 118 mm x 35 mm (W x H x D) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
