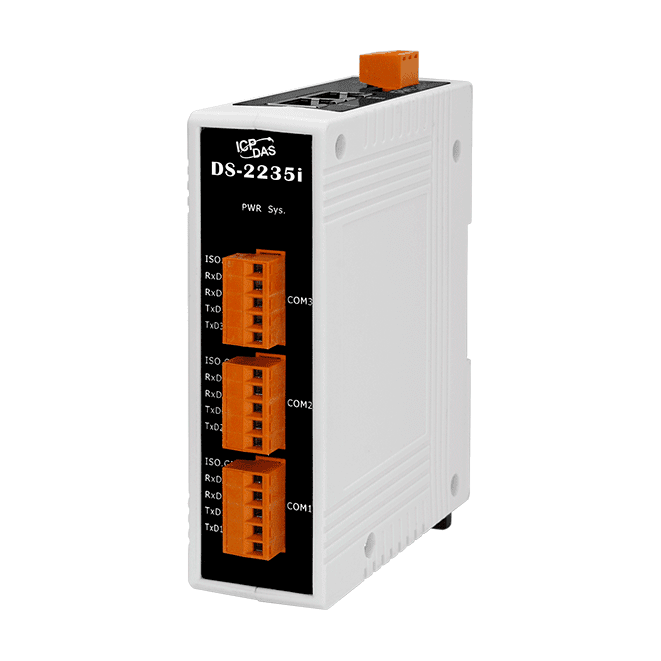

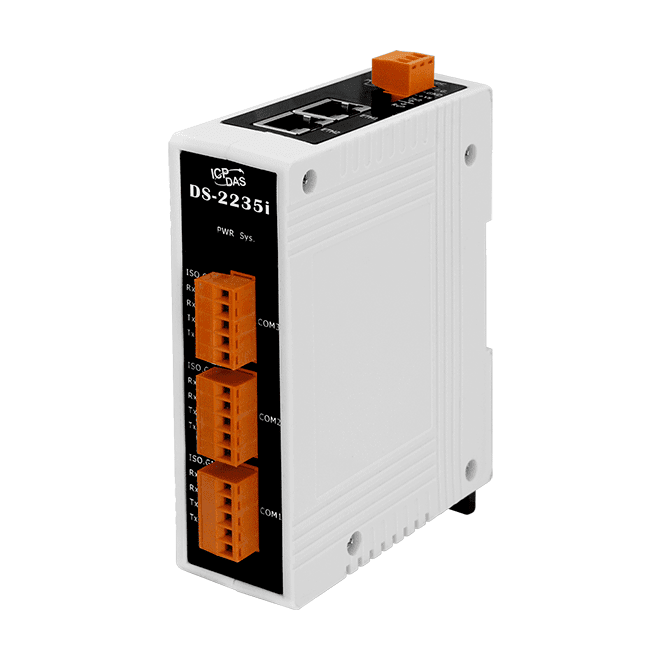

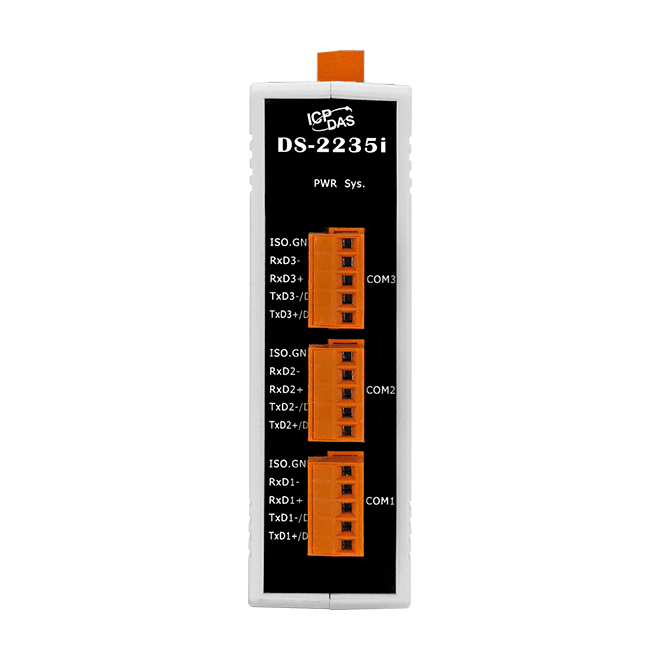

DS-2235i Serial-to-Ethernet Device Server, 3-port Isolated RS-422/485
Serial-to-Ethernet device server with a 2-port Ethernet switch, PoE and three isolated RS-422/485 ports for carrying serial data over TCP/IP.
- Brings RS-422/485 serial devices into Ethernet networks
- Virtual COM, TCP server and TCP client application modes
- VxComm Utility for 32/64-bit Windows 7 SP1/10/2012/2016
- Pair-connection serial-bridge and serial-tunnel operation
- 2-port Ethernet switch with LAN bypass for daisy-chain wiring
- Redundant PoE (IEEE 802.3af, Class 1) and DC power inputs
1 859,54 kr per stk.
| 1–9 stk. | 1 859,54 kr | |
|---|---|---|
| 10–30 stk. | 1 807,60 kr | −3 % |
| 31+ stk. | 1 766,05 kr | −5 % |
Produktinformasjon "DS-2235i Serial-to-Ethernet Device Server, 3-port Isolated RS-422/485"
DS-2235i CR is a serial-to-Ethernet device server that brings RS-422/485 devices onto an IP network. Its three isolated serial ports let several field devices connect through one unit, with data carried over TCP/IP in Virtual COM, TCP server or TCP client mode.
The VxComm Utility can map the serial ports to standard Windows COM ports, so existing software can reach serial devices over the network without modification. Pair-connection (serial-bridge or serial-tunnel) operation links two serial devices across Ethernet. A 2-port switch with LAN bypass supports daisy-chain wiring, and power can come from PoE (IEEE 802.3af, Class 1) or a DC terminal block.
A dual watchdog, made up of a CPU watchdog and a host watchdog, is included to help the module keep operating in demanding environments. The CR ordering code corresponds to the RoHS-marked version of the DS-2235i.
Applications
- Networking legacy RS-422/485 serial devices over TCP/IP
- Serial-bridge and serial-tunnel links between two serial devices
- Remote access to and monitoring of serial devices over Ethernet or the Internet
- Daisy-chained Ethernet device layouts
- Connecting serial devices that lack native Ethernet capability
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | RS-422/485 |
| Ports: | 3 serial, 2 Ethernet |
| PoE: | IEEE 802.3af, Class 1 |
| Isolation: | 3000 VDC signal, 1000 VDC power |
| Power input: | PoE or +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Spesifikasjoner
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| COM Ports | |
| Ports | 3 x RS-485/422 (1000 VDC for Power Isolation, 3000 VDC for Signal Isolation) |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 0.07 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 97 mm x 126 mm x 33 mm (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
