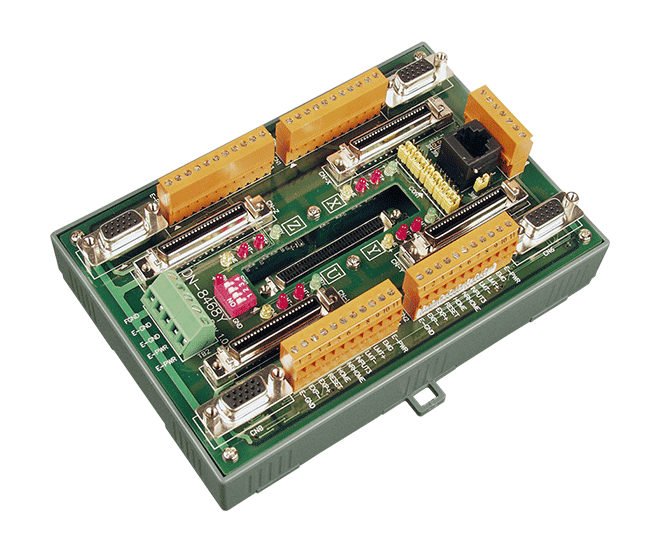

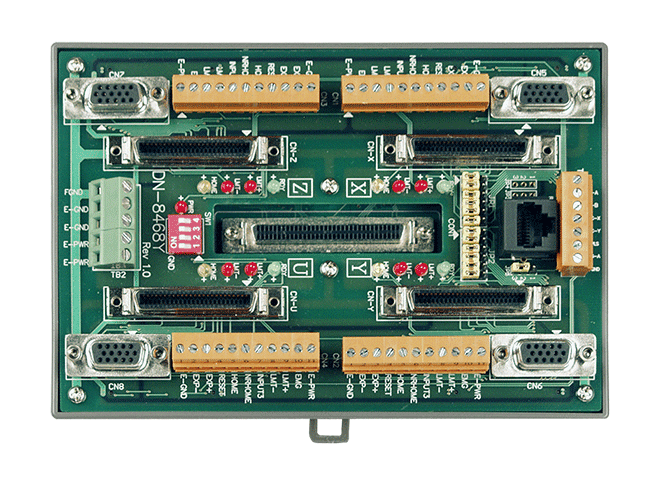

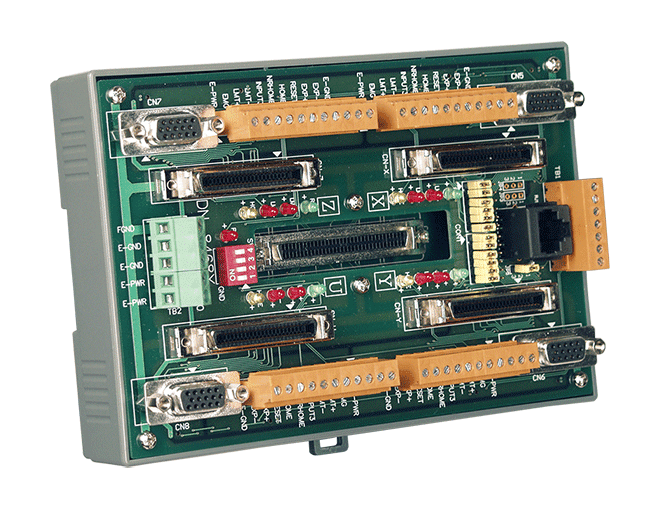

DN-8468YB 4-Axis Stepper/Servo Motion Control Daughter Board for Yaskawa
4-axis pulse-command terminal daughter board for ICP DAS I-8094 and PISO-PS400 motion controllers, designed for Yaskawa Sigma II/III/V servo amplifiers.
- Four axes, each with pulse command outputs, encoder feedback, home, near-home and limit inputs, and a servo-enable output
- High-speed photo-coupling isolation to protect the motion controller
- Designed for pulse command type stepper or servo motors
- Screw terminal connectors that can be interchanged to change axis assignments without rewiring
- Onboard power module accepting 20 ~ 26 VDC input
- Power LED and status LEDs for home and limit switches
2 545,18 kr per stk.
| 1–9 stk. | 2 545,18 kr | |
|---|---|---|
| 10–30 stk. | 2 472,46 kr | −3 % |
| 31+ stk. | 2 420,52 kr | −5 % |
Produktinformasjon "DN-8468YB 4-Axis Stepper/Servo Motion Control Daughter Board for Yaskawa"
The DN-8468YB CR is a 4-axis motion control terminal daughter board for ICP DAS controllers, including the I-8094, I-8094F, I-8094A, I-8094H and PISO-PS400. It is matched to Yaskawa Sigma II, Sigma III and Sigma V servo amplifiers, so engineers can wire pulse outputs, encoder feedback and limit signals to a Yaskawa drive without building their own interface.
Each of the four axis groups carries pulse command lines, encoder feedback, special-purpose inputs for home, near-home and limit switches, and a servo-enable output. Screw terminal connectors simplify wiring, and the connectors can be swapped to reassign axis definitions without rewiring. Onboard photo-coupling isolation helps protect the controller.
An onboard power module generates the voltages needed by the board from a 20 ~ 26 VDC input. Power and status LEDs, including home and limit switch indicators, aid commissioning and fault finding. Where the controller supports FRnet, a dedicated terminal allows high-speed serial I/O expansion.
Applications
- Motion control of Yaskawa Sigma II, Sigma III and Sigma V servo systems
- 4-axis stepper or servo positioning built around ICP DAS motion controllers
| Product type: | Motion control daughter board |
|---|---|
| Interface: | Screw terminal |
| Isolation: | Photo-coupling |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
Spesifikasjoner
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 162 mm X 107 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
