DN-8468MB 4-Axis Stepper/Servo Motion Terminal Board, Mitsubishi MELSERVO-J2
Four-axis pulse-command terminal board for ICP DAS motion controllers, with photo-coupling isolation and wiring for Mitsubishi MELSERVO-J2 servo amplifiers.
- Four-axis pulse command outputs for stepper or servo motors
- High-speed photo-coupling isolation to protect the controller
- Encoder feedback, home, near-home and limit switch inputs per axis
- Interchangeable axis connectors allow axis reassignment without rewiring
- Onboard power module accepts 20 ~ 26 VDC input
- Power LED and status LEDs for home and limit switches
2 545,18 kr per stk.
| 1–9 stk. | 2 545,18 kr | |
|---|---|---|
| 10–30 stk. | 2 472,46 kr | −3 % |
| 31+ stk. | 2 420,52 kr | −5 % |
Produktinformasjon "DN-8468MB 4-Axis Stepper/Servo Motion Terminal Board, Mitsubishi MELSERVO-J2"

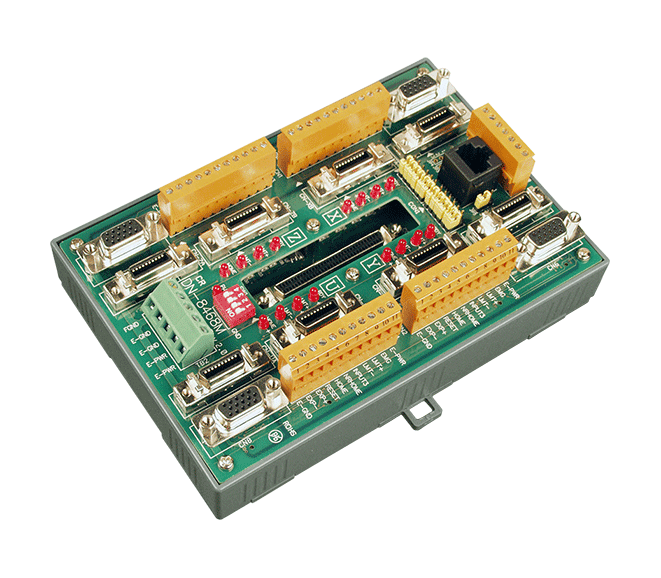

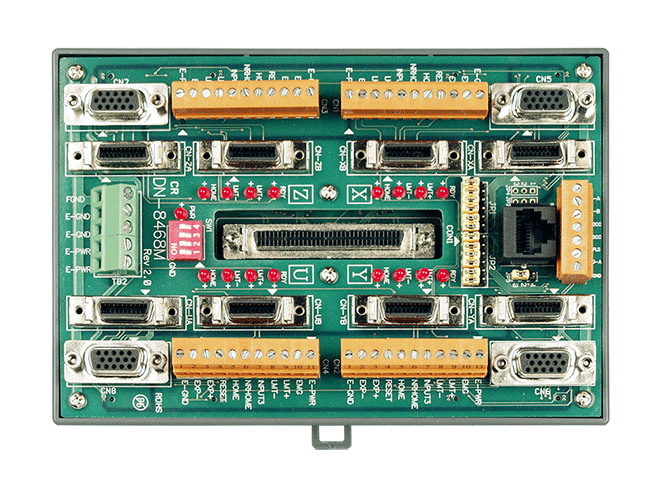

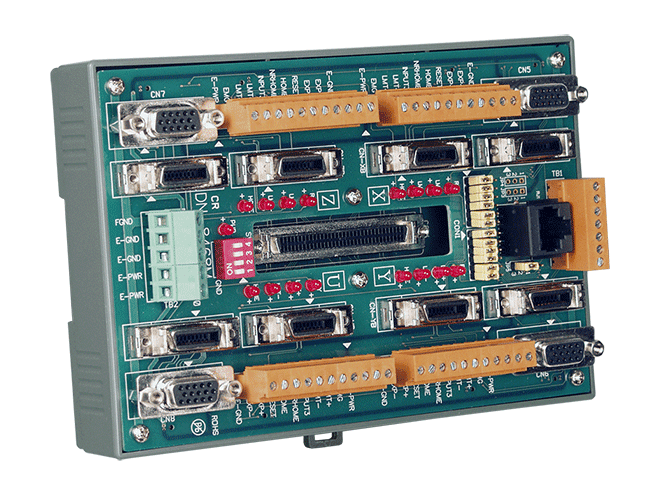

DN-8468MB CR is a four-axis terminal board for stepper and servo motion control. It mounts on ICP DAS 4-axis motion controllers such as the I-8094, I-8094F, I-8094A, I-8094H and PISO-PS400, and is configured for the Mitsubishi MELSERVO-J2 servo amplifier.
Each axis has its own group of signals: pulse command outputs, encoder feedback, home, near-home and limit switch inputs, and a servo-enable output. Signals are brought out on screw terminals, and the axis connectors can be swapped to change the axis assignment without rewiring. Photo-coupling isolation protects the controller from the drive side. An onboard power module, fed from 20 ~ 26 VDC, supplies the board's internal circuitry.
The board measures 162 mm x 107 mm and is rated for an operating range of -20 ~ +75 °C. A power LED and status LEDs for home and limit switches aid commissioning and diagnostics. Where the controller supports FRnet, the board also provides an FRnet terminal for high-speed serial I/O expansion.
Applications
- Four-axis stepper or servo motion control
- Mitsubishi MELSERVO-J2 servo amplifier integration
| Product type: | Motion control terminal board |
|---|---|
| Interface: | FRnet, Screw terminal |
| Isolation: | Photo-coupling |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
Spesifikasjoner
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 162 mm X 107 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
