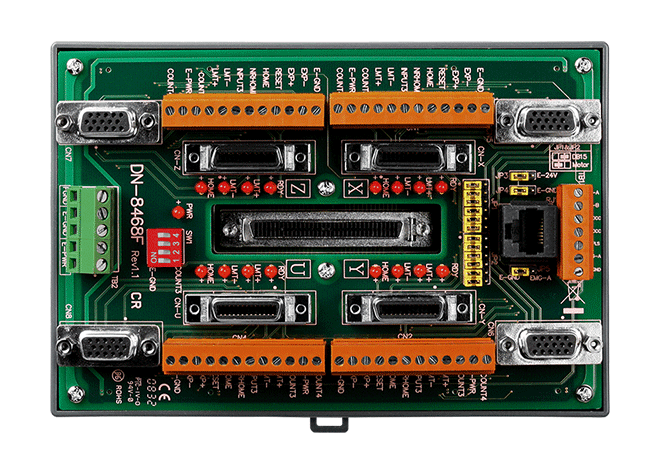

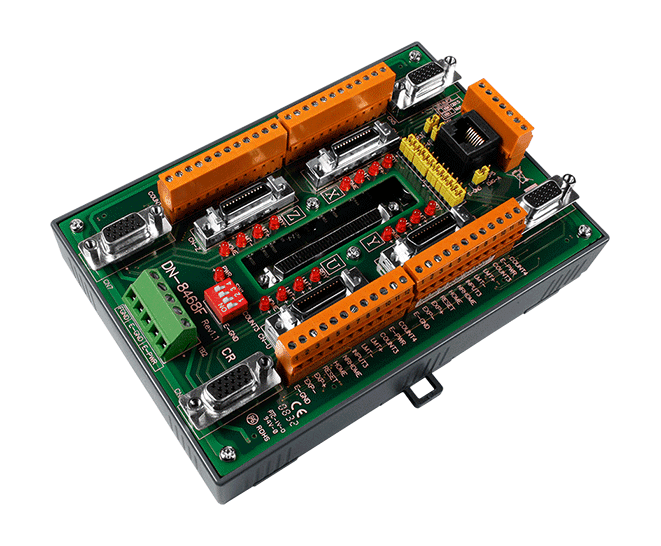

DN-8468FB 4-axis Stepper/Servo Motion Control Terminal Board, Fuji FALDIC-W
4-axis stepper/servo terminal board for Fuji FALDIC-W servo amplifiers, mounting on ICP DAS 4-axis motion controllers with photo-coupled isolation and per-axis signal wiring.
- Photo-coupled high-speed isolation for the controller side of the axis signals
- Pulse command support for stepper or servo motors on each of four axes
- Per-axis home, near-home and limit switch inputs with a servo-enable output
- Interchangeable terminal connectors to reassign axis definitions without rewiring
- Onboard power module accepting 20 ~ 26 VDC input at 0.5 A
- Power LED and status LEDs for home and limit switches
2 545,18 kr per stk.
| 1–9 stk. | 2 545,18 kr | |
|---|---|---|
| 10–30 stk. | 2 472,46 kr | −3 % |
| 31+ stk. | 2 420,52 kr | −5 % |
Produktinformasjon "DN-8468FB 4-axis Stepper/Servo Motion Control Terminal Board, Fuji FALDIC-W"
The DN-8468FB is a daughter board for ICP DAS 4-axis motion controllers, configured for wiring to Fuji FALDIC-W servo amplifiers. It supports pulse command type stepper or servo motors and is intended for use with the I-8094, I-8094F, I-8094A, I-8094H and PISO-PS400 controllers.
Each of the four axes has its own group of screw terminals for pulse output command lines, encoder feedback, home, near-home and limit switch inputs, and a servo-enable output. Signals are photo-coupled isolated on board to help protect the controller. Terminal connectors can be swapped to reassign axis definitions without rewiring.
An onboard power module accepts a 20 ~ 26 VDC input and supplies the voltages needed by the board's circuitry, drawing 12 W at 24 VDC. Status LEDs show power and the home and limit switch states. An FRnet terminal is provided for high-speed serial I/O expansion where the controller supports FRnet. The board is listed for CE, UKCA, FCC, RoHS and WEEE.
Applications
- Four-axis stepper or servo motion control with ICP DAS motion controllers
- Connecting ICP DAS motion controllers to Fuji FALDIC-W servo amplifiers
- Screw terminal wiring of pulse, encoder and limit signals for multi-axis machine control
| Product type: | Terminal board |
|---|---|
| Interface: | Pulse command |
| Isolation: | Photo-coupling |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
Spesifikasjoner
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 162 mm X 107 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
