DN-8368UB 3-axis Stepper/Servo Motion Control Terminal Board
A 3-axis terminal board for pulse command stepper or servo motors, with high speed photo-coupling isolation, designed for ICP DAS 6-axis motion controllers.
- Supports pulse command type stepper or servo motors
- High speed photo-coupling isolation to protect the controller
- Three axes per board; two boards needed for 6-axis control
- Interchangeable terminal connectors change axis definition without rewiring
- Power LED and status LEDs for home and limit switches
- On-board power module supplies voltages for on-board circuitry
2 441,30 kr per stk.
| 1–9 stk. | 2 441,30 kr | |
|---|---|---|
| 10–30 stk. | 2 368,58 kr | −3 % |
| 31+ stk. | 2 316,64 kr | −5 % |
Produktinformasjon "DN-8368UB 3-axis Stepper/Servo Motion Control Terminal Board"

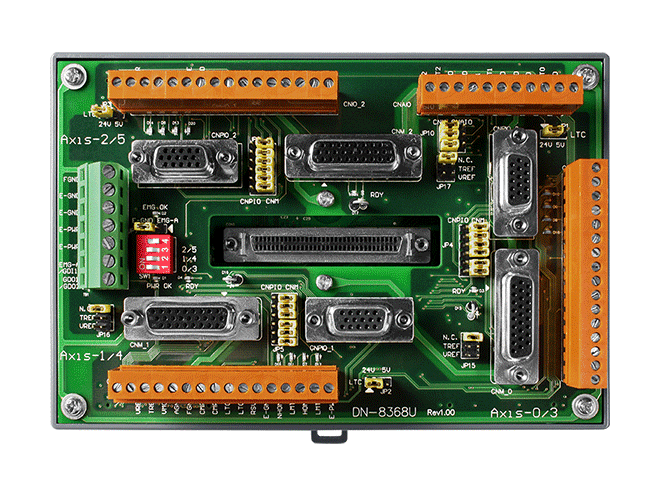

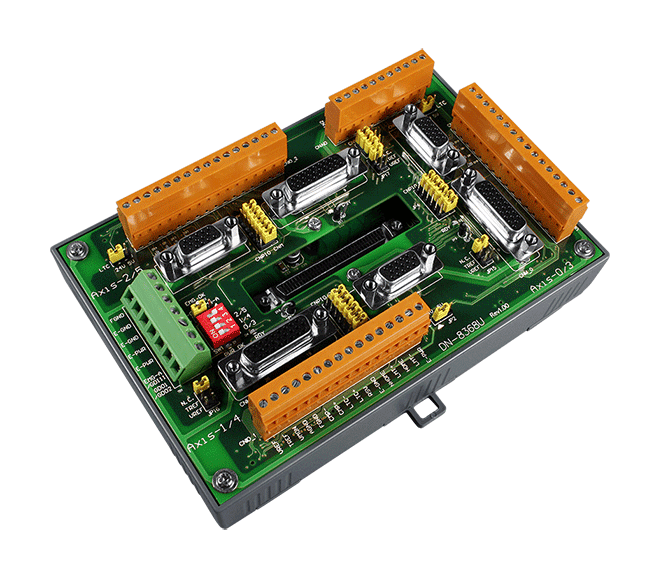

DN-8368UB CR is a 3-axis daughter board for stepper and servo motion control. It is designed for ICP DAS 6-axis motion controllers such as the PISO-PS600, PISO-VS600 and PMDK. Each DN-8368UB CR handles three axes, so two boards are required to support 6-axis control.
Each axis group provides the pulse output command lines, encoder feedback lines, mechanical switch inputs (home, near home and limit switches) and servo input/output signals such as Srv_On, ERC, ALM_RST, RDY, Alarm and INP. High speed photo-coupling isolation on board helps protect the controller. The board also includes an on-board power module that supplies the voltages needed by its circuitry.
The screw terminal wiring uses universal snap-on wiring. The terminal connectors can be swapped to change the axis assignment without rewiring. Power and status LEDs, including home and limit switch indicators, help with commissioning and fault checking.
Applications
- Three-axis stepper or servo motion control with PISO-PS600, PISO-VS600 or PMDK controllers
- Interfacing servo drives via Srv_On, ERC, ALM_RST, RDY, Alarm and INP signals
- Expanding ICP DAS 6-axis motion systems with a second board
| Product type: | Motion control terminal board |
|---|---|
| Interface: | Pulse command |
| Isolation: | High speed photo-coupling |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
Spesifikasjoner
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 162 mm X 107 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
