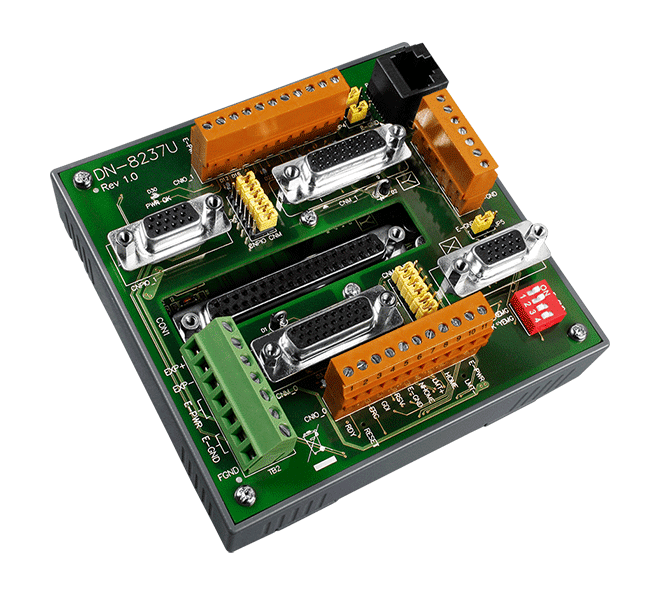

DN-8237UB 2-Axis Stepper/Servo Motion Control Terminal Board
2-axis terminal board for stepper or servo motion control, with snap-on wiring, photo-coupling isolation and an onboard 20 ~ 26 VDC power module for ICP DAS 2-axis motion controllers.
- High-speed photo-coupling isolation on the onboard circuitry to protect the controller
- Pulse command interface for stepper motors or servo motors, with two independent axes
- Per-axis signals: pulse output, encoder feedback, home, near-home and limit-switch inputs, servo-enable output
- Interchangeable terminal connectors allow axis definitions to be swapped without rewiring
- Onboard power module accepting 20 ~ 26 VDC (0.5 A input rating, 12 W consumption at 24 VDC)
- Power LED and status LEDs for home and limit switches
2 181,59 kr per stk.
| 1–9 stk. | 2 181,59 kr | |
|---|---|---|
| 10–30 stk. | 2 108,87 kr | −3 % |
| 31+ stk. | 2 067,31 kr | −5 % |
Produktinformasjon "DN-8237UB 2-Axis Stepper/Servo Motion Control Terminal Board"
The DN-8237UB CR is a 2-axis daughter board that gives ICP DAS 2-axis motion controllers, such as the I-8092F and PISO-PS200, a practical screw-terminal interface for pulse-command stepper or servo drives. It is designed for the universal snap-on wiring configuration, so field signals can be connected without modifying the controller.
Each axis has its own signal group, covering pulse output command lines, encoder feedback, home, near-home and limit-switch inputs, and a servo-enable output. Onboard high-speed photo-coupling isolation helps protect the controller, and status LEDs for power, home and limit switches make commissioning and fault finding easier. Terminal connectors can be swapped to reassign each axis definition without rewiring.
The board includes an onboard power module that accepts 20 ~ 26 VDC and supplies the voltages needed by the on-board circuitry. It suits general purpose motor drivers as well as Mitsubishi and Panasonic motor amplifiers, and offers an FRnet terminal for high-speed serial I/O expansion where the controller supports FRnet.
Applications
- Two-axis stepper motor motion control with pulse command drivers
- Two-axis servo motor motion control with pulse command drivers
- Connecting general purpose, Mitsubishi and Panasonic motor amplifiers to ICP DAS 2-axis motion controllers
- Multi-axis machine positioning with home and limit-switch sensing
| Product type: | Motion control terminal board |
|---|---|
| Interface: | Pulse command |
| Isolation: | Photo-coupling |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
Spesifikasjoner
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 110 mm X 107 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
