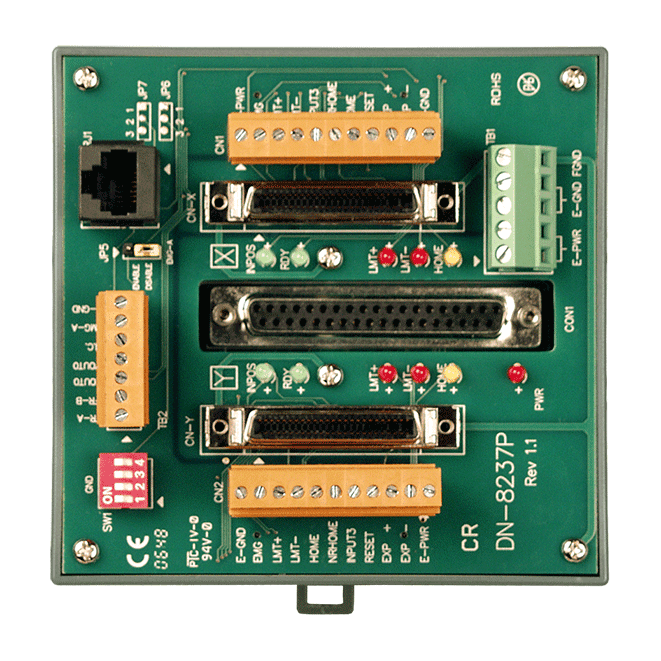

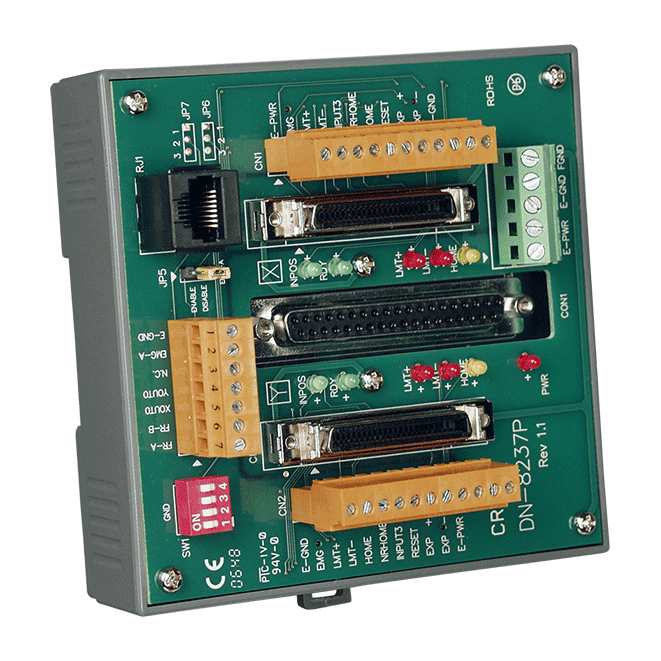

DN-8237PB 2-Axis Motion Control Terminal Board for Panasonic MINAS A4/A5
Two-axis terminal board for pulse-command stepper or servo drives, built for Panasonic MINAS A4/A5 servo amplifiers and ICP DAS 2-axis motion controllers such as the I-8092F and PISO-PS200.
- Two-axis pulse command outputs for stepper or servo motors, with encoder feedback and servo-enable lines per axis
- High-speed photo-coupling isolation to protect the motion controller
- Pluggable terminal connectors allow axis definitions to be changed without rewiring
- Onboard power module accepting 20 ~ 26 VDC (0.5 A, 12 W at 24 VDC)
- Power LED and status LEDs for home and limit switches
- FRnet terminal for high-speed serial I/O expansion when the controller supports FRnet
2 233,53 kr per stk.
| 1–9 stk. | 2 233,53 kr | |
|---|---|---|
| 10–30 stk. | 2 160,81 kr | −3 % |
| 31+ stk. | 2 119,25 kr | −5 % |
Produktinformasjon "DN-8237PB 2-Axis Motion Control Terminal Board for Panasonic MINAS A4/A5"
DN-8237PB CR is a two-axis daughter board that gives pulse-command stepper or servo motion control a screw-terminal interface for wiring. It is designed for ICP DAS 2-axis motion controllers, including the I-8092F and PISO-PS200, and is configured for Panasonic MINAS A4/A5 servo amplifiers.
Each of the four interface groups serves one axis and carries the pulse output command lines, encoder feedback lines, home, near-home and limit switch inputs, and a servo-enable output. Photo-coupling isolation on the board helps protect the controller. The terminal connectors can be swapped to change the axis assignment without rewiring.
An onboard power module accepts a wide 20 ~ 26 VDC input and supplies the voltages needed by the board's other circuitry. Power and status LEDs, including home and limit switch indication, make commissioning and fault checking easier. The board is rated for an operating temperature of -20 ~ +75 °C.
Applications
- Two-axis stepper or servo positioning with ICP DAS 2-axis motion controllers
- Driving Panasonic MINAS A4/A5 servo amplifiers via pulse command
- Wiring and signal distribution for motion systems requiring home, near-home and limit switch inputs
| Product type: | Motion control terminal board |
|---|---|
| Interface: | Screw terminal |
| Isolation: | Photo-coupling |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
Spesifikasjoner
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 110 mm X 107 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
