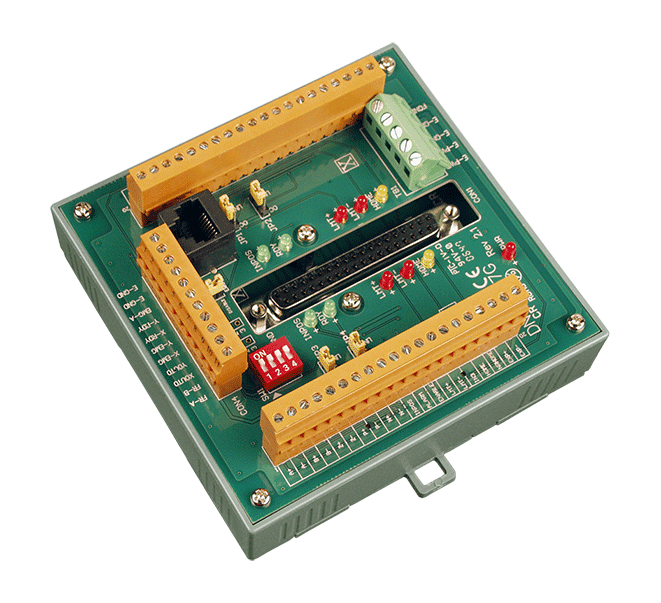

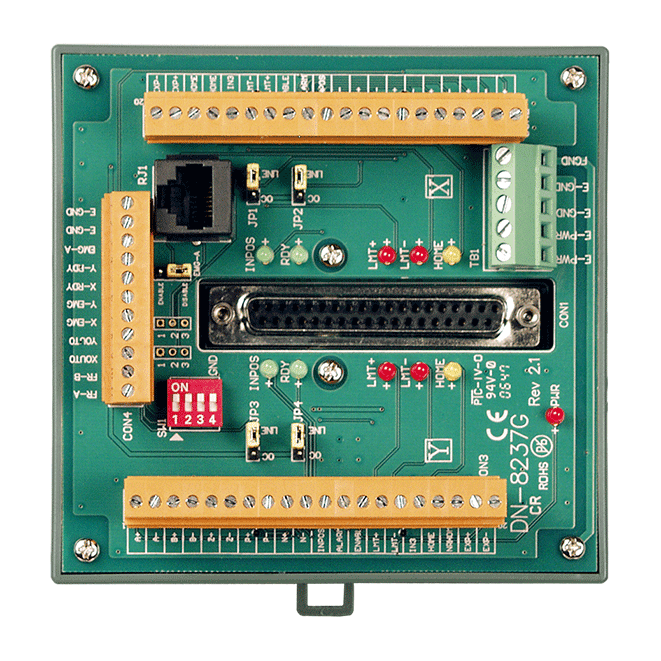

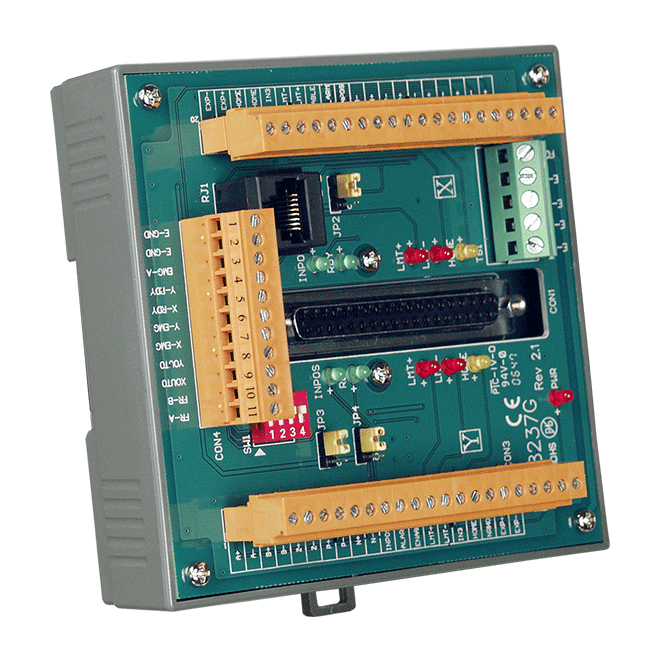

DN-8237GB 2-Axis Stepper/Servo Motion Control Terminal Board
Screw-terminal daughter board for 2-axis pulse-command stepper or servo motion control, with photo-coupling isolation and onboard power for ICP DAS motion controllers.
- High-speed photo-coupling isolation for controller protection
- Pulse command outputs for stepper or servo motors, per axis
- Home, near-home and limit switch inputs plus servo-enable output per axis
- Power LED and status LEDs for home and limit switches
- Connectors can be interchanged to reassign axes without rewiring
- Input range 20 ~ 26 VDC, 0.5 A; consumption 12 W at 24 VDC
2 233,53 kr per stk.
| 1–9 stk. | 2 233,53 kr | |
|---|---|---|
| 10–30 stk. | 2 160,81 kr | −3 % |
| 31+ stk. | 2 119,25 kr | −5 % |
Produktinformasjon "DN-8237GB 2-Axis Stepper/Servo Motion Control Terminal Board"
The DN-8237GB CR is a 2-axis motion control terminal board for ICP DAS controllers such as the I-8092F and PISO-PS200. It breaks out pulse command lines, encoder feedback, home, near-home and limit switch inputs and a servo-enable output for each axis, so stepper or servo drives can be wired directly to the controller.
Each axis has its own group of signals, and the terminal connectors can be swapped to change axis assignment without rewiring. Onboard photo-coupling isolation helps protect the controller, and an integrated power module generates the voltages needed by the board from a 20 ~ 26 VDC supply.
- Suited to general purpose drives, Mitsubishi and Panasonic motor amplifiers.
- FRnet terminal available for high-speed serial I/O expansion where the controller supports FRnet.
Applications
- 2-axis stepper motor motion control
- 2-axis servo motor motion control
- Connecting ICP DAS motion controllers to general purpose, Mitsubishi and Panasonic motor amplifiers
| Product type: | Motion control daughter board |
|---|---|
| Interface: | Screw terminal |
| Isolation: | Photo-coupling |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
Spesifikasjoner
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 110 mm X 107 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
