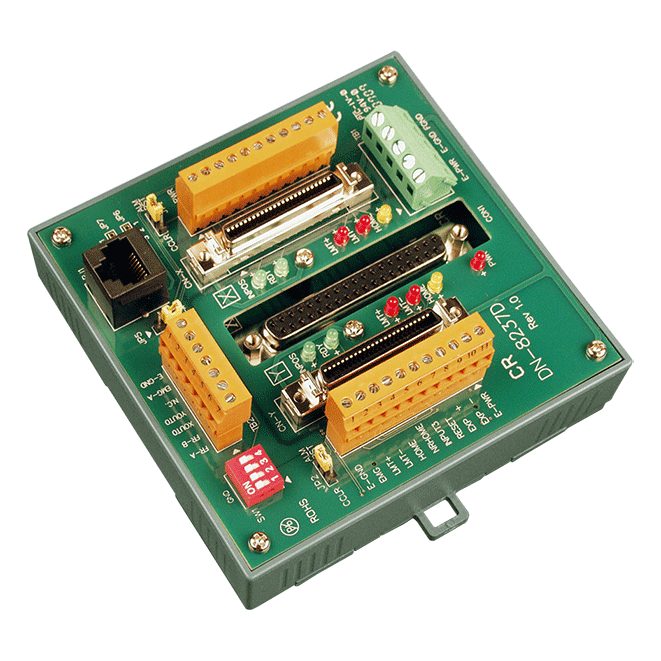

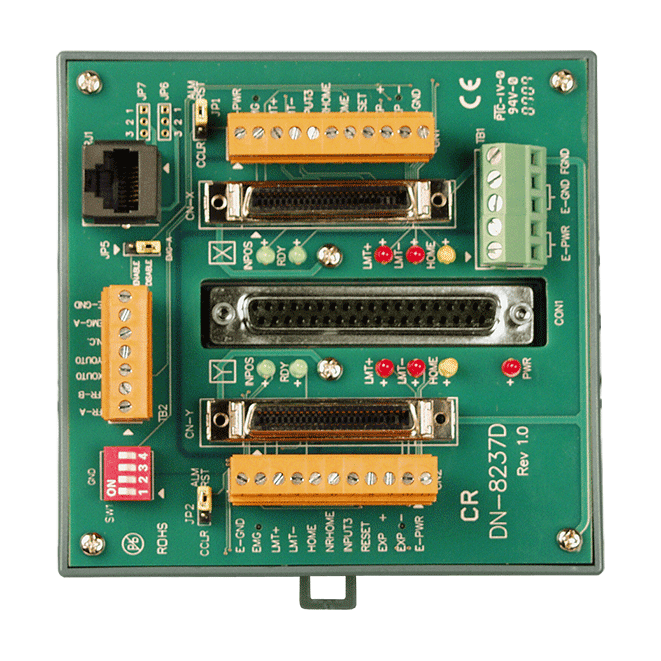

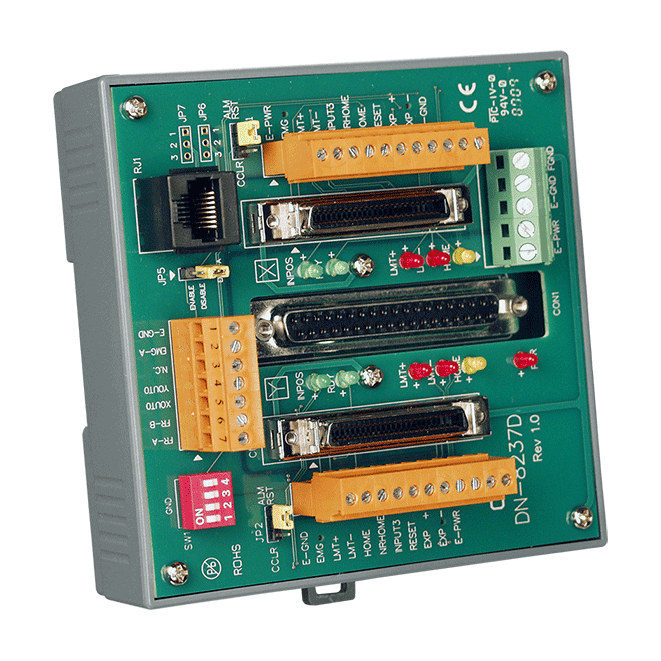

DN-8237DB 2-axis Stepper/Servo Motion Control Daughter Board for Delta ASDA-A
2-axis stepper and servo motion control daughter board with photo-coupling isolation, designed for Delta ASDA-A servo amplifiers and ICP DAS 2-axis motion controllers.
- Photo-coupling isolation on high-speed signals to protect the controller
- Supports pulse-command stepper motors or servo motors
- Per-axis wiring for pulse command, encoder feedback, home, near-home, limit switches and servo-enable
- Interchangeable terminal connectors to reassign axis definitions without rewiring
- Onboard power module with 20 ~ 26 VDC input, 0.5 A
- Power LED and status LEDs for home and limit switches
2 233,53 kr per stk.
| 1–9 stk. | 2 233,53 kr | |
|---|---|---|
| 10–30 stk. | 2 160,81 kr | −3 % |
| 31+ stk. | 2 119,25 kr | −5 % |
Produktinformasjon "DN-8237DB 2-axis Stepper/Servo Motion Control Daughter Board for Delta ASDA-A"
The DN-8237DB is a motion control daughter board that adds two axes of stepper or servo drive interfacing to compatible ICP DAS 2-axis motion controllers, such as the I-8092F and PISO-PS200. It is set up for the Delta ASDA-A servo amplifier and suits engineers who need a clean, isolated wiring point between the controller and the drive.
Each axis has its own group of signals: pulse command lines, encoder feedback, special-purpose inputs for home, near-home and limit switches, and a servo-enable output. Signals terminate on screw terminals, and the axis connectors can be swapped to change which axis is assigned to which group, so the wiring does not need to be redone.
An onboard power module accepts 20 ~ 26 VDC and supplies the voltages needed by the board's own circuitry. Power and status LEDs, including home and limit switch indication, help with commissioning and fault finding.
Applications
- Two-axis stepper or servo positioning with Delta ASDA-A servo amplifiers
- Pulse-command motion control using ICP DAS 2-axis motion controllers
- Connecting encoder feedback and limit or home sensors to a motion controller
| Product type: | Motion control daughter board |
|---|---|
| Interface: | FRnet, Screw terminal |
| Isolation: | Photo-coupling |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
Spesifikasjoner
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 110 mm X 107 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Spesifikasjoner som oppgitt av produsenten. Med forbehold om endringer.
